Ore Grinding Mill Ball Mill Equipment For Fine Grinding And Preparation Of Raw Materials
1. Ore Grinding Mill- Ball Mill Basic Introduction
The ball mill is the core grinding equipment in the mining machinery industry. Through the impact and grinding effects produced by the rotating grinding media (steel balls, steel segments, etc.) inside the cylinder, it crushes and grinds mined ores to a suitable particle size, laying a foundation for subsequent mineral processing and useful mineral extraction. As a key piece of equipment in the mineral processing production line, the performance of the ball mill directly determines the ore grinding efficiency, finished product particle size and overall production capacity. It is widely suitable for the processing of various metallic and non-metallic ores, and is an essential equipment for mining enterprises to realize large-scale production.
2. Ore Grinding Mill- Ball Mill Scope of Application
Our ball mills cover a full range of mining scenarios, with core application areas including:
(1)Metallic ore processing production lines: Grinding of various metallic ores including iron, copper, aluminum, gold, silver, manganese, chromium, etc.
(2)Non-metallic ore processing: Fine grinding of non-metallic ores such as limestone, talc, graphite, barite and quartz, suitable for raw material preparation in building materials, chemical, metallurgical and other industries.
(3)Large-scale production of large mining enterprises: Adaptable to different mining modes such as open-pit mines, underground mines and tailings reuse. It can be used as a single machine or matched with crushers, flotation machines, magnetic separators and other equipment to form a complete mineral processing line.
(4)Customized demand for small and medium-sized mines: Support customized equipment specifications according to ore reserves and capacity requirements to meet the personalized production needs of mining enterprises of different scales.
3. Ore Grinding Mill- Ball Mill Product parameters
| SPEC |
Cylinder rotation speed |
Ball loading capacity |
Feed particle size |
Discharge particle size |
Output |
Motor power |
Total weight |
| (r/min) |
(t) |
(mm) |
(mm) |
(t/h) |
(kw) |
(t) |
| Ф900×1800 |
36-38 |
1.5 |
<20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
| Ф900×3000 |
36 |
2.7 |
<20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
| Ф1200×2400 |
36 |
3 |
<25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
| Ф1200×3000 |
36 |
3.5 |
<25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
| Ф1200×4500 |
32.4 |
5 |
<25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
| Ф1500×3000 |
29.7 |
7.5 |
<25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
| Ф1500×4500 |
27 |
11 |
<25 |
0.074-0.4 |
3-6 |
110 |
22 |
| Ф1500×5700 |
28 |
12 |
<25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
| Ф1830×3000 |
25.4 |
11 |
<25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
| Ф1830×4500 |
25.4 |
15 |
<25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
| Ф1830×6400 |
24.1 |
21 |
<25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
| Ф1830×7000 |
24.1 |
23 |
<25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
| Ф2100×3000 |
23.7 |
15 |
<25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
| Ф2100×4500 |
23.7 |
24 |
<25 |
0.074-0.4 |
8-43 |
245 |
56 |
| Ф2100×7000 |
23.7 |
26 |
<25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
| Ф2200×4500 |
21.5 |
27 |
<25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
| Ф2200×6500 |
21.7 |
35 |
<25 |
0.074-0.4 |
14-26 |
380 |
61 |
| Ф2200×7000 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
| Ф2200×7500 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
| Ф2400×3000 |
21 |
23 |
<25 |
0.074-0.4 |
7-50 |
245 |
58 |
| Ф2400×4500 |
21 |
30 |
<25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
| Ф2700×4000 |
20.7 |
40 |
<25 |
0.074-0.4 |
22-80 |
380 |
95 |
| Ф2700×4500 |
20.7 |
48 |
<25 |
0.074-0.4 |
26-90 |
480 |
102 |
| Ф3200×4500 |
18 |
65 |
<25 |
0.074-0.4 |
Determined by process conditions |
630 |
149 |
| Ф3600×4500 |
17 |
90 |
<25 |
0.074-0.4 |
Determined by process conditions |
850 |
169 |
| Ф3600×6000 |
17 |
110 |
<25 |
0.074-0.4 |
Determined by process conditions |
1250 |
198 |
| Ф3600×8500 |
18 |
131 |
<25 |
0.074-0.4 |
45.8-256 |
1800 |
260 |
| Ф4000×5000 |
16.9 |
121 |
<25 |
0.074-0.4 |
45-208 |
1500 |
230 |
| Ф4000×6000 |
16.9 |
146 |
<25 |
0.074-0.4 |
65-248 |
1600 |
242 |
| Ф4000×6700 |
16.9 |
149 |
<25 |
0.074-0.4 |
75-252 |
1800 |
249 |
| Ф4500×6400 |
15.6 |
172 |
<25 |
0.074-0.4 |
84-306 |
2000 |
280 |
| Ф5030×6400 |
14.4 |
216 |
<25 |
0.074-0.4 |
98-386 |
2500 |
320 |
| Ф5030×8300 |
14.4 |
266 |
<25 |
0.074-0.4 |
118-500 |
3300 |
403 |
| Ф5500×8500 |
13.8 |
338 |
<25 |
0.074-0.4 |
148-615 |
4500 |
525 |

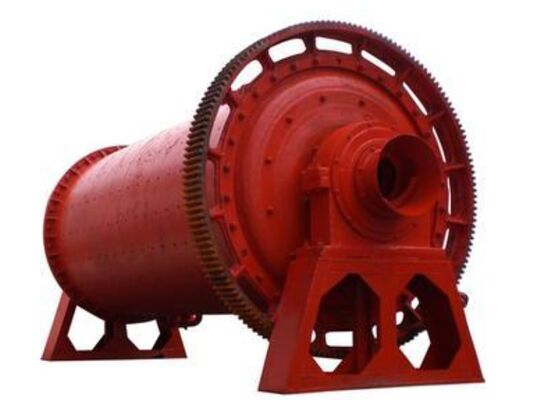

Ore Grinding Mill Ball Mill Equipment For Fine Grinding And Preparation Of Raw Materials

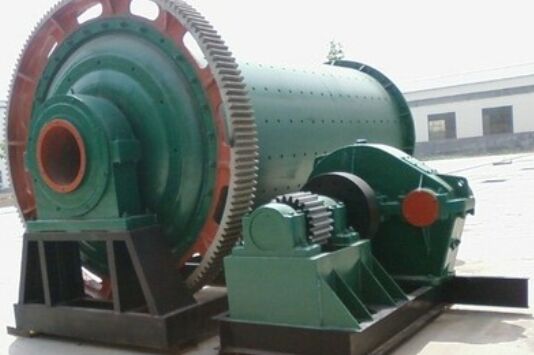

Ore Grinding Mill Ball Mill Equipment For Fine Grinding And Preparation Of Raw Materials
