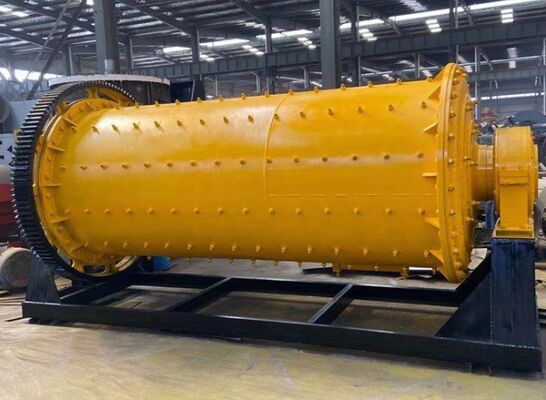

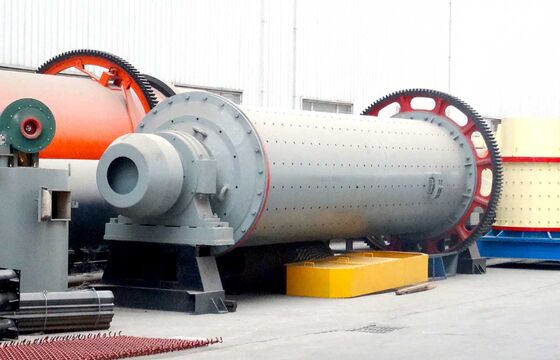

Advanced Ore Grinding Mill Ball Mill – Reliable Grinding Equipment For Mining Concentration Plants
1. Ore Grinding Mill- Ball Mill Product Advantages
(1)High efficiency and wear resistance, reducing loss: The cylinder is made of high-strength wear-resistant steel plate, lined with wear-resistant rubber or high-manganese steel material, and the service life is extended by more than 30% compared with ordinary equipment. The grinding media adopt high-chromium alloy material with high hardness and strong wear resistance, reducing equipment downtime and maintenance frequency, and lowering long-term operating costs.
(2)Energy saving and environmental protection: Equipped with a variable frequency speed control system, which can accurately adjust the cylinder speed according to ore grinding requirements, saving 15%-20% energy compared with traditional ball mills. The machine has excellent sealing performance, reducing dust overflow and noise pollution, meeting the strict environmental protection requirements of mining operations.
(3)Stable and reliable, strong adaptability: Adopt high-precision bearings and cylinder structure, running smoothly without severe vibration, adaptable to mine sites at different altitudes and climates. The equipment has a simple structure, few wearing parts and convenient maintenance, reducing the difficulty of equipment operation and maintenance for mining enterprises.
(4)Flexible customization, controllable precision: Support customized design of core parameters such as cylinder diameter, length, grinding media filling volume and discharge method, which can accurately control the finished product particle size (0.074–0.8mm) to meet the precision requirements of different ore processing technologies.
2. Ore Grinding Mill- Ball Mill Welcome to Inquiry and Purchase
With years of deep cultivation in the mining machinery industry, we have always adhered to the core philosophy of "Quality-oriented, Customer First". Each ball mill undergoes strict factory testing to ensure stable performance and reliable quality. Whether it is a large-scale mining project or a customized demand for small and medium-sized mining enterprises, we can provide suitable solutions and comprehensive after-sales services — including on-site installation guidance, equipment commissioning, after-sales maintenance and spare parts supply.
We sincerely invite mining enterprises, engineering contractors and mining investors to consult for quotations and field inspections. With professional technology, high-quality products and attentive service, we will help your mining project land efficiently and achieve greater benefits!
reducing the difficulty of equipment operation and maintenance for mining enterprises.
3. Ore Grinding Mill- Ball Mill Product parameters
| SPEC |
Cylinder rotation speed |
Ball loading capacity |
Feed particle size |
Discharge particle size |
Output |
Motor power |
Total weight |
| (r/min) |
(t) |
(mm) |
(mm) |
(t/h) |
(kw) |
(t) |
| Ф900×1800 |
36-38 |
1.5 |
<20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
| Ф900×3000 |
36 |
2.7 |
<20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
| Ф1200×2400 |
36 |
3 |
<25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
| Ф1200×3000 |
36 |
3.5 |
<25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
| Ф1200×4500 |
32.4 |
5 |
<25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
| Ф1500×3000 |
29.7 |
7.5 |
<25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
| Ф1500×4500 |
27 |
11 |
<25 |
0.074-0.4 |
3-6 |
110 |
22 |
| Ф1500×5700 |
28 |
12 |
<25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
| Ф1830×3000 |
25.4 |
11 |
<25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
| Ф1830×4500 |
25.4 |
15 |
<25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
| Ф1830×6400 |
24.1 |
21 |
<25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
| Ф1830×7000 |
24.1 |
23 |
<25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
| Ф2100×3000 |
23.7 |
15 |
<25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
| Ф2100×4500 |
23.7 |
24 |
<25 |
0.074-0.4 |
8-43 |
245 |
56 |
| Ф2100×7000 |
23.7 |
26 |
<25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
| Ф2200×4500 |
21.5 |
27 |
<25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
| Ф2200×6500 |
21.7 |
35 |
<25 |
0.074-0.4 |
14-26 |
380 |
61 |
| Ф2200×7000 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
| Ф2200×7500 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
| Ф2400×3000 |
21 |
23 |
<25 |
0.074-0.4 |
7-50 |
245 |
58 |
| Ф2400×4500 |
21 |
30 |
<25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
| Ф2700×4000 |
20.7 |
40 |
<25 |
0.074-0.4 |
22-80 |
380 |
95 |
| Ф2700×4500 |
20.7 |
48 |
<25 |
0.074-0.4 |
26-90 |
480 |
102 |
| Ф3200×4500 |
18 |
65 |
<25 |
0.074-0.4 |
Determined by process conditions |
630 |
149 |
| Ф3600×4500 |
17 |
90 |
<25 |
0.074-0.4 |
Determined by process conditions |
850 |
169 |
| Ф3600×6000 |
17 |
110 |
<25 |
0.074-0.4 |
Determined by process conditions |
1250 |
198 |
| Ф3600×8500 |
18 |
131 |
<25 |
0.074-0.4 |
45.8-256 |
1800 |
260 |
| Ф4000×5000 |
16.9 |
121 |
<25 |
0.074-0.4 |
45-208 |
1500 |
230 |
| Ф4000×6000 |
16.9 |
146 |
<25 |
0.074-0.4 |
65-248 |
1600 |
242 |
| Ф4000×6700 |
16.9 |
149 |
<25 |
0.074-0.4 |
75-252 |
1800 |
249 |
| Ф4500×6400 |
15.6 |
172 |
<25 |
0.074-0.4 |
84-306 |
2000 |
280 |
| Ф5030×6400 |
14.4 |
216 |
<25 |
0.074-0.4 |
98-386 |
2500 |
320 |
| Ф5030×8300 |
14.4 |
266 |
<25 |
0.074-0.4 |
118-500 |
3300 |
403 |
| Ф5500×8500 |
13.8 |
338 |
<25 |
0.074-0.4 |
148-615 |
4500 |
525 |
