High Efficiency Ore Grinding Mill Ball Mill for Mining and Mineral Processing
1. Ore Grinding Mill- Ball Mill Types and Applicable Ores
According to the structural form, grinding process and application scenarios, our main three types of core ball mills are precisely adapted to different ore characteristics:
Grid Type Ball Mill: Suitable for metallic sulfide ores such as iron ore, copper ore, lead-zinc ore. Its forced discharge feature can quickly separate coarse-grained grinding media, making it ideal for ores requiring high grinding efficiency and relatively coarse finished particle size, especially for coarse grinding operations.
Overflow Type Ball Mill: Suitable for non-metallic ores such as limestone, talc, graphite, as well as precious metal ores like gold ore and silver ore that require fine grinding. Without a forced discharge structure, it can achieve fine grinding of ores to meet the needs of high-purity mineral extraction.
Horizontal Ball Mill: Suitable for high-hardness or high-density ores such as manganese ore, chromium ore, barite. It features a stable cylinder structure and large filling capacity of grinding media, enabling efficient grinding of high-hardness and high-value-added ores.
2. Ore Grinding Mill- Ball Mill Scope of Application
Our ball mills cover a full range of mining scenarios, with core application areas including:
(1)Metallic ore processing production lines: Grinding of various metallic ores including iron, copper, aluminum, gold, silver, manganese, chromium, etc.
(2)Non-metallic ore processing: Fine grinding of non-metallic ores such as limestone, talc, graphite, barite and quartz, suitable for raw material preparation in building materials, chemical, metallurgical and other industries.
3. Ore Grinding Mill- Ball Mill Product Advantages
(1)High efficiency and wear resistance, reducing loss: The cylinder is made of high-strength wear-resistant steel plate, lined with wear-resistant rubber or high-manganese steel material, and the service life is extended by more than 30% compared with ordinary equipment. The grinding media adopt high-chromium alloy material with high hardness and strong wear resistance, reducing equipment downtime and maintenance frequency, and lowering long-term operating costs.
(2)Energy saving and environmental protection: Equipped with a variable frequency speed control system, which can accurately adjust the cylinder speed according to ore grinding requirements, saving 15%-20% energy compared with traditional ball mills. The machine has excellent sealing performance, reducing dust overflow and noise pollution, meeting the strict environmental protection requirements of mining operations.
3. Ore Grinding Mill- Ball Mill Product parameters
| SPEC |
Cylinder rotation speed |
Ball loading capacity |
Feed particle size |
Discharge particle size |
Output |
Motor power |
Total weight |
| (r/min) |
(t) |
(mm) |
(mm) |
(t/h) |
(kw) |
(t) |
| Ф900×1800 |
36-38 |
1.5 |
<20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
| Ф900×3000 |
36 |
2.7 |
<20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
| Ф1200×2400 |
36 |
3 |
<25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
| Ф1200×3000 |
36 |
3.5 |
<25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
| Ф1200×4500 |
32.4 |
5 |
<25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
| Ф1500×3000 |
29.7 |
7.5 |
<25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
| Ф1500×4500 |
27 |
11 |
<25 |
0.074-0.4 |
3-6 |
110 |
22 |
| Ф1500×5700 |
28 |
12 |
<25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
| Ф1830×3000 |
25.4 |
11 |
<25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
| Ф1830×4500 |
25.4 |
15 |
<25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
| Ф1830×6400 |
24.1 |
21 |
<25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
| Ф1830×7000 |
24.1 |
23 |
<25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
| Ф2100×3000 |
23.7 |
15 |
<25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
| Ф2100×4500 |
23.7 |
24 |
<25 |
0.074-0.4 |
8-43 |
245 |
56 |
| Ф2100×7000 |
23.7 |
26 |
<25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
| Ф2200×4500 |
21.5 |
27 |
<25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
| Ф2200×6500 |
21.7 |
35 |
<25 |
0.074-0.4 |
14-26 |
380 |
61 |
| Ф2200×7000 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
| Ф2200×7500 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
| Ф2400×3000 |
21 |
23 |
<25 |
0.074-0.4 |
7-50 |
245 |
58 |
| Ф2400×4500 |
21 |
30 |
<25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
| Ф2700×4000 |
20.7 |
40 |
<25 |
0.074-0.4 |
22-80 |
380 |
95 |
| Ф2700×4500 |
20.7 |
48 |
<25 |
0.074-0.4 |
26-90 |
480 |
102 |
| Ф3200×4500 |
18 |
65 |
<25 |
0.074-0.4 |
Determined by process conditions |
630 |
149 |
| Ф3600×4500 |
17 |
90 |
<25 |
0.074-0.4 |
Determined by process conditions |
850 |
169 |
| Ф3600×6000 |
17 |
110 |
<25 |
0.074-0.4 |
Determined by process conditions |
1250 |
198 |
| Ф3600×8500 |
18 |
131 |
<25 |
0.074-0.4 |
45.8-256 |
1800 |
260 |
| Ф4000×5000 |
16.9 |
121 |
<25 |
0.074-0.4 |
45-208 |
1500 |
230 |
| Ф4000×6000 |
16.9 |
146 |
<25 |
0.074-0.4 |
65-248 |
1600 |
242 |
| Ф4000×6700 |
16.9 |
149 |
<25 |
0.074-0.4 |
75-252 |
1800 |
249 |
| Ф4500×6400 |
15.6 |
172 |
<25 |
0.074-0.4 |
84-306 |
2000 |
280 |
| Ф5030×6400 |
14.4 |
216 |
<25 |
0.074-0.4 |
98-386 |
2500 |
320 |
| Ф5030×8300 |
14.4 |
266 |
<25 |
0.074-0.4 |
118-500 |
3300 |
403 |
| Ф5500×8500 |
13.8 |
338 |
<25 |
0.074-0.4 |
148-615 |
4500 |
525 |

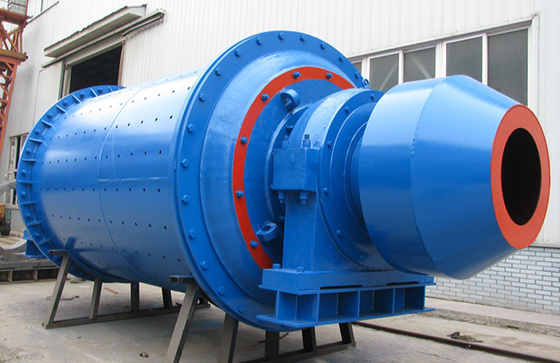

High Efficiency Ore Grinding Mill Ball Mill for Mining and Mineral Processing

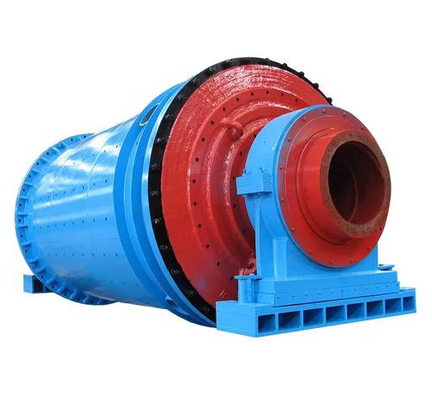

High Efficiency Ore Grinding Mill Ball Mill for Mining and Mineral Processing
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
