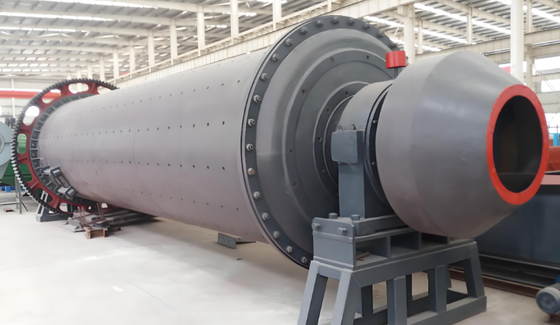

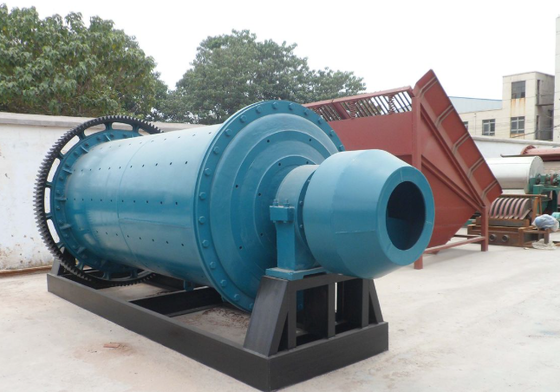

Professional Mining Equipment Ore Grinding Mill Ball Mill With High Wear Resistance And Long Service Life
1.Ore Grinding Mill- Ball Mill Basic Introduction
The ball mill is the core grinding equipment in the mining machinery industry. Through the impact and grinding effects produced by the rotating grinding media (steel balls, steel segments, etc.) inside the cylinder, it crushes and grinds mined ores to a suitable particle size, laying a foundation for subsequent mineral processing and useful mineral extraction. As a key piece of equipment in the mineral processing production line, the performance of the ball mill directly determines the ore grinding efficiency, finished product particle size and overall production capacity. It is widely suitable for the processing of various metallic and non-metallic ores, and is an essential equipment for mining enterprises to realize large-scale production.
2.Ore Grinding Mill- Ball Mill Types and Applicable Ores
According to the structural form, grinding process and application scenarios, our main three types of core ball mills are precisely adapted to different ore characteristics:
Grid Type Ball Mill: Suitable for metallic sulfide ores such as iron ore, copper ore, lead-zinc ore. Its forced discharge feature can quickly separate coarse-grained grinding media, making it ideal for ores requiring high grinding efficiency and relatively coarse finished particle size, especially for coarse grinding operations.
Overflow Type Ball Mill: Suitable for non-metallic ores such as limestone, talc, graphite, as well as precious metal ores like gold ore and silver ore that require fine grinding. Without a forced discharge structure, it can achieve fine grinding of ores to meet the needs of high-purity mineral extraction.
Horizontal Ball Mill: Suitable for high-hardness or high-density ores such as manganese ore, chromium ore, barite. It features a stable cylinder structure and large filling capacity of grinding media, enabling efficient grinding of high-hardness and high-value-added ores.
3. Ore Grinding Mill- Ball Mill Welcome to Inquiry and Purchase
With years of deep cultivation in the mining machinery industry, we have always adhered to the core philosophy of "Quality-oriented, Customer First". Each ball mill undergoes strict factory testing to ensure stable performance and reliable quality. Whether it is a large-scale mining project or a customized demand for small and medium-sized mining enterprises, we can provide suitable solutions and comprehensive after-sales services — including on-site installation guidance, equipment commissioning, after-sales maintenance and spare parts supply.
We sincerely invite mining enterprises, engineering contractors and mining investors to consult for quotations and field inspections. With professional technology, high-quality products and attentive service, we will help your mining project land efficiently and achieve greater benefits!
4. Ore Grinding Mill- Ball Mill Product parameters
| SPEC |
Cylinder rotation speed |
Ball loading capacity |
Feed particle size |
Discharge particle size |
Output |
Motor power |
Total weight |
| (r/min) |
(t) |
(mm) |
(mm) |
(t/h) |
(kw) |
(t) |
| Ф900×1800 |
36-38 |
1.5 |
<20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
| Ф900×3000 |
36 |
2.7 |
<20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
| Ф1200×2400 |
36 |
3 |
<25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
| Ф1200×3000 |
36 |
3.5 |
<25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
| Ф1200×4500 |
32.4 |
5 |
<25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
| Ф1500×3000 |
29.7 |
7.5 |
<25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
| Ф1500×4500 |
27 |
11 |
<25 |
0.074-0.4 |
3-6 |
110 |
22 |
| Ф1500×5700 |
28 |
12 |
<25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
| Ф1830×3000 |
25.4 |
11 |
<25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
| Ф1830×4500 |
25.4 |
15 |
<25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
| Ф1830×6400 |
24.1 |
21 |
<25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
| Ф1830×7000 |
24.1 |
23 |
<25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
| Ф2100×3000 |
23.7 |
15 |
<25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
| Ф2100×4500 |
23.7 |
24 |
<25 |
0.074-0.4 |
8-43 |
245 |
56 |
| Ф2100×7000 |
23.7 |
26 |
<25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
| Ф2200×4500 |
21.5 |
27 |
<25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
| Ф2200×6500 |
21.7 |
35 |
<25 |
0.074-0.4 |
14-26 |
380 |
61 |
| Ф2200×7000 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
| Ф2200×7500 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
| Ф2400×3000 |
21 |
23 |
<25 |
0.074-0.4 |
7-50 |
245 |
58 |
| Ф2400×4500 |
21 |
30 |
<25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
| Ф2700×4000 |
20.7 |
40 |
<25 |
0.074-0.4 |
22-80 |
380 |
95 |
| Ф2700×4500 |
20.7 |
48 |
<25 |
0.074-0.4 |
26-90 |
480 |
102 |
Professional Mining Equipment Ore Grinding Mill Ball Mill With High Wear Resistance And Long Service Life
Professional Mining Equipment Ore Grinding Mill Ball Mill With High Wear Resistance And Long Service Life
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
We are a professional manufacturer of mine machines,construction machines, and parts with many years experience.
Mining Machinery: grinding mill, crusher, screen, feeder, classifier, magnetic separator, mining hoist and other mineral processing machines.
Construction machinery: rotary kiln, cement mill, crushing plant machines, concrete block making machines, concrete mixing plant machines, wheel loader, excavator, bulldozer, road roller etc.
Metallurgical machinery: straightener, metal mixer, rolling machine, steel converter, blast furnace, dryer, cooler, ball press machine and etc equipment.
Wearing parts:forging and casting parts for mining/construction machinery,etc heavy machinery using.
Crusher parts: liners, hammer, mantle, concave, blow bar.
Mill parts: gears, pinions, liners, end cap, shafts, bearings, bushing,roller shell,
Rotary kiln parts: tyre, support roller, thrust roller, gears and pinions, bushing,bearing.
Hoist parts: liners, bush, shaft, brake, hydraulic station, lubricating station
Screen parts: screen deck, bearings, shafts
Wheel loader, excavator, bulldozer parts: bucket teeth.,Axles.
Big castings and forgings: steel ball, slag pot, rudder horn, rudder stock,refractory brick
Generator: diesel generators, steam turbine generator and hydro turbine generator]]
