1. Basic Equipment Introduction  |  Cement Plant Equipments

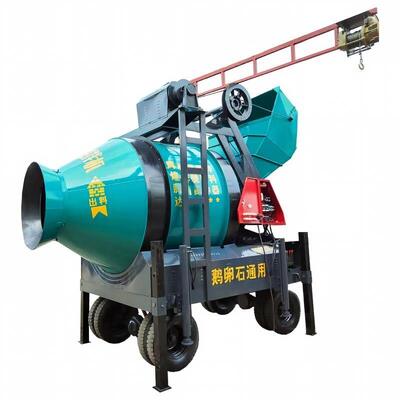

This A2-510 tilted drum concrete mixer is available in three power versions: diesel type, electric type, and dual diesel-electric custom type. The model shown in the picture is a mobile diesel unit equipped with a diesel engine and wire rope automatic lifting hopper. The whole machine is composed of a cylindrical mixing drum and built-in mixing blades. The power unit drives the drum to rotate and tumble to realize uniform mixing of concrete, mortar and sand aggregate mixture. It is equipped with a four-wheel mobile trailer chassis and adopts automatic wire rope feeding and tilted drum discharging design, featuring flexible transfer and labor-saving operation. It is a dedicated mixing equipment for mining supporting projects and field infrastructure construction.

2. Multi-working Condition Adaptation | Cement Plant Equipments

(1)Mining supporting projects: retaining walls in mining areas, floor paving of mining plant areas, mine road maintenance, concrete mixing for temporary underground support;

(2)Field construction without power supply: mountain slope protection, rural roads, farmland water conservancy, remote bridge pile foundation construction. The diesel version is the priority choice for sites without three-phase electricity;

(3)Township civil engineering: rural self-built houses, factory floor paving, enclosure walls, small septic tanks and retaining wall pouring;

(4)Fixed mixing in plant areas: prefabrication yards of mines and small cement component processing. The electric version is more cost-effective for sites with stable power supply;

(5)Emergency repair works: pavement pothole repair, post-disaster reconstruction and short-term sporadic concrete construction.

3. Division by Power & Structure | Cement Plant Equipments

(1)Diesel model with wire rope lifting hopper : Equipped with diesel engine and fully automatic wire rope feeding system, free from power supply restrictions, towable four wheels. Suitable for deep mountain mining areas and field construction sites without electricity.

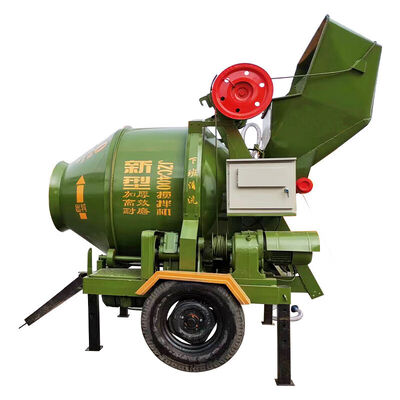

(2)Electric model with wire rope lifting hopper: Identical appearance, drum specification and feeding structure as the diesel version. Power is replaced by 380V industrial motor and electric control box, no fuel consumption and lower running noise. Ideal for factory zones and urban construction sites with power supply.

(3)Custom dual diesel-electric model: Fitted with both diesel unit and electric driving system, allowing free switching between two power modes. One machine covers mountain construction without electricity and fixed mixing in plant areas, perfect for large mines with complex working conditions.

(4)Simple manual feeding model: No automatic wire rope lifting mechanism, materials are fed by manual tipping bucket with lower cost, suitable for sporadic construction with tiny engineering volume.

(5)Fixed electric mixer: Without mobile wheels, installed fixedly for long-term prefabrication processing stations.

4. Outstanding Equipment Highlights | Cement Plant Equipments

(1)Optional dual power supply to fit all kinds of mining sites: Electric version saves cost for powered sites; diesel version works anywhere without electricity; dual-power customization is available for complex working conditions.

(2)Automatic wire rope feeding reduces labor intensity: The hopper lifts and feeds materials automatically without manual carrying, greatly improving mixing and construction efficiency.

(3)Tilted drum design for clean discharging & easy maintenance: The drum can tilt and flip for discharging, leaving minimal concrete residue inside the drum with less blockage and simple daily cleaning.

(4)Four-wheel trailer chassis for convenient transportation: Fitted with wear-resistant mobile wheels, towable by tricycles or tractors, easy to move on mountain roads in mining areas and scattered construction sites.

(5)Thickened wear-resistant mixing drum compatible with hard mine aggregates: The drum wall thickness reaches 6mm with strong anti-abrasion performance, capable of mixing large mine crushed stone up to 60mm in particle size.

(6)Uniform mixing for stable finished product quality: Standard mixing speed of 14rpm, capable of mixing cement of 2 bags per batch to guarantee qualified compactness and strength of concrete.

(7)Robust overall structure with easy maintenance: High versatility of spare parts, longer service life under harsh mining environments with heavy dust and bumpy transportation.

5. Standard Technical Parameters (Universal A2-510 Model) | Cement Plant Equipments

6. Welcome to Enquire & Order | Cement Plant Equipments

Our company specializes in all types of mining machinery and engineering mixing equipment. The full series of A2-510 tilted drum mixers are in sufficient stock, including diesel, electric and dual diesel-electric versions for immediate delivery, with matching wear parts supplied synchronously.

Whether you are a mining enterprise purchasing supporting equipment in bulk or an individual engineer buying a single unit, feel free to contact us for accurate quotations, real machine videos and construction cases in mining sites. Bulk purchases enjoy exclusive discounts. Customers are welcome to visit our factory for on-site machine inspection and test runs. Nationwide logistics delivers machines directly to construction sites with complete after-sales warranty service. New and old customers with demands for concrete mixing equipment are welcome to call or message us for inquiry and orders at any time!
