Cement Plant Equipments Construction Machinery Fixed Bucket Drum Mixer Cement Concrete Mixer Machine For Mine Supporting Project
1. Product Introduction｜Cement Plant Equipments

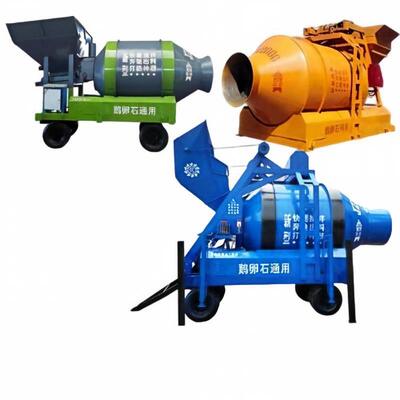

The fixed bucket drum mixer is professional concrete mixing equipment. It is equipped with a cylindrical mixing drum and built-in mixing blades. It can be driven by diesel engines to rotate the drum for fully mixing various construction raw materials. The machine comes with a fixed feeding hopper and can be matched with a spiral conveyor for feeding. Designed to be compatible with pebble aggregates, it delivers stable operation. Widely used for mixing concrete and mortar in various civil engineering projects, it serves as core cement building material mixing equipment for construction works.
2. Product Advantages｜Cement Plant Equipments
(1)The drum mixing structure ensures uniform material mixing, strong adaptability to aggregates such as pebbles and low risk of material blockage.
(2)Fixed hopper feeding structure matched with spiral feeder realizes convenient feeding and higher automation.
(3)Electric drive is standard, and diesel power is optional for sites without stable power supply.
(4)Equipped with moving wheels for flexible relocation; sturdy frame and wear-resistant mixing drum guarantee long service life.
(5)Independent driving motors for mixing, water supply, batching and spiral conveying. Easy operation and convenient maintenance.
3. Standard Technical Parameters｜Cement Plant Equipments
|
Item
|
JZM650
|
JZM750
|
JZM1000
|
JZM1200
|
JZM1500
|
|
Feed Capacity
|
1000L
|
1200L
|
1600L
|
1800L
|
2200L
|
|
Discharge Capacity
|
650L
|
750L
|
1000L
|
1200L
|
1500L
|
|
Productivity
|
25-30m³/h
|
30-35m³/h
|
40-50m³/h
|
40-50m³/h
|
50-60m³/h
|
|
Mixing Motor Power
|
7.5kw*2
|
7.5kw*2
|
7.5kw*2
|
11kw*2
|
15kw*2
|
|
Pump Motor Power
|
1.1kw
|
1.1kw
|
2.2kw
|
2.2kw
|
3kw
|
|
Spiral Motor
|
5.5kw
|
5.5kw
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Batching Machine Motor
|
3kw-6P
|
3kw-6P
|
4kw-6P
|
4kw-6P
|
4kw-6P
|
|
Drum Size
|
Φ1500*1260
|
Φ1600*1360
|
Φ1800*1500
|
Φ1800*1600
|
Φ1800*2000
|
|
Batching Machine Size
|
1750*2150
|
1750*2150
|
1750*2150
|
1750*2150
|
2000*2230
|
|
Overall Dimension
|
3800**2100*2900mm
|
4250*2100*2900mm
|
4600*2100*2900mm
|
4800*2100*2900mm
|
5300*2200*2900mm
|
|
Whole Machine Weight
|
3000kg
|
3200kg
|
3700kg
|
4000kg
|
4500kg
|
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
