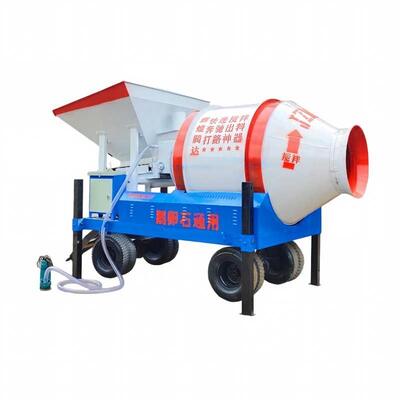

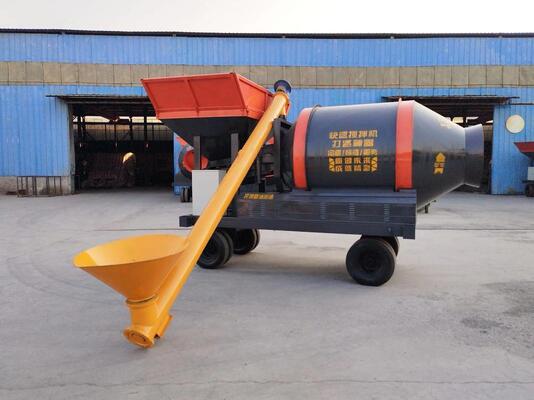

Cement Plant Equipments Fixed Bucket Drum Mixer Concrete Mixing Machine For Precast Factory And Hydraulic Engineering
1. Product Range｜Cement Plant Equipments
Our fixed bucket drum mixer includes five mainstream standard models: JZM650, JZM750, JZM1000, JZM1200, JZM1500. Different models vary in feeding volume, discharging capacity, theoretical production efficiency, overall dimension and machine weight. Motor power is configured according to requirements. Corresponding models can be selected from small on-site mixing to large-scale continuous construction. Customized configuration upgrades are available on request.
2. Application Scope｜Cement Plant Equipments
This drum mixer is suitable for pebbles, capable of mixing concrete, cement mortar and other construction mixtures. It is extensively applied in rural infrastructure, road construction, small precast component factories, on-site construction mixing, auxiliary construction projects. It also fits supporting mixing sections of cement plants, auxiliary civil works for mines, small water conservancy projects, applicable for both mobile construction sites and fixed mixing stations.
3. Product Advantages｜Cement Plant Equipments
(1)The drum mixing structure ensures uniform material mixing, strong adaptability to aggregates such as pebbles and low risk of material blockage.
(2)Fixed hopper feeding structure matched with spiral feeder realizes convenient feeding and higher automation.
(3)Electric drive is standard, and diesel power is optional for sites without stable power supply.
(4)Equipped with moving wheels for flexible relocation; sturdy frame and wear-resistant mixing drum guarantee long service life.
(5)Independent driving motors for mixing, water supply, batching and spiral conveying. Easy operation and convenient maintenance.
4. Standard Technical Parameters｜Cement Plant Equipments
|
Item
|
JZM650
|
JZM750
|
JZM1000
|
JZM1200
|
JZM1500
|
|
Feed Capacity
|
1000L
|
1200L
|
1600L
|
1800L
|
2200L
|
|
Discharge Capacity
|
650L
|
750L
|
1000L
|
1200L
|
1500L
|
|
Productivity
|
25-30m³/h
|
30-35m³/h
|
40-50m³/h
|
40-50m³/h
|
50-60m³/h
|
|
Mixing Motor Power
|
7.5kw*2
|
7.5kw*2
|
7.5kw*2
|
11kw*2
|
15kw*2
|
|
Pump Motor Power
|
1.1kw
|
1.1kw
|
2.2kw
|
2.2kw
|
3kw
|
|
Spiral Motor
|
5.5kw
|
5.5kw
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Batching Machine Motor
|
3kw-6P
|
3kw-6P
|
4kw-6P
|
4kw-6P
|
4kw-6P
|
|
Drum Size
|
Φ1500*1260
|
Φ1600*1360
|
Φ1800*1500
|
Φ1800*1600
|
Φ1800*2000
|
|
Batching Machine Size
|
1750*2150
|
1750*2150
|
1750*2150
|
1750*2150
|
2000*2230
|
|
Overall Dimension
|
3800**2100*2900mm
|
4250*2100*2900mm
|
4600*2100*2900mm
|
4800*2100*2900mm
|
5300*2200*2900mm
|
|
Whole Machine Weight
|
3000kg
|
3200kg
|
3700kg
|
4000kg
|
4500kg
|
