Product Details:
Payment & Shipping Terms:
|
| Name: | MP Series Vertical Shaft Concrete Mixer | Model: | MP750 |
|---|---|---|---|
| Feed Capacity: | 750L | Discharge Capacity: | 1125L |
| Ischarge Weight: | 1800kg | Rated Mixing Power: | 30kw |
| Hydraulic Unloading Power: | 2.2kw | Color: | Customized |
| Application: | Mining Supporting Projects,Field Construction Without Power Supply | Classification: | Cement Plant Equipments |
MP Series Vertical Shaft Concrete Mixer For Professional Cement Plant Equipments
1. MP Vertical Shaft Concrete Mixer Product Introduction|Cement Plant Equipments

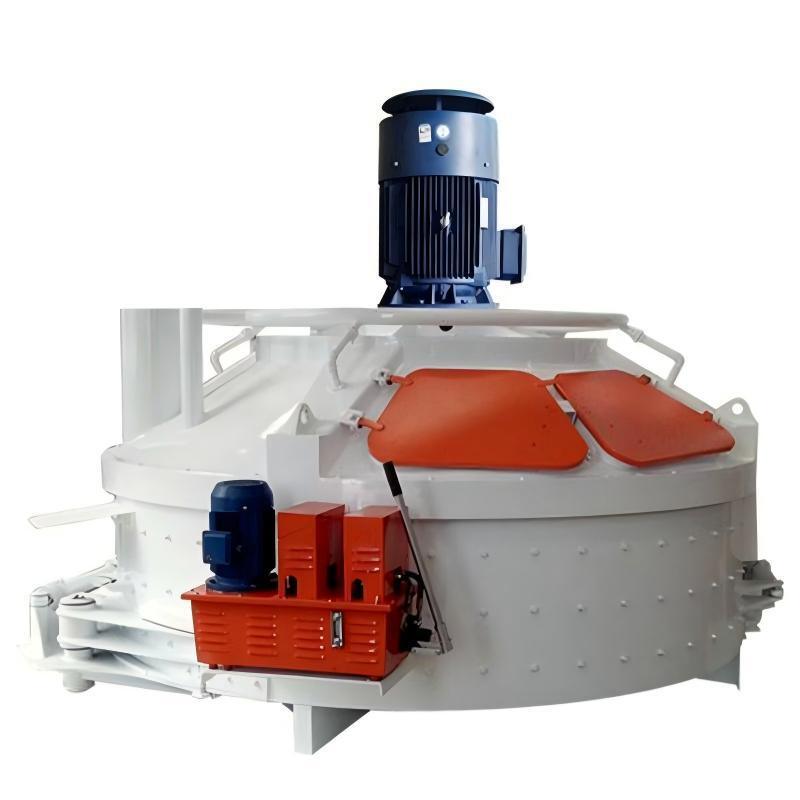

As core supporting Cement Plant Equipments for cement plants, the MP vertical shaft concrete mixer differs fundamentally from traditional horizontal shaft mixers. Its mixing shaft adopts a vertical layout, with feeding mechanism, heavy-duty mixing main unit and hydraulic unloading structure integrated into one compact and sturdy body. The vertical mixing structure eliminates blind mixing zones existing in horizontal shaft mixers, enabling materials to tumble and mix fully inside the mixing drum for superior mixing uniformity. It is a preferred mixing device for commercial concrete batching plants, cement product factories and mine filling mixing workshops. Featuring stable operation, it supports long-duration continuous mixing in factories and is widely matched with various cement building material production lines.
2. MP Vertical Shaft Concrete Mixer Application Scope|Cement Plant Equipments
As a highly versatile concrete mixer, the MP vertical shaft model is suitable for a wide range of materials and operational environments. It handles standard commercial concrete with ease while also being capable of mixing specialized types, such as dry-hard concrete. These mixers are widely used in cement product plants, commercial concrete batching plants, road and bridge infrastructure sites, precast component factories, permeable brick production lines, and mine backfill mixing systems. They deliver stable performance across diverse scenarios—from temporary on-site mixing for construction projects to mass prefabrication in factories and underground backfill material mixing in mining operations.
3. MP Vertical Shaft Concrete Mixer Standard Technical Parameters|Cement Plant Equipments
Parameter Item | MP500 | MP750 | MP1000 | MP1500 | MP2000 |
Feed Capacity | 500L | 750L | 1000L | 1500L | 2000L |
Discharge Capacity | 750L | 1125L | 1500L | 2250L | 3000L |
Discharge Weight | 1200kg | 1800kg | 2400kg | 3600kg | 4800kg |
Rated Mixing Power | 18.5kw | 30kw | 37kw | 55kw | 75kw |
Hydraulic Unloading Power | 2.2kw | 2.2kw | 3kw | 3kw | 4kw |
Hoist Power for Feeding Hopper | 4kw | 7.5kw | 11kw | 15kw | 22kw |
Machine Size | 2230*2080*1880mm | 2580*2340*2195mm | 2890*2602*2220mm | 3230*2909*2470mm | 3625*3230*2630mm |
Machine Weight | 2400kg | 3900kg | 6200kg | 7700kg | 9500kg |
High Efficiency MP Vertical Shaft Concrete Mixer Cement Plant Equipments For Sale![]()

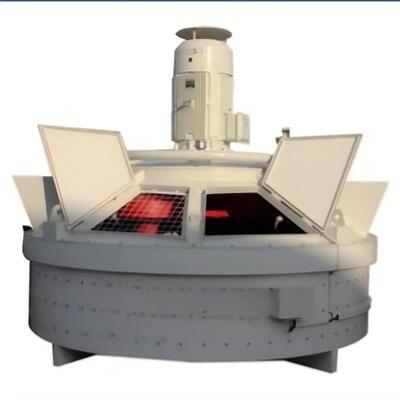

High Efficiency MP Vertical Shaft Concrete Mixer Cement Plant Equipments For Sale![]()
High Efficiency MP Vertical Shaft Concrete Mixer Cement Plant Equipments For Sale
