| Name: | MP Series Vertical Shaft Concrete Mixer | Model: | MP1500 |
|---|---|---|---|
| Feed Capacity: | 1500L | Discharge Capacity: | 2250L |
| Ischarge Weight: | 3600kg | Rated Mixing Power: | 55kw |
| Hydraulic Unloading Power: | 3kw | Hoist Power For Feeding Hopper: | 15kw |
| Application: | Mining Supporting Projects,Field Construction Without Power Supply | Classification: | Cement Plant Equipments |

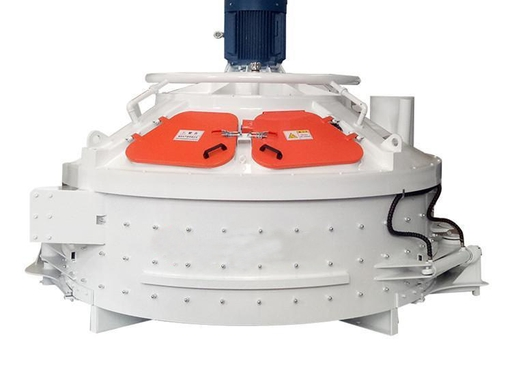

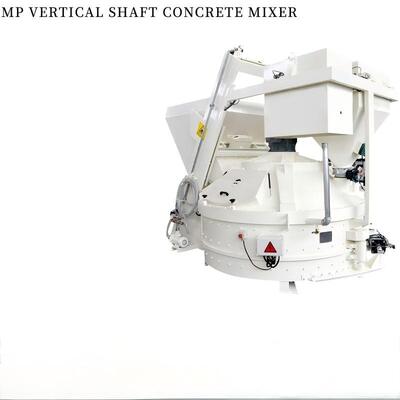

Reliable MP Vertical Shaft Concrete Mixer For Cement Plant Production Equipments
1. MP Vertical Shaft Concrete Mixer Product Introduction|Cement Plant Equipments
As core supporting Cement Plant Equipments for cement plants, the MP vertical shaft concrete mixer differs fundamentally from traditional horizontal shaft mixers. Its mixing shaft adopts a vertical layout, with feeding mechanism, heavy-duty mixing main unit and hydraulic unloading structure integrated into one compact and sturdy body. The vertical mixing structure eliminates blind mixing zones existing in horizontal shaft mixers, enabling materials to tumble and mix fully inside the mixing drum for superior mixing uniformity. It is a preferred mixing device for commercial concrete batching plants, cement product factories and mine filling mixing workshops. Featuring stable operation, it supports long-duration continuous mixing in factories and is widely matched with various cement building material production lines.
2. MP Vertical Shaft Concrete Mixer Standard Technical Parameters|Cement Plant Equipments
Parameter Item | MP500 | MP750 | MP1000 | MP1500 | MP2000 |
Feed Capacity | 500L | 750L | 1000L | 1500L | 2000L |
Discharge Capacity | 750L | 1125L | 1500L | 2250L | 3000L |
Discharge Weight | 1200kg | 1800kg | 2400kg | 3600kg | 4800kg |
Rated Mixing Power | 18.5kw | 30kw | 37kw | 55kw | 75kw |
Hydraulic Unloading Power | 2.2kw | 2.2kw | 3kw | 3kw | 4kw |
Hoist Power for Feeding Hopper | 4kw | 7.5kw | 11kw | 15kw | 22kw |
Machine Size | 2230*2080*1880mm | 2580*2340*2195mm | 2890*2602*2220mm | 3230*2909*2470mm | 3625*3230*2630mm |
Machine Weight | 2400kg | 3900kg | 6200kg | 7700kg | 9500kg |
3. MP Vertical Shaft Concrete Mixer Inquiry & Purchase Invitation|Cement Plant Equipments
The high-performance MP vertical shaft concrete mixer helps building material and mining enterprises reduce costs and increase production efficiency. With extensive experience in mining machinery and complete cement equipment sales, we maintain ample stock of the MP series mixers and offer customization options for equipment structure and fully automated loading production lines. Whether for sporadic project procurement, batch equipment upgrades for factories, or integration into mine backfill mixing systems, please feel free to contact us for a quote. We provide comprehensive, one-stop services—including tailored solutions for specific operating conditions, competitive factory-direct pricing, on-site installation and commissioning guidance, and full-lifecycle after-sales support. We welcome inquiries and partnership discussions from building material manufacturers, engineering contractors, and mining enterprises.
Reliable MP Vertical Shaft Concrete Mixer For Cement Plant Production Equipments![]()
Reliable MP Vertical Shaft Concrete Mixer For Cement Plant Production Equipments![]()
Reliable MP Vertical Shaft Concrete Mixer For Cement Plant Production Equipments
