Complete Mobile Concrete Production Line JZM Series Drum Mixing Plant Cement Plant Equipments For Road Building
1. Product Introduction｜Cement Plant Equipments

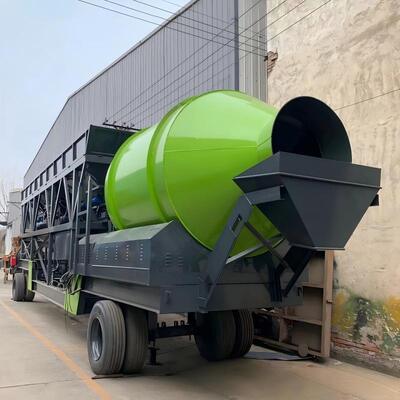

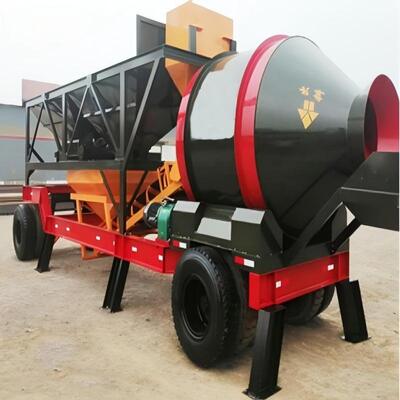

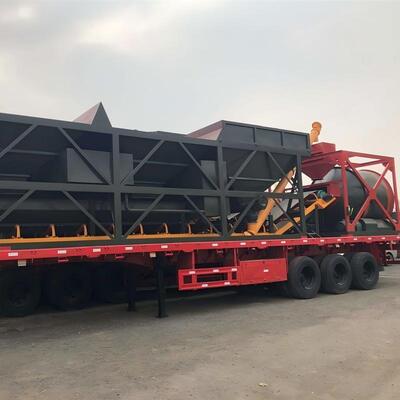

The JZM Mobile Drum Mixing Plant is a highly-representative all-in-one mobile concrete mixing complete set within Cement Plant Equipments series. The whole equipment integrates aggregate batching system, high-precision weighing system, drum mixing main unit, material conveying mechanism and finished-product discharging unit onto a wheel-mounted mobile chassis. It realizes the full-set concrete production workflow including batching, weighing, mixing and discharging.
Different from traditional stationary concrete batching plants, this machine does not require complicated civil foundation construction. The complete unit can be towed for relocation. Most assembly and commissioning work are finished before factory delivery. After arriving at construction sites, it only needs simple fixing and can quickly start production. As a new-type mobile mixing equipment balancing production performance and flexible transportation capacity, it serves as a preferred Cement Plant Equipments for small and medium sized concrete construction projects.
2. Application Scope｜Cement Plant Equipments
This Cement Plant Equipments JZM Mobile Drum Mixing Plant is specially developed for projects with scattered working sites, changeable construction periods and frequent site relocation. It perfectly fits various small and medium scale engineering scenarios.
It performs well for projects with scattered working points and unfixed construction locations. It can also be deployed normally in construction sites with limited space and narrow working environment. It is widely used in rural road construction, municipal road renovation, farmland water conservancy projects, slope protection construction, field infrastructure, temporary construction sites, small scale building projects, emergency rescue construction and other works.
For clients who cannot build stationary batching plants and need quick demobilization after project completion for next site operation, this mobile mixing plant delivers a cost-effective Cement Plant Equipments solution.
3. Standard Technical Parameters｜Cement Plant Equipments
|
Item
|
JZM750
|
JZM1000
|
JZM1200
|
JZM1500
|
JZM2000
|
JZM2500
|
|
Discharge Capacity
|
750L
|
1000L
|
1200L
|
1500L
|
2000L
|
2500L
|
|
Feed Capacity
|
1200L
|
1600L
|
1920L
|
2400L
|
3200L
|
4000L
|
|
Maximum Aggregate Size
|
60mm/80mm
|
60mm/80mm
|
60mm/80mm
|
60mm/80mm
|
60mm/80mm
|
60mm/80mm
|
|
Productivity(m³/h)
|
30-35
|
35-45
|
40-50
|
50-60
|
60-70
|
70-80
|
|
Total Power
|
30kw
|
35kw
|
45kw
|
50kw
|
55kw
|
65kw
|
|
Aggregate Weighing Accuracy
|
±2%
|
±2%
|
±2%
|
±2%
|
±2%
|
±2%
|
|
Cement Weighing Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Fly Ash Weighing Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Water Weighing Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Admixture Weighing Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
