Product Details:
Payment & Shipping Terms:
|
Name: | Spiral Chute Separator | Type: | Ore Dressing Equipment |
---|---|---|---|
External Diameter: | 1200mm | Screw Distance: | 900/720/540mm |
Ratio: | 0.75/0.6/0.45 | Transverse Obliqiuty: | 9° |
Max. Scroll Buckets For Each Machine: | 4 | Feeding Granularity: | 0.3-0.03mm |
Feeding Thickness: | 25-55% | Capacity (T/H): | 4-6 |
Port: | Qingdao |
Durable Spiral Chute With Uniform Ore Separation And Easy Control
The spiral chute is a gravity separation equipment, mainly used to separate mineral particles with large differences in specific gravity. It uses the inertial centrifugal force generated when the slurry flows in the spiral chute to separate the mineral particles with different specific gravities.
Working principle
When using the chute when the vertical line need to be calibrated, the ore is sent to the feed mouth. adding additional water. After adjusting the concentration of mineral by adding additional water. The paddle streams down from the high place. In bevel velocity will produce a centrifugal force. Under the action of gravity and centrifugal force, ore and sand will be separated from each other. The tailings then flow into the tailings and the sand is drain away by pump to complete the whole process of the beneficiation.
Structural Features
The FRP spiral chute consists of six components: a feed distributor, a feed chute, a spiral trough, a product interceptor chute, a product collection hopper, and a trough support (including a cross or tripod). The spiral chute, formed by spiral blades, is the primary component. The spiral blades are made of FRP (glass fiber reinforced plastic) and bolted together. The separation surface of the spiral chute has a pre-formed wear-resistant coating. This mineral processing equipment is lightweight, strong, and durable. A multi-tube feed distributor located above the spiral chute ensures uniform ore distribution and easy control.
Paramenters Of Ore Dressing Equipment
Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
External diameter(mm) | 1200 | 900 | 600 | 400 | |
Screw distance(mm) | 900/720/540 | 675/540/405 | 450/360/270 | 240/180 | |
Ratio(scrolldistance/diameter) | 0.75/0.6/0.45 | 0.75/0.6/0.45 | 0.75/0.6/0.45 | 0.6/0.45 | |
Transverse obliqiuty | 9° | 9° | 9° | 9° | |
Max. scroll buckets for each machine | 4 | 4 | 3 | 2 | |
Feeding granularity(mm) | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding thickness(%) | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity(t/h) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
Dimensions | Length(mm) | 1360 | 1060 | 700 | 460 |
Width(mm) | 1360 | 1060 | 700 | 460 | |
Height(mm) | 5230 | 4000 | 2600 | 1500 | |
Weight(kg) | 600 | 400 | 150 | 50 |

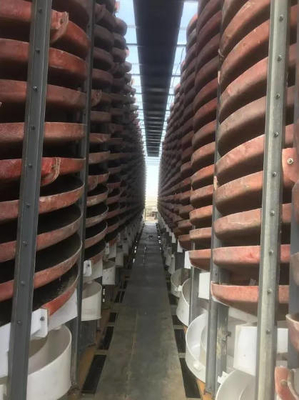

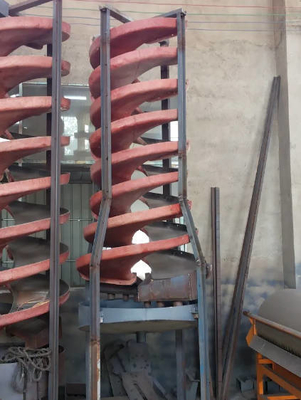

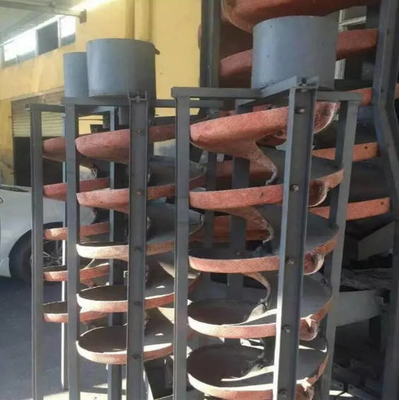

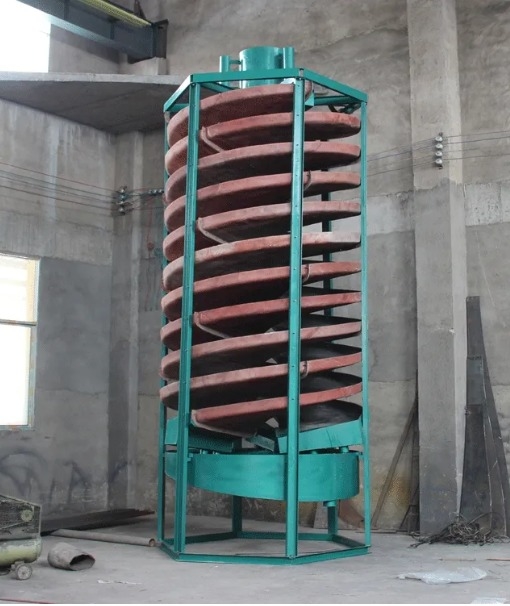

Product Display Of Ore Dressing Equipment
Ore Dressing Equipment
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
