Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining | Condition: | New |
|---|---|---|---|
| Type: | Flotation Separator | Production Capacity: | 0.2-8 M, 0.2-8 Stere /min |
| Voltage: | Flotation Machine | Dimension(L*W*H): | 700x700x750-2200x2900x1400 Mm |
| Weight: | 468-4486 | Warranty: | 12 Month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training | Flotation Machine: | Copper And Gold Ore Flotation Machine |
| Impeller Diameter(mm): | 300 | Modle: | SF/XJM Flotation Machine |
| Impeller Rotation Speed (r/min): | 191-400 | Dischargeable Capacity: | 0.3-8m |
| Application: | Nonferrous Metals, Coal Quartz, Talc | Brand: | CITIC |
| Port: | QingDao,ShangHai,TianJin | ||
| High Light: | Copper Ore Flotation Machine,8m Flotation Separator,Electrical Motor Flotation Machine |
||

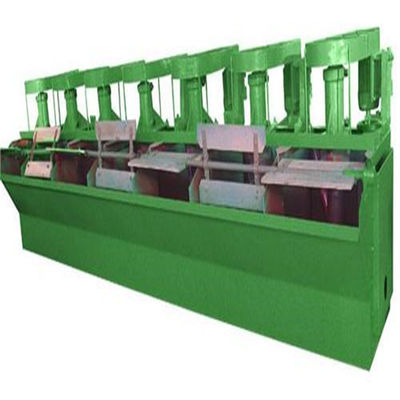

Flotation Machine
|
Model
|
SF0.37
|
SF0.7
|
SF1.2
|
SF2.8
|
SF4
|
SF8
|
|
|
Trough capacity(m³)
|
0.37
|
0.7
|
1.2
|
2.8
|
4
|
8
|
|
|
Impeller diameter(mm)
|
300
|
350
|
450
|
550
|
650
|
T60
|
|
|
Production capacity (m³/min)
|
0.2-0.4
|
0.3-0.9
|
0.6-1.2
|
1.5-3.5
|
0.5-4
|
4-8
|
|
|
Impeller rotation speed (r/min)
|
352
|
400
|
312
|
268
|
238
|
191
|
|
|
Motor
|
Model
|
Y90L-4
|
Y100L2-4
|
Y132M2-6
|
Y160L-6
|
Y180L-6
|
Y250M-8
|
|
Y90S-4
|
Y90S-4
|
Y90S-4
|
Y90S-4
|
Y90L-4
|
Y100L-6
|
||
|
Power(kw)
|
1.5
|
3
|
5.5
|
11
|
15
|
30
|
|
|
1.1
|
1.1
|
1.1
|
1.1
|
1.5
|
1.5
|
||
|
Dimensions(mm)
|
700×700×750
|
900×820×950
|
1100×1100×1100
|
1700×1600×1150
|
1850×2050×1200
|
2200×2900×1400
|
|
|
Single trough weight(kg)
|
468
|
600
|
1373
|
2338
|
2660
|
4486
|
|
| Model | XJM-1 | XJM-2 | XJM-3 | XJM-4 | XJM-8 | XJM-16 | XJM-24 | XJM-38 | |
| Chute dimensions | Length (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height (mm) | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single effective weight (kg) | 1154 | 1659 | 2259 | 2669 | 3868 | 6520 | 8000 | 16790 | |
| Effective cubage (m³) | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production capacity(calculated by slurry volume) (m³/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3-8 | 4-16 | 4-24 | 10-38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | |||||||||
| Rotation speed (r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 | |
| Diameter (mm) | 400 | 460 | 540 | 620 | 720 | 860 | 950 | - | |
| Height (mm) | 155 | 175 | 207 | 247 | 321 | 349 | - | - | |
| Rotation speed (r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | - | |
| Circular velocity (m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power (kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotation speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotation speed (r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter (mm) | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan (kpa) | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
