High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

Large Image : High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	$5,000.00 - $100,000.00 / Set
Packaging Details:	Simple packaging
Supply Ability:	1000 Set/Sets per Year

Contact Now

Detailed Product Description

Applicable Industries:	Industy	Condition:	New
Motor Type:	AC Motor	Warranty:	12 Month
Certificate:	ISO9001:2008/CE	Name:	Spiral Sand Washer
Product Name:	Sand Washer	Port:	QingDao
Model:	XL-508	Spiral Diameter:	508mm
Feed Size:	<10mm	Water Consumption:	6~60m3/h
Power:	7.5kw

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine

Product Description

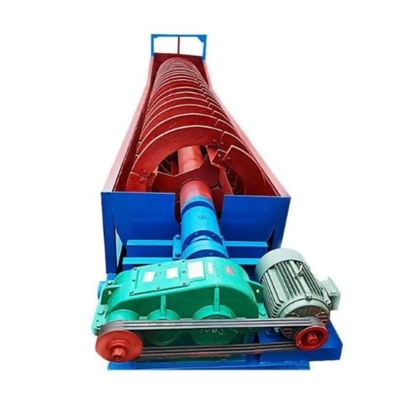

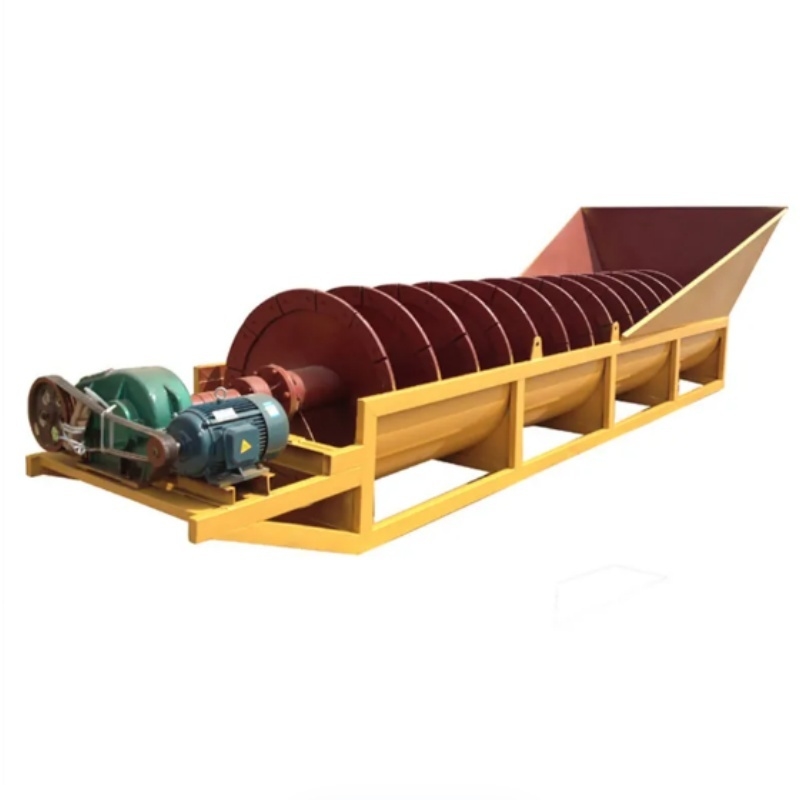

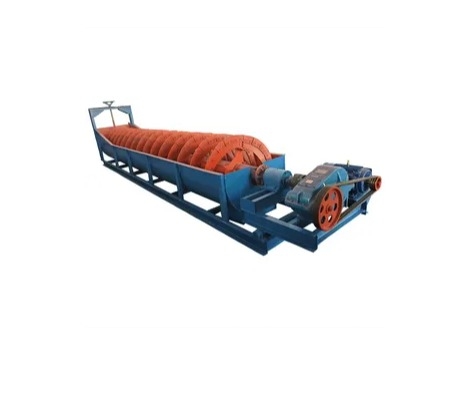

LSX Series Spiral Sand Washersis a kind of mechanical equipment that uses the rotation of spiral blades to achieve sand and gravel cleaning, desludging and classification. It is widely used in construction, sand and gravel plants, hydropower projects and other fields.

LSX Series Spiral Sand Washers can wash and sever the powder and dirt. Its novel seal structure and adjustable overflow barrier plus reliable driving system make an effective result of washing.

It is widely used for washing and sifting, severing and dirt remove in the fields of roads, hydropower and building industries.

Features
Efficient Cleaning: The rotating spiral blades effectively remove dirt and impurities from the sand and gravel surface.
Simple Structure: The equipment is compact and easy to operate and maintain.
Low Water Consumption: Some models are equipped with a wastewater recycling system to reduce water consumption.
High Capacity: Suitable for materials with a particle size of 0-30mm, with a production capacity of 5-240 tons/hour.
Low Failure Rate: The transmission is well sealed, reducing the risk of malfunctions.

Type	Model	Spiral diameter	Feed size	Water consumption	Capacity	Power	Dimension
		(mm)	(mm)	(m³/h)	(t/h)	(kw)	(mm)
Light single spiral	XL-508	508	<10	6~60	~20	7.5	8082×2343×1615
	XL-610	610	<10	6~63	~50	11	8358×2474×1627
	XL-762	762	<10	9~63	~75	15	9178×2650×1808
	XL-914	914	<10	90	~100	15	9310×2830×2360
	XL-1118	1118	<10	20~160	~175

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine 0

High Efficiency Durable And Effective Spiral Sand And Gravel Washing Machine 1

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
