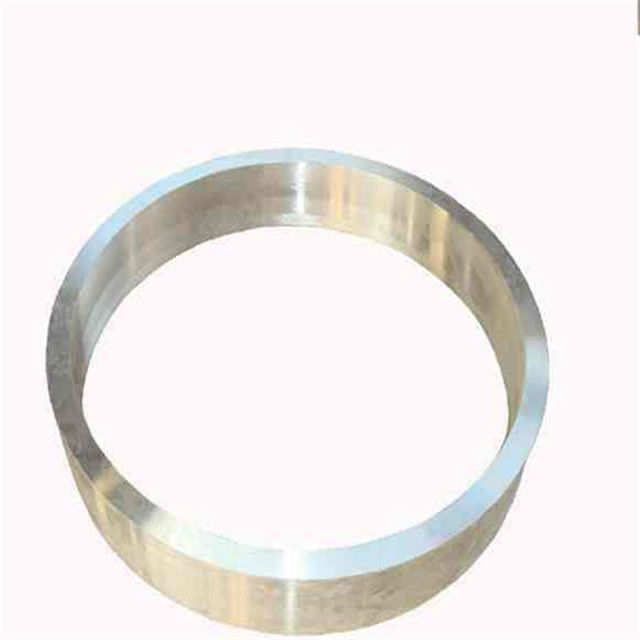

Forged 65HRC Large Vertical Mill Ring Castings And Forgings

Forged 65HRC Large Vertical Mill Ring Castings And Forgings
Forged 65HRC Large Vertical Mill Ring Castings And Forgings Forged 65HRC Large Vertical Mill Ring Castings And Forgings Forged 65HRC Large Vertical Mill Ring Castings And Forgings

Large Image :  Forged 65HRC Large Vertical Mill Ring Castings And Forgings

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO9001:2015/CE
Model Number: vertical mill ring17
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Tons
Price: $1,500.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 20000 Ton/Tons per Year
Detailed Product Description
Product Name: Forged Large Vertical Mill Ring Material: Steel
Application: Vertical Mill Hardness: 60-65HRC
Keyword: Mill Ring Classification: Castings And Forgings
MOQ: 0.5ton/tons Service: Customized OEM
Advantage: Competitive Port: QingDao,ShangHai,TianJian
High Light:

Forged Large Vertical Mill Ring


Steel Vertical Mill Ring


CE Vertical Mill Ring

Product Description
Product name Mill ring
Material Alloy steel
Standards/Certificates UNI EN ISO, AWS,ASTM,ASME,DIN
Apply to Vertical mill
OEM service offered According to customer’s drawings


With more than 1000 girth gears sold over the world CITICIC Gear is a leading supplier in the cement and mineral industry. And as member of AGMA (American Gear Manufacturers Association), we do actively take part in defining the standard for gear rating calculations and service factors.

We provide girth gears in three different designs

Fabricated steel
- forged ring
- rolled plate

Cast steel

Ductile (Nodular) cast iron


Fabricated gears became more common in the past and are constructed with forged steel gear rim materials and electro welded body structure. The rings are manufactured from a whole block of high resistance alloy steel. After the rough machining of the ring, we carry out hardening and tempering heat treatment in order to improve the mechanical characteristic and therefore its relevant performance.

Avantages of fabricated girth gears

The forged material structure excludes the risk of inclusions

Structure defects like gas holes, micro shrinkage, pin holes, hot tears, sand and slag inclusions are avoided Hence, repair welding of the body structure and e.g. grinding of toothed areas is not required.

The fabricated manufacturing procedure excludes the need for patterns and risers

Rim material has higher hardness and higher strength than the material used for the underlying structure (i.e. web, gussets)


These features will reduce the lead time and costs. Fabricated manufacturing ensures a fast delivery.

This is especially beneficial in an emergency situation, where the existing gear rim is suffering from damage


External teeth
Maximum diameter: 16000 mm
Toothed face width: 1700 mm
Maximum module: 45 by hob
Maximum module: 65 gear finishing cutter


Internal teeth
Maximum Diameter: 6500 mm
Maximum module: 25.4
Toothed face width: 400 mm

Forging material process
Final rolling

Furnace cooling
Control on production
Water quenching
Hardness testing
Rough machining
Ultrasonic testing and dimensional inspection
Final inspection certification

Our girth gears are applied in the cement and minerals industries:
Various types of horizontal mills
Rotary dryers
Rotary kilns
Any other large gear ring application


CITICIC Gear invested in significant resources and achieved many innovations with pinions. The right combination of material, hardness and finishing between pinion and gear is crucial for a long lifetime of the installed equipment. We design and manufacture pinions to match every customers need, no matter how unique the situation might be.

Pinion design


solid on shaft / integral

self aligned

spur, helical or double helical


forged alloyed steel

through hardened, case hardened or quenched and tempered

Spur, helical or double helical





gear cutting with hobs

the gear quality is checked by profile tester

tooth flank modification
profile correction
lead correction (straight/barrel)

designs /ratios according to ISO-DIN-A.G.M.A.

FEM/FEA simulation software







Our pinions are applied in the cement and minerals industries:

Ball - mills

ROD - mills

Semi Autogeneous Grind (SAG)

Rotary kilns/coolers/dryers


One Source

Original Equipment Manufacture (OEM) Technical Drawings

Gearing technical expertise for kilns and grinding mills

State of the art manufacturing facilities and quality

Global sales and service support

Forged 65HRC Large Vertical Mill Ring Castings And Forgings 0Forged 65HRC Large Vertical Mill Ring Castings And Forgings 1
