|Product Name:||Hammer Crusher||Applicable Industries:||Manufacturing Plant, Machinery Repair Shops, Energy & Mining|
|Condition:||New||Motor Type:||AC Motor|
|Capacity(t/h):||3-260 Tph||Dimension(L*W*H):||5800x3780x2700 Mm|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training||Rotor Length (mm):||400-1600|
|Material Strength:||Less Than 150Mpa||Max. Feeding Side Length(mm):||80-350|
|Discharging Particle Size(mm):||≤25||Color:||Customizable|
|Motor:||Chinese Famous Brand||Model:||Hammer Crusher|
260t/h hammer mill crusher,
80mm hammer mill crusher,
150Mpa hammer mill crusher

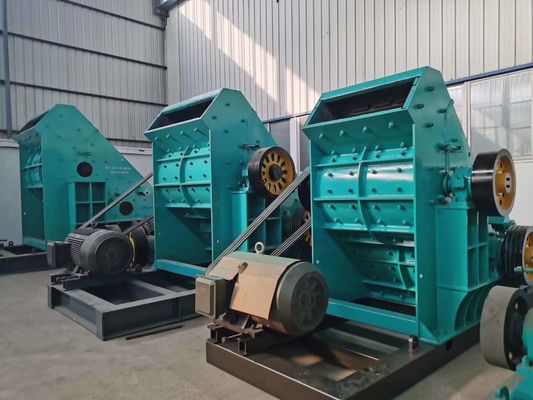

PC Series Hammer Crusher can be used to break the brittle material whose compression strength is less than 150Mpa such as the secondary and fine crushing of limesone,coke and coal etc.but also be used in processing medium hardness material in metallurgy, chemistry industry, e.g. carbon, limestone, and artificial aggregate.
PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.
Specification of hammer crusher
|Max. Feeding side length(mm)||Discharging particle size(mm)||Production capacity
|Power of motor (KW)||Weight
|Outline dimension(mm) Length× width× Height|
1. This equipment can control the Max. Value of the discharging particle size with screen plate.
2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity.
