Product Details:
Payment & Shipping Terms:
|
| Usage: | Screening Of Dry Materials | Application: | Ore Dressing, Building Material, Water And Power And Light Industry |
|---|---|---|---|
| Keyword: | Vibrating Screen | Material: | Dry Materials |
| Name: | Vibrating Screen | Feeding Size: | ≤200mm |
| Motor Power: | 5.5*2-11*2kw | Total Weight: | 2250-9950kg |
| Processing Capacity: | 10-600t/h | Feature: | Long Service Life |
| High Light: | Vibrating Screen Ore Dressing Equipment,600t/h Linear Vibrating Screen,10t/h Linear Vibrating Screen |
||

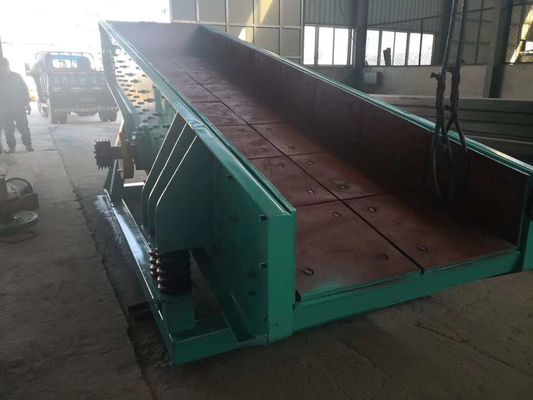

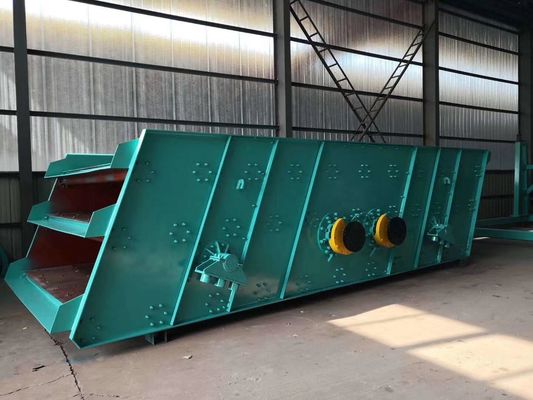

ZSW series of linear vibrating screen dual motor drive High efficiency

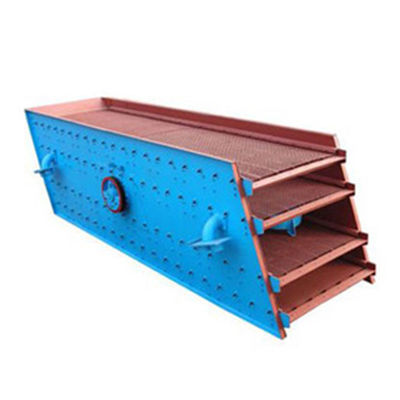

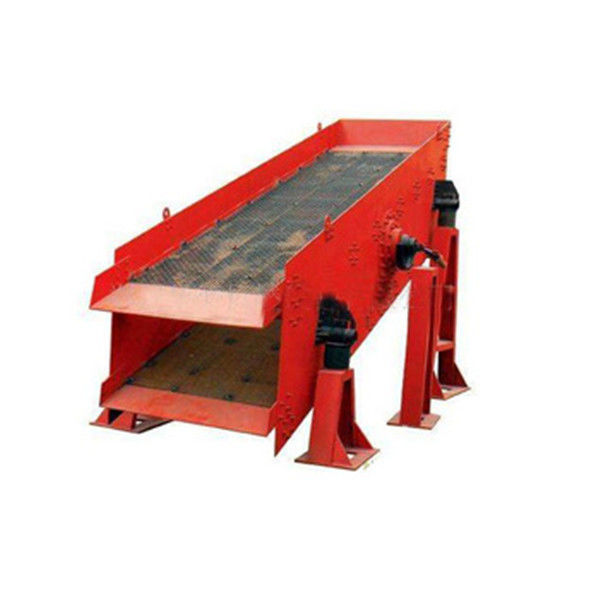

Linear vibrating screen

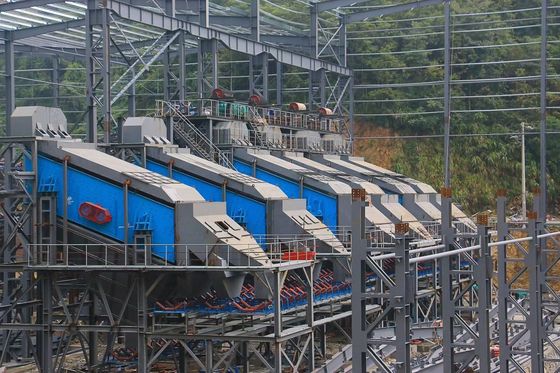

ZSW series of linear vibrating screen is widely applied to the screening of dry materials in ore dressing, building material, water and power and light industry.
Features:
Simple structure; it is easy to replace the screen
High wear resistance, low noise
High screening efficiency, low energy consumption
ZSW series of linear vibrating screen is widely applied to the screening of dry materials in ore dressing, building material, water and power and light industry. The advantages of this series of screening machine include stable operation, lower energy consumption, low noise, high efficiency and long service life.
Features and Advantages of LK Series Linear Vibrating
1. High vibrating force with unique eccentric structure. The adopt advanced structure makes the vibrating force powerful;
2. The beam and case of the screen are connected with high strength bolts without welding;
3. Simple structure, easy to repair;
4. Adopting tire coupling and soft connection ensures operation smooth;
5. High efficiency, easy maintenance and sturdy and durable use.
Working Principle of Linear Vibrating Screen
Linear vibrating screen adopts dual motor drive. When the motors do synchronous and reverse rotation, the exciting forces generated by eccentric block cancel each other out on the parallel direction of motor axis, and stack together with the direction that perpendicular to the motor axis, so its trajectory is a straight line. There is a dip on the two motor's relative screen surface, materials are tossed by leaps and bounds forward for linear motion under the exciting force and the self-gravity of the materials so as to achieve the purpose of screening and grading.
| Model | Sieve specifi- cations | Sieve layer | Mesh size | Feeding size | Proce ssing capacity | Motor power | Total weight | Vibra tion freq uency | Double ampl- itude | Obli quity of sieve | Dimensions |
| (L*W)(mm) | Layer | mm | mm | (t/h) | kw | kg | (Hz) | (mm) | °C | (L*W*H)(mm) | |
| ZSSW1237 | 3700*1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSW1237 | 3700*1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSW1443 | 4300*1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSW1443 | 4300*1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSW1443 | 4300*1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSW1548 | 4800*1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSW1548 | 4800*1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSW1848 | 4800*1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSW1848 | 4800*1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSW1848 | 4800*1800 | 4 | 5-50 | ≤200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSW1860 | 6000*1800 | 2 | 5-150 | ≤300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
