Product Details:
Payment & Shipping Terms:
|
| Type: | Coal Dressing Equipment | Keyword: | Disk Filter |
|---|---|---|---|
| Material: | Below 0.5mm | Filter Area Of Dehydration: | 40m2~120m2 |
| Application: | Metallurgy, Chemical Industry, Petroleum And Sewage Treatment | Number Of Disk: | 4-12 |
| Main Motor Power: | 2.2/4 | Capacity: | 8-36t/h |
| Weight: | 5485-11189kg | Feature: | Stable Performance |
| High Light: | Dehydration 0.5mm Rotary Disc Filter,120m2 Rotary Disc Filter,Dehydration 0.5mm rotating disc filter |
||
filter area of 40m2~120m2 dehydration of below 0.5mm Disk Filter

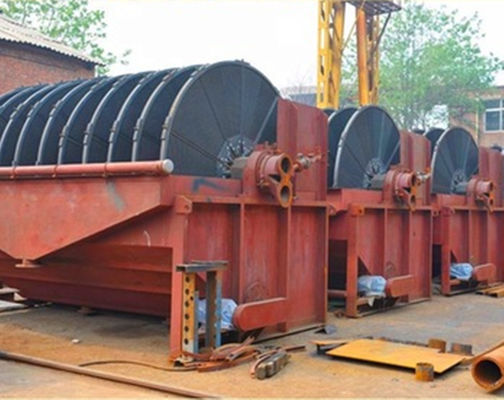

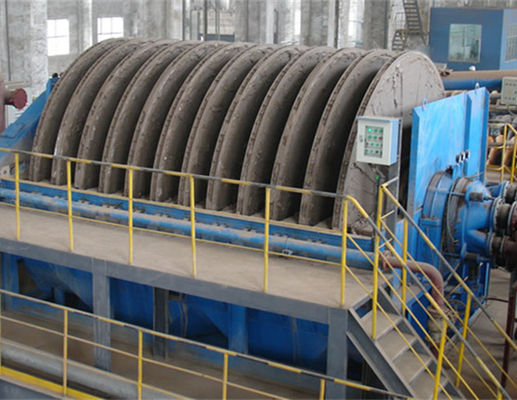

Disk Filter
ZTIC designed and manufacturers disk filter with advanced performance indexes and structure by introducing advanced technology from EIMCO. The series product has filter area of 40m2~120m2, and used for dehydration of below 0.5mm flotation clean coal, waste coal and other fine grain materials, and solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment, and has advantages of reliable operation, stable performance, long service life of plastic sector plate and stainless steel wire filter cloth.
Disk Filters
1984 - Disk Filter - Model GPY-200 (in cooperation with US EIMCO Co.)
1991 - Disk Filter - Model GPL-80
1994 - Disk Filter - Model GPS-160
2000 - Disk Filter - Model GPL-80
2005 - Disk Filter - Model GLL-120
Technical data:
| unit | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | |
| filter area | m2 | 40 | 60 | 80 | 100 | 120 |
| Dial Diameter | mm | 2700 | ||||
| Number of disk | 4 | 6 | 8 | 10 | 12 | |
| spindle speed | r/min | 1-0.167 | 0966-0.215 | |||
| Main motor power | Kw | 2.2 | 4 | |||
| speed of agitator | r/min | 73 | ||||
| Mixing motor Work rate | Kw | 2.2 | 4 | |||
| Feed size | Less than 0.063 mm fraction content is not more than 35-40% | |||||
| The material concentration | g/l | 250-350 | ||||
| capacity | t/h | 8-12 | 12-18 | 16-24 | 20-30 | 24-36 |
| Product water | % | 22-24 | ||||
| Dimensions (L×W×H) | mm | 3217×3450×3275 | 4017×3450×3275 | 4817×3450×3275 | 5617×3450×3275 | 6417×3450×3275 |
| Weight | Kg | 5485 | 7736 | 8754 | 10099.4 | 11189 |
