Product Details:
Payment & Shipping Terms:
|
| Name: | Tooth Roller Crusher | Condition: | New |
|---|---|---|---|
| Application: | Shale Crusher And Coal Crusher | Motor Type: | AC Motor |
| Warranty: | 12 Months | Broken Materials: | Raw Coal,limestone |
| Power: | 2-315kv | Feeding Size: | 0-1800 |
| Output Size: | 0-50 | Port: | QingDao,ShangHai,TianJin |
| High Light: | 2350TPH Double Roller Crusher,1630mm Double Roller Crusher,2350TPH toothed roller crusher |
||
| High quality fine sand making double roller crushing machinery roll crusher |

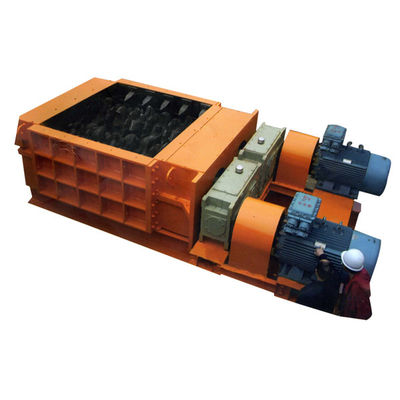

The main structure of the wheel gearing is composed of fixed roll, movable roll, drive shaft, machine box, chassis, cover piece, and long gear cover. The motive power of the machine comes from the V-belt pulley of the electro motor, and a pair of middle reduction gear will make the fixed roll rotate, and then a pair of long gear drive on the other side of the fixed roll will drive the movable roll, and the two rolls perform relative movement to squeeze the materials.
The big size material drops evenly into the clearance between two rollers. At the impact of two rollers'contrary rotation, the materials are extruded and crushed to the desirable size.
| Model | Roller diameter mm | Capacity t/h | Broken materials | feeding size mm | Discharging size mm |
| 2PGC-1630 | Φ1630 | 2350 | Raw coal | 0-1800 | 0-300 |
| 2PGC-1370A | Φ1370 | 2000 | stone,coal | 0-1500 | 0-300 |
| 2PGC-1370B | Φ1370 | 2000 | limestone | 0-1500 | 0-300 |
| 2PGC-1270 | Φ1270 | 1200 | Raw coal | 0-1200 | 0-300 |
| 2PGC-980 | Φ980 | 500 | coal | 0-1000 | 0-200 |
| 2PGC-600 | Φ600 | 100 | limestone | 0-300 | 0-100 |
| 2PGC-550 | Φ550 | 80 | coal | 0-300 | 0-50 |
| 2PGCF-820 | Φ820 | 2000 | Raw coal | 0-330 | 0-50 |
| Aftersales service
LUOYANG ZHONGTAI able to provide: 1. ENGINEERED SPARES - DESIGN AND MANUFACTURING 2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES 3. HUGE MACHINE SHOP CAPABILITIES 4. TRAINING PROGRAMMES 5. PREVENTATIVE MAINTENANCE PROGRAMS 6. PREVETATIVE MAINTENANCE SERVICES 7. COMPREHENSIVE MAINTENANCE PROGRAMS LUOYANG ZHONGTAI’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs. |
|
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs. |
