|Product Name:||BKC Series Jaw Crusher||Advantage:||Simple Installation And Superior Performance|
|Processed Materials:||Any Material||Input Size:||1000*760|
|Max Feeding Size:||640mm||Motor Power:||110kw|
465tph Jaw Stone Crusher Machine,
140tph Jaw Stone Crusher Machine,
465tph hydraulic jaw crusher

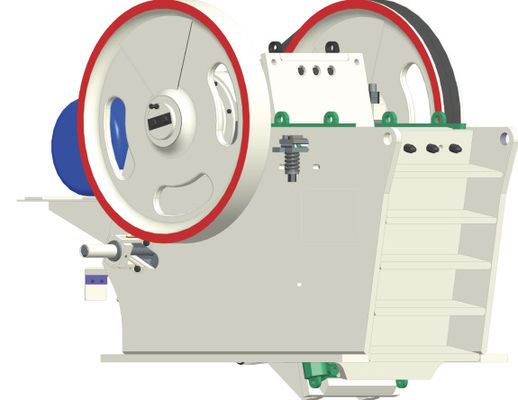

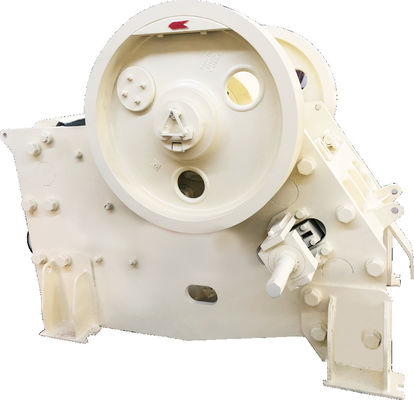

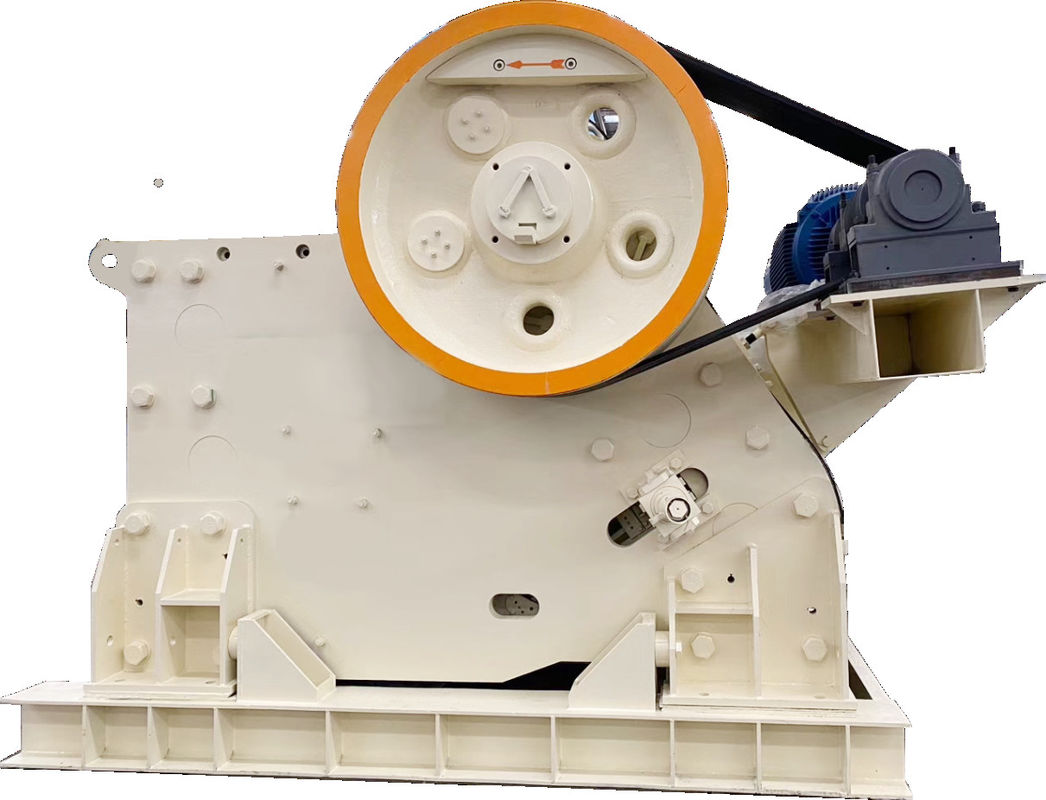

BKC series jaw crusher is a new jaw crusher manufactured by our company based on the introduction of foreign advanced technology, according to the company's design philosophy over the years and the actual working conditions of domestic and foreign users, from the structure, material selection, processing technology, fine assembly technology and other aspects of optimization and improvement. BKC series jaw crusher is the best choice for your coarse crusher, which adopts light structure, strong durability, optimized and innovative modular design, multiple installation methods (welding type and bolt connection type are available for users to choose), no matter any material, from hard and strong abrasive rock to building waste material.
|Model||Input size (mm)||Maximum feeding size(mm)||Discharge clearanceCSS(mm)/Processing capacity(t/h)||Power|
Note: 1. The processing capacity in the table is the parameter corresponding to the rock whose broken loose density is 1.6t/m (stone density is 2.7t/m).
2. According to the nature of the material and the way of feeding, the processing capacity will change accordingly.
3. CSS is the closed side discharge port, and its measurement method is determined according to the shape of the jaw plate tooth. With different tooth shape, its processing capacity and discharge granularity will change.
Equipment features and advantages
1. Simple installation
Split design fully ensures that BKC series jaw crusher installation is simple and convenient, the motor and main machine integrated design installation, crusher in the user site to occupy a small space in a variety of angles to install, rational use of space.
2. Superior performance
(1) The "V" cavity is designed to ensure the maximum bite force and the best crushing performance of the equipment;
(2) Select the best quality high-grade rolling bearing, large bearing capacity and long life;
(3) High speed balance design operation, high crushing efficiency, small vibration, simple foundation, convenient installation, labor saving, lower cost.
3. Excellent cavity design
The "V" symmetrical crushing chamber design makes the actual feed width consistent with the nominal feed width, and the crushing chamber is deep, with small bite Angle and large stroke, so that the processing capacity is larger, the energy consumption is lower and the crushing performance is better.
4. Heavy-duty movable jaw assembly is durable
The heavy-duty moving jaw assembly adopts forged heavy-duty eccentric shaft, high quality heavy-duty rolling bearing, which ensures the impact resistance and high stability of the moving jaw assembly. Labyrinth seal and centralized lubrication system guarantee the grease of bearing not to be polluted, lubrication is more convenient, make it run longer and have better stability.
5. Movable jaw protection plate design
A heavy guard plate is installed above the movable jaw to avoid material impact and effectively protect the movable jaw body and its internal bearing from damage.
size distribution curve
Main spare parts
