300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

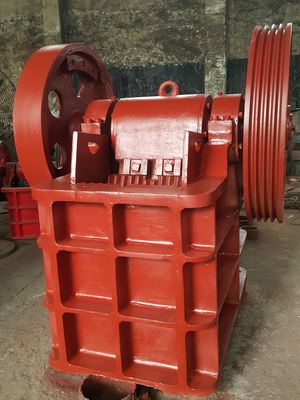

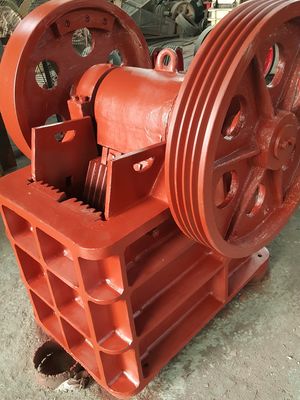

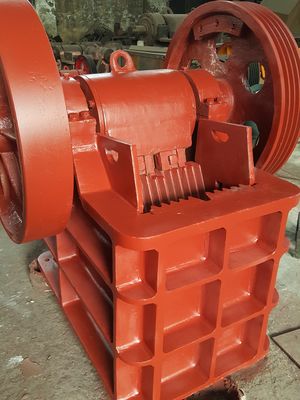

300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining

300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining
300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining
video play

Large Image :  300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC LK
Certification: ISO/CE
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $3,000.00
Packaging Details: Standard packing or according to customer's requirement
Delivery Time: 1 month
Payment Terms: T/T, L/C
Supply Ability: 1000 Set/Sets per Year
Detailed Product Description
Type: Jaw Crusher Condition: New
Application: Rock Crusher And Stone Crusher Motor Type: AC Motor
Capacity(t/h): 5-21T/h Weight: 2.6T
Feeding Size: 250*400mm Maximum Feed Size: 210mm
Adjusting Range Of Dischaiging Opening: 20-80mm Rotation Speed Of Eccentric Shaft: 300r/min
Power: 150kw Boundary Dimension: 1450*1315*1296mm
Port: QingDao,ShangHai,TianJian
High Light:

21T/H Jaw Stone Crusher Machine

,

300r/Min Jaw Stone Crusher Machine

,

300r/Min jaw crusher plant

Jaw Crusher Machine for rock quarries, sand and gravel, mining

Product Description

Jaw Crusher : PE Series Jaw Crusher

A Jaw Crusher uses compressive force for breaking material. This mechanical pressure is achieved by the crusher's two jaws dies, one of which is stationary and the other is movable. These two vertical manganese jaw dies create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than the bottom. Jaw Crushers are sized by the top opening of the crushing chamber. For example, a 32 x 54 Jaw Crusher measures 32" from jaw die to jaw die at the top opening or gape opening and 54” across the width of the two jaw dies.

The narrower bottom opening of the crushing chamber is used to size the discharge material. A toggle plate and tension rods hold the pitman tight near the bottom of the moving swing jaw. The toggle plate is designed to perform like a fuse and protect the crusher in the event that an uncrushable material enters the crushing chamber. As a rule, Jaw Crushers have a 6:1 or 8:1 ratio for crushing material. Still using the 32 x 54 Jaw Crusher example, the top size of the feed entering the crushing chamber has to follow the F80 rule that 80% of the top size feed material is smaller than the gape opening. Using the F80 rule with the 32 x 54 Jaw Crusher, the 32” gape opening equals a 26” top sized feed, and with the 6:1 ratio of reduction, the discharge setting would be around 4”.

Since the crushing of the material is not performed in one stroke of the eccentric shaft, massive weighted flywheels are attached to the eccentric shaft and powered by a motor. The flywheels transfer the inertia required to crush the material until it passes the discharge opening.



Model Feeding size(mm) Max feeding size(mm) Discharging Range size(mm) Capacity (t/h) Motor power(kw) Weight (t)
PE-250*400 250*400 210 20-60 5-20 15 2.8
PE-400*600 400*600 340 40-100 16-60 30 6.5
PE-500*750 500*750 425 50-100 40-110 55 10.6
PE-600*900 600*900 500 65-180 80-180 55-75 15.5
PE-750*1060 750*1060 630 80-180 110-320 90-110 28
PE-800*1060 800*1060 680 100-200 140-340 90-110 30
PE-870*1060 870*1060 750 170-270 180-360 90-110 30.5
PE-900*1060 900*1060 780 200-290 200-380 90-110 31
PE-900*1200 900*1200 780 95-225 220-450 110-132 49
PE-1000*1200 1000*1200 850 195-280 280-550 110-132 51
PE-1200*1500 1200*1500 1020 150-300 400-800 160 100.9
PEX-150*750 150*750 120 18-48 8-25 15 3.5
PEX-250*750 250*750 210 25-60 13-35 22 4.9
PEX-250*1000 250*1000 210 25-60 16-52 30-37 6.5
PEX-250*1200 250*1200 210 25-60 20-61 37 7.7
PEX-300*1300 300*1300 250 20-90 25-95 75 11



300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining 0 300r/Min 21T/H Jaw Stone Crusher Machine For Rock Quarries Sand And Gravel Mining 1
