20-180 T/H Sand Washing Machine In Mineral Processing Plant

20-180 T/H Sand Washing Machine In Mineral Processing Plant
20-180 T/H Sand Washing Machine In Mineral Processing Plant
video play

Large Image :  20-180 T/H Sand Washing Machine In Mineral Processing Plant

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC LK
Certification: ISO /CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $5,000.00 - $100,000.00 / Set
Packaging Details: Simple packaging for XS Series Wheel Sand Washer Screw Sand Washing Machine
Supply Ability: 10000 Set/Sets per Year
Detailed Product Description
Product Name: XS Series Wheel Sand Washer Condition: New
Motor Type: AC Motor Capacity(t/h): 20-180t/h
Weight: 2.6~16.5t Warranty: 1 YEAR
Keyword: Sand Washer Speed (RPM): 0.8-1.2
Wheel Bucket Diameter (mm): 2600~3600 Application: Sand
MOQ: 1 Port: QingDao,ShangHai,TianJin
High Light:

180 T/H Sand Washing Machine

,

20T/H Sand Washing Machine

,

180 T/H silica sand washing plant

Sand Washing Machine In Mineral Processing Plant

Product Description

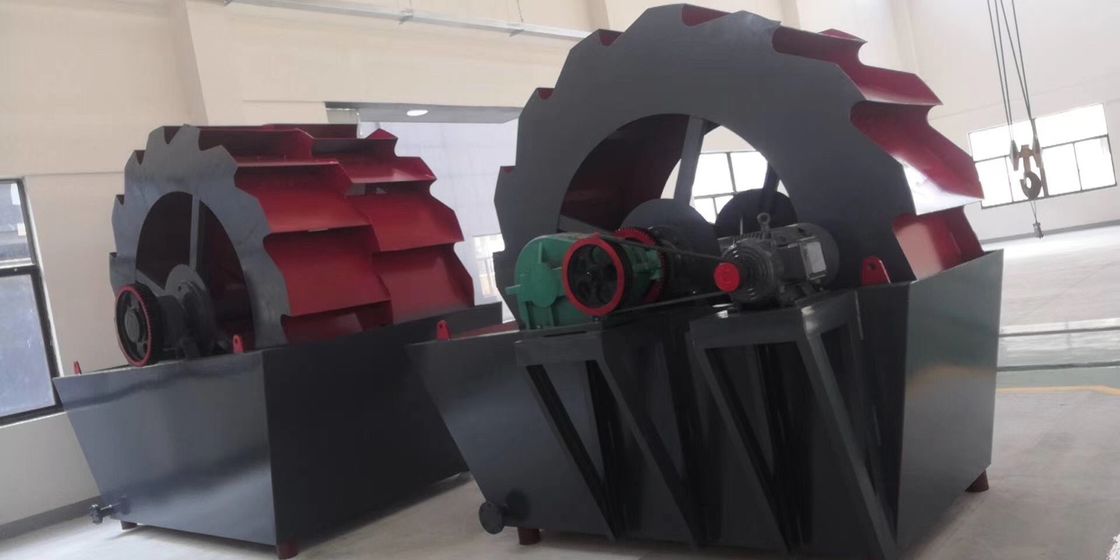

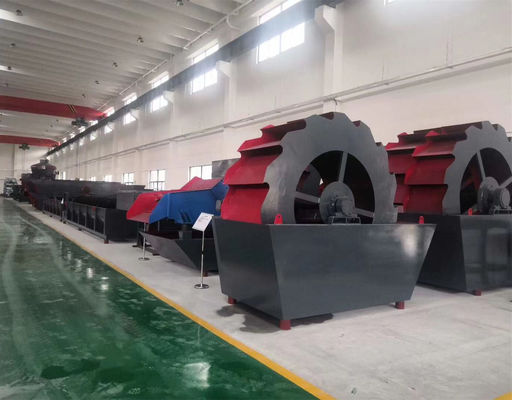

Sand Washing Machine in Mineral Processing Plant

Mineral sand washing machine is applied for washing applications in mineral processing plant, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc. Our mineral washing machine is a highly efficient machine which is designed on the basis of the detailed washing needs in mining industry and comes with features like good washing effect, reasonable structure, large capacity, and less materials loss during washing process. The transmission part of mineral washing machine is isolated from water and specific material, which could greatly reduce the error rate of the machine.

Sand washing machine is widely used to rough and select manganese, in particular best for the manganese ore particles buried in the soil. Its handing capacity is greater and is the ideal equipment for the businesses that are required for great productivity of ore and stone cleanliness.

At existing, loads of big scale construction projects and production lines are in need of much sand aggregate. The machine made sand has a broad choice of applications in contemporary times. The brand new generation of sand recovery gadget can take care of the waste water swiftly and correctly in an effort to get fine sand and stone powder mixed within the waste water. An ideal combination on the sand recovery device as well as the sand washer prevents the natural environment pollution and reduced yield complications brought on through the sand wasting. All this can lead to great financial earnings for customers and can push the social economy forward.

Sand Washing Machine Working Process

In the mineral processing plant, the mineral washing machine plays an important role in it. The mineral washing machine also has a standard level working principle. When the mineral washing machine is working, the electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished.

The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.



specifications

XS2600

XS2600Ⅱ

XS2800

XS3200

XS3600

Wheel bucket diameter (mm)

2600

2600

2800

3200

3600

Speed (RPM)

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

Processing power (t/h)

20-50

30-70

50-100

80-120

120-180

Motor power (kw)

5.5

5.5

7.5

11

15

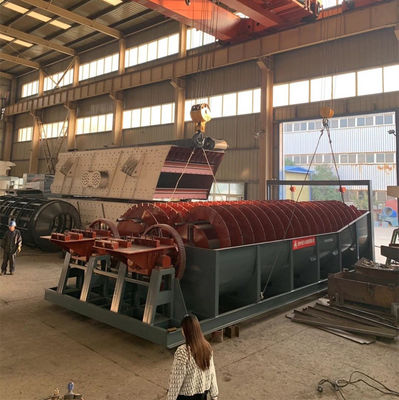

model

WCD-1500

WCD-1118

WCD-914

WCD-762

WCD-610

WCD-508

Diameter of screw (mm)

1500

1118

914

762

610

508

Tank length (mm)

10512

9554

7815

7620

7225

6705

Washing size (mm)

≤10

≤10

≤10

≤10

≤10

≤10

Production capacity (t/h)

130~220

100~175

75~100

50~75

40~50

20

Screw speed (RPM)

13

18

20

26

32

38

Motor power (kw)

18.5

15

11

11

7.5

5.5

Water consumption (t/h)

14~190

20~168

10~80

9~63

6~63

6~60

Machine weight (t)

16.5

8.6

6.5

5.2

3.8

2.6
