Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard

Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard
Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard

Large Image :  Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Core Components: Gearbox, Motor, Gear Voltage: 220v/380v
Power: 55-950*2 Dimension(L*W*H): Various
Weight: 149.61-1659 T Capacity: 180-10000 Tpd
High Light:

10000 TPD Clinker Rotary Kiln

,

180 TPD Clinker Rotary Kiln

,

10000 TPD rotary kiln in cement industry

180-10000 tpd high standard Clinke rotary kiln for cement industry

1.Introduction of Clinker rotary kiln

Clinker rotary kiln is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.

The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.

It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.

Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.

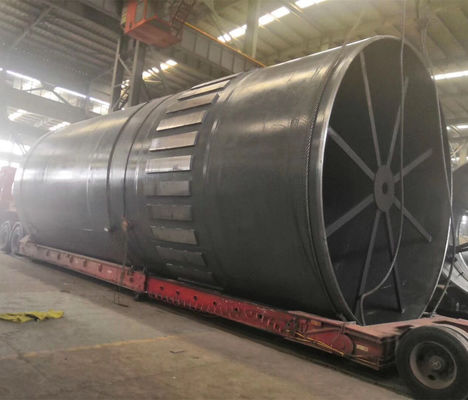

Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard 0



2.Features of Clinker rotary kiln

Clinker rotary kiln is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.

The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.

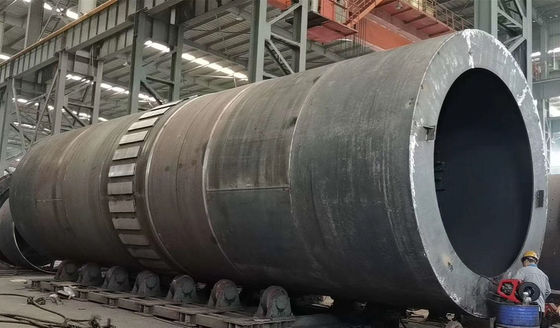

Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard 1



3.Application of Clinker rotary kiln

Clinker rotary kilnbelongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.

Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.

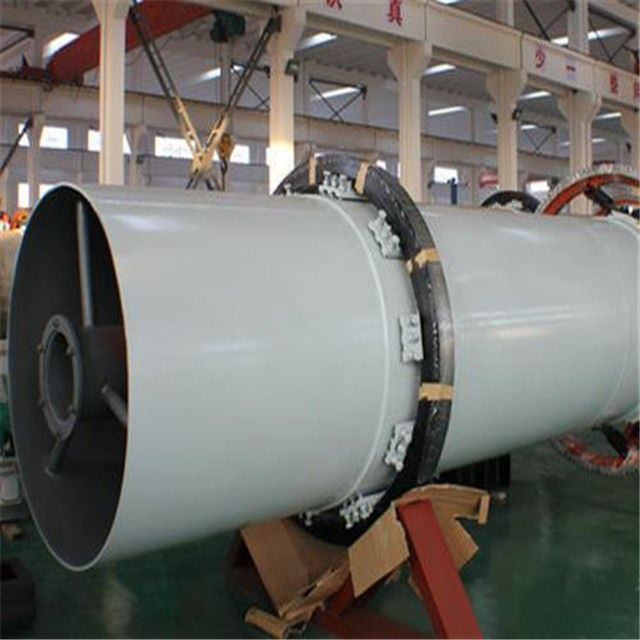

Cement Industry 180-10000 TPD Clinker Rotary Kiln High Standard 2

4.Technical parameters of Clinker rotary kiln

Specification Capacity(t/d) Kiln obliquity (%) Bearing quantity Kiln rotation speed(r/min) Main driving (r/min)
Motor Reductor
Main driving Auxiliary driving Type

Rated power

(KW)

Speed adjustment range (r/min) Rated voltage (v) Type Speed ratio
Φ2.5×40 180 3.5 3 0.98-2.94 0.036 YCT315-4B 45 132-1320 380 ZS145-1-I 49.63
Φ2.5×60 168 3.5 4 0.516-1.549 0.036 YCT355-4B 75 440-1320 380 ZS165-7-II 99.96
Φ3×48 700 3.5 3 0.726-3.63 0.1375 ZSN4-280-091B 110 200-1000 440 ZSY450-35-V 30.794
Φ3×60   3.5 4 0.492-1.476 0.034 YCT355-4B 75 440-1320 380 ZL165-7-I 99.96
Φ3×100.94 450 4 4 0.3-1.503 0.275 ZSN4-250-21B 90 100-1000 440 NZS995-90-VI-L 90
Φ3.2×46 1000 3.5 3 0.36-3.57 0.108 ZSN4-280-091B 160 100-1000 440 NZS995-40VIBR 40
Φ3.2×52 1200 3.5 3 0.343-2.34 0.102 ZSN4-280-21B 125 100-1000 440 ZSY1110-71BLVI 71.54
Φ3.3×50 1300 3.5 3 0.676-3.38 0.106 ZSN4-280-091B 160 200-1000 440 NZS1110-40VI 40
Φ3.3×52 1300 3.5 3 0.266-2.66 0.0838 ZSN4-280-11B 125 100-1000 440 NZS995-40VIBR 40
