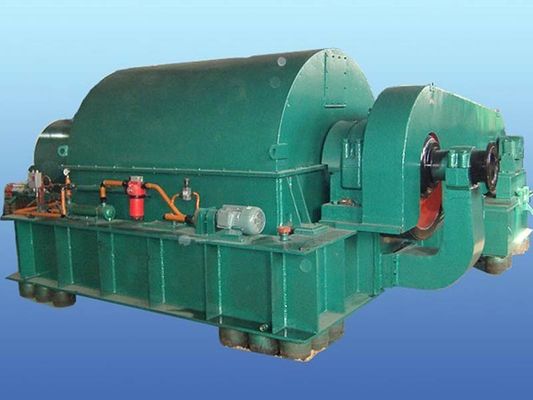

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection
20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection

Large Image :  20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Application: Chemical Industries Keyword: Centrifuge
Throughput: >15-20m3/h Roller Diameter: 250-650mm
Length-diameter Ratio Mm: 4.1 Speed: 2800-5000rpm
Differential Speed: 1~50rpm Main Motor Power: 11-90kW
Ancillary Motor Power (kW): 4-22 Weight: 1250-8000kg
High Light:

20m3/h Industry Centrifuge Machine

,

15m3/h Industry Centrifuge Machine

,

20m3/h industrial scale centrifuge

Environmental protection Long Service Life Coal Chemical Industry centrifuge





A centrifuge uses the centrifugal force exerted on the contents of a rapidly rotating container to separate fluids of different densities or to remove liquids from solids. They are widely used for mechanical solid-liquid separation of components in the chemical industries. Whether you are looking for a centrifuge to process salts, fertilizers, plastics, soda or cellulose, our experts can help you choose the right centrifuge for your application.

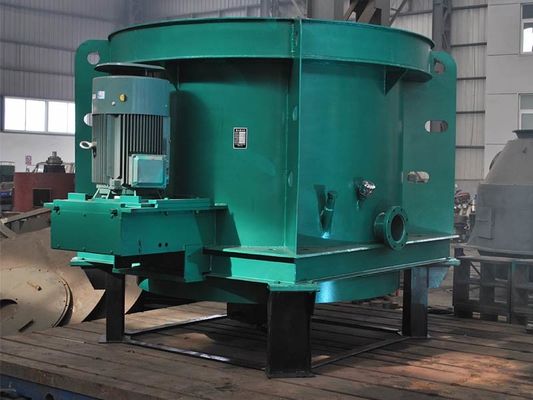

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 0

Centrifugal principle

When a suspension containing fine particles is standing still, the gravity field causes the suspended particles to sink gradually.The heavier the particle, the faster it sinks, whereas particles that are less dense than liquid rise.The speed of the particle moving in the gravitational field is related to the size, shape and density of the particle, as well as the strength of the gravitational field and the viscosity of the liquid.Particles the size of red blood cells, a few microns in diameter, can be observed settling under normal gravity.

In addition, there is diffusion phenomenon when the material settles in the medium.Proliferation is unconditional and absolute.Diffusion is inversely proportional to the mass of the material, and the smaller the particle, the more serious the diffusion.The settlement is relative, conditional, to be subjected to external forces to move.Settlement is proportional to the weight of the object, and the larger the particle is, the faster it settles.For particles smaller than a few microns, such as viruses or proteins, which form colloidal or semi-colloidal states in solution, it is impossible to observe the sedimentation process using gravity alone.The smaller the particle is, the slower it settles, and the more serious the diffusion is.Therefore, it is necessary to use a centrifuge to generate strong centrifugal force to force these particles to overcome the diffusion and sedimentation motion.

Centrifugation is to use the powerful centrifugal force generated by the high-speed rotation of the centrifuge rotor to accelerate the settling speed of the particles in the liquid and separate the substances with different settling coefficients and buoyancy densities in the samples

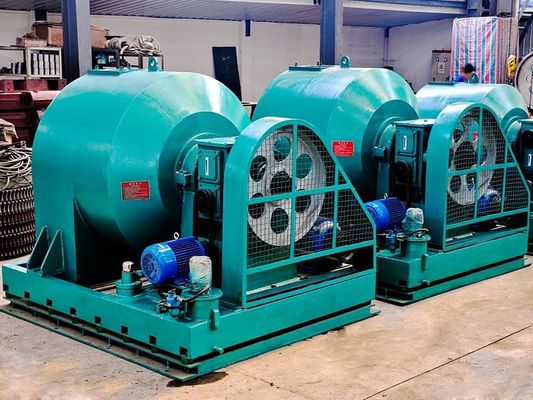

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 1





Item Unit LWS250× LWS350× LWS450× LWS520× LWS580× LWS650×
1025C(X) 1435C(X) 1845C(X) 2150C(X) 2400C(X) 2600C(X)
Throughput m3/h >1 >3~S >5-10 >10-15 >12-18 >15-20
Roller diameter mm 250 350 450 520 580 650
Length-diameter ratio mm   4.1 4.1 4.1 4.1 4.1 4
Speed rpm 5000 4000 3500 3200 3000 2800
Separation factor   3500 3136 3087 2982 2948 2854
Differential speed rpm 1~50 1~35 1~34 1~34 1~30 1~28
Main motor power kW 11 22 30 45 55/75 75/90
Ancillary motor power (kW) kW 4 5.5 7.5 15 18.5 22
Weight kg 1250 2500 4000 5200 6500 8000
Boundary dimension (L × W × H) mm 2500× 3700× 3800× 4800× 5300× 5600×
800×1150 1050×1400 1150×1600 1250×1800 1750×1382 1850×1500

company show

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 2

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 3

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 4

20m3/H Coal Chemical Industry Centrifuge Machine Environmental Protection 5
