Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft

Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft
Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft

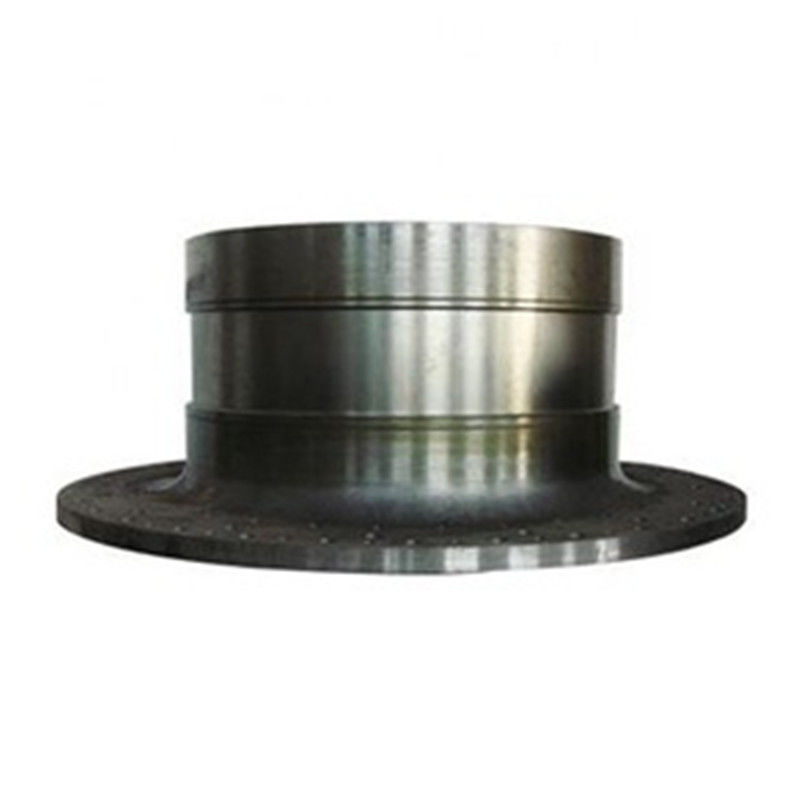

Large Image :  Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Material: Stainless Steel Product Name: Mill Parts Hollow Shaft
Name: Hollow Shaft Process: Forging+machining+heating Treatment
Certification: ISO9001:2008/CE Color: Customized
Keyword: Hollow Shaft Service: After-sale Service
Weight: 0.5~50t Standard: GB/T19001-2008/ISO9001:2008
High Light:

Hollow Shaft Castings And Forgings

,

Ball Mill hollow linear shaft

,

Castings hollow linear shaft

custom Ball mill wearparts forging casting steel hollow shaft

Ball mill parts forging casting steel hollow shaft



product material certificate detail
hollow shaft Steel and so on ISO/CE To figure custom



The process flow

Wood mold, modeling, pouring, pit - sand cleaning, heat treatment - finishing (inspection), rough machining - (inspection) - finishing (inspection) - assembly - packaging - delivery

Technological level

1. Adopt unique heat treatment technology to improve the hardness of hollow shaft and enhance the impact force;2. Cast high strength steel to ensure the quality of hollow shaft;3. According to the operation characteristics of the ball mill, the process structure of the hollow shaft was optimized, which greatly ensured the stability of the component under long-term operation and extended the service life of the component.Hollow shaft - fracture problem of ball mill

The hollow shaft is an important part of the barrel rotary bearing ball mill. In the process, the contact and the ball mill sphericalbush neck and neck tube contact arc casting defects and voids may not have stomata; in the processing, and the spherical bearing contact part processing after grinding processing, ensure the precision and smoothness therefore, the casting process requirements are very high.

Our company can Professionally manufacture the mill and the hollow shaft of the ball mill. The powerful casting and forging, heat treatment,machining ability, strict quality, process control method and perfect detection and experimental means make the mill shaft with a high reputation and exported overseas.

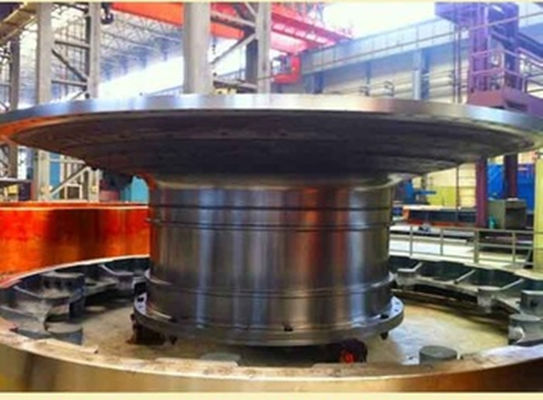

Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft 0

Advantages:

1, high quality steel

2, large R fillet

3, high strength bolts and cylinder connection

4, molten steel refining furnace (blowing argon and R-H vacuum treatment)

5, using special sand, strictly control the pouring temperature and casting speed

6, bolster bearing processing, to ensure that the coaxial degree of end mouth and roughness

7, casting rough mechanical properties and chemical composition (internal control standard)

8, ultrasonic examination after rough machining

9, ultrasonic detection and magnetic particle inspection after finishing

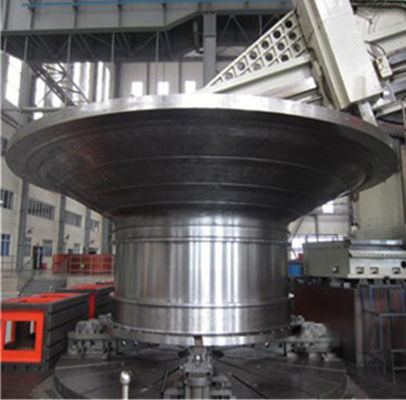

Custom Ball Mill Wearparts Castings And Forgings Hollow Shaft 1
