0.37~20m3 Ore Dressing Equipment Flotation Machine

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

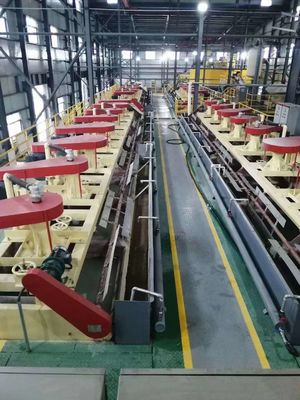

0.37~20m3 Ore Dressing Equipment Flotation Machine

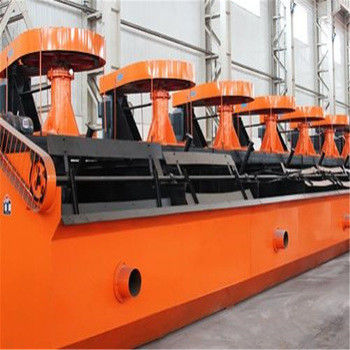

0.37~20m3 Ore Dressing Equipment Flotation Machine

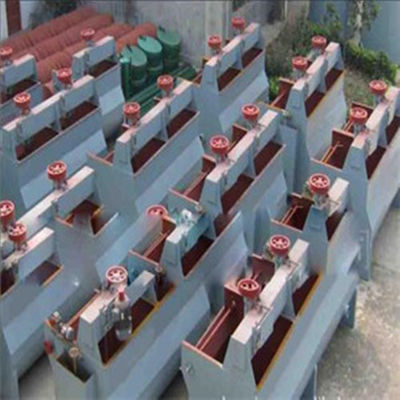

0.37~20m3 Ore Dressing Equipment Flotation Machine 0.37~20m3 Ore Dressing Equipment Flotation Machine 0.37~20m3 Ore Dressing Equipment Flotation Machine

Large Image :  0.37~20m3 Ore Dressing Equipment Flotation Machine

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Flotation Machine Keywords: Ore Dressing Equipment
Effective Volume(m3): 0.37-20 Capacity (m3/min): 0.2-12
Impeller Diameter (mm): 300-850 Impeller Revolutio(r/min): 169-442
Motor Power For Stir (kW): 1.5-45 Motor Power For Scraper (kW): 0.55-2.2
Single Tank Weight (kg): 468-9828 Advantage: Low Power Consumption
High Light:

20m3 Ore Dressing Equipment

,

20m3 mechanical flotation cell

,

0.37M3 mechanical flotation cell

low power consumption Long service life 0.37~20m3 Flotation machine



Flotation machine

Product Description
【Introduction】:SF flotation cell is a mechanical agitation type flotation machine with self-slurry suction and self-air suction
【Volume】:0.37~20m3
【Improvement】:Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.Forward type tank, small dead end, fast foam movement

0.37~20m3 Ore Dressing Equipment Flotation Machine 0

Advantages
Large air suction volume, low power consumption;
Long service life of wear parts Each tank with air suction, slurry suction and flotation function does not need any accessory
equipment to form flotation circle, which is convenient for process flow changing;
The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle;
Auto-control device of slurry volume, convenient adjustment ;

0.37~20m3 Ore Dressing Equipment Flotation Machine 1

Structure

The working principle of SF flotation cell: When the impeller rotates, the pulp in the upper and lower impeller cavities generates centrifugal force under the action of the upper and lower blades and is thrown to the four sides, forming a negative pressure zone in the upper and lower impeller cavities. At the same time, the pulp on the upper part of the cover plate is inhaled into the upper impeller cavity through the circulation hole on the cover plate, forming an upcycling of the pulp. When the lower blade throws the pulp around, the lower pulp adds to the center, thus forming the lower cycle of the pulp. The air is sucked into the upper impeller chamber through the suction tube and the central tube, and mixed with the pulp to form many fine bubbles. After steady flow through the cover plate, the air is evenly dispersed in the tank to form mineralized bubbles. The mineralized bubbles
rise to the foam layer and are scraped out by the scraper.

0.37~20m3 Ore Dressing Equipment Flotation Machine 2

Technical Parameters



Model
Effective Volume(m3)
Capacity (m3/min)
Impeller Diameter (mm)
Impeller Revolutio(r/min)
Motor Power for Stir (kW)
Motor Power for Scraper (kW)
Single Tank Weight (kg)
SF-0.37
0.37
0.2~0.4
300
352~442
1.5
0.55
468
SF-0.7
0.7
0.3~1.0
350
336~384
3
1.1
629
SF-1.2
1.2
0.6~1.6
450
312
5.5
1.1
1373
SF-2
2
1.5 ~3
550
280
11
1.5
1879
SF-2.8
2.8
1.5~3.5
550
280
11
1.5
1902
SF-4
4
2.0 ~4
650
235
15
1.5
2582
SF-6
6
3~6
760
191
30
2.2
3540
SF-8
8
4.0 ~8
760
191
30
2.2
4129
SF-16
16
5.0 ~16
850
169~193
45
1.5
7415
SF-20
20
10 ~12
850
169~193
45
1.5
9828
