Product Details:
Payment & Shipping Terms:
|
| Name: | Magnetic Separator | Roller Length Mm: | 300-1200 |
|---|---|---|---|
| Magnetic Field Strength Of Roller MT: | 1500-2000 | Magnetic Field Strength Of Plate MT: | 1300-1500 |
| Belt Width Mm: | 0.1-2 | Processing Capacity T/h: | 0.4-9.6 |
| Driving Motor Power Kw: | 1.5-2.2 | Material: | Carbon Steel |
| Feeding Size: | 0-2mm | Voltage: | 220V/380V |
| High Light: | 750kg High Intensity Magnetic Separator,1200MM High Intensity Magnetic Separator,750kg low intensity magnetic separator |
||

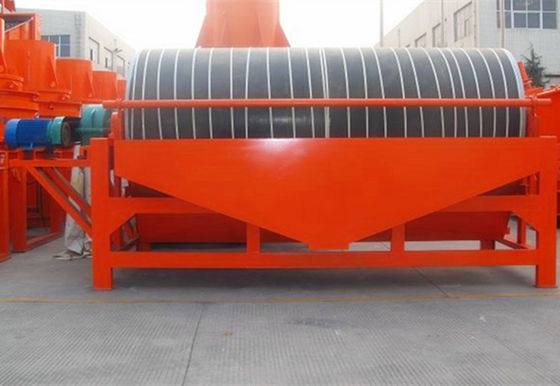

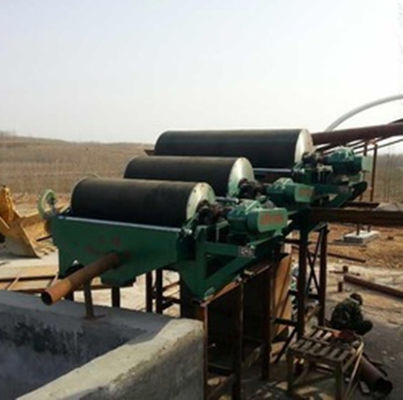

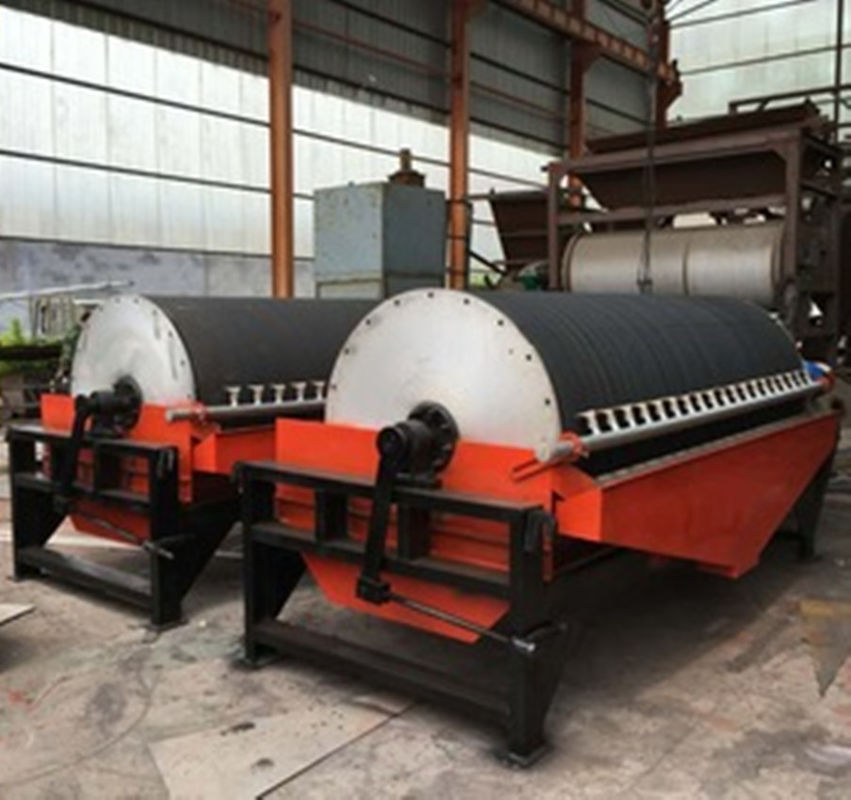

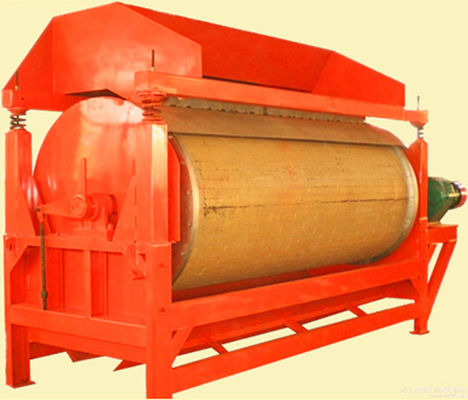

750kg High efficiency High magnetic field intensity Magnetic Separator
Introduction
For eliminate the ferromagnetic material with its powerful magnetic field, magnetic force and high iron-cleaning efficiency from powder or granular non magnetic material.
With the soft magnetic material to transmit magnetic force and the computerized simulating design for the magnetic roller and disk, the loss of magnetic field is reduced remarkably with the added no class changes vibrating device, To achieve the best eliminating efficiency, we use the frequency-change and unique weighing sensing technology to keep the material in the required date, Additionally, we used the magnetized disk with strong magnetic field before iron-elimination. As material passes disk, the weak magnetic material is magnetized.
Working principal
1.Complicate magnetic system,double magnetic pole structure, high magnetic field intensity
2.With the soft magnetic material to induce the magnetic force. The loss of magnetic field is reduced.
3.Equipped with control feeding system
4.Automatically wipe off the attracted weakly magnetic oxide and run for a long time
5.Surface magnetic induction density of the roller can be reach 2.2T
6.Rotary speed of the roller can be adjustable for frequency.
Advantage
High magnetic field intensity
Magnetic field depth, uneasy demagnetization
High efficiency
Strong adaptability of production fluctuation
Technical parameter
| Model | Roller length mm | Magnetic field Strength of roller mT | Magnetic Field strength of plate mT | Belt width mm | Processing capacity t/h | Driving motor Power Kw |
| CFLJ-3-I | 300 | 1500-2000 | 1300-1500 | 0.1-2 | 0.4-1 | 1.5 |
| CFLJ-3-II | ||||||
| CFLJ-5-I | 500 | 1500-2000 | 1300-1500 | 0.1-2 | 0.8-2 | 1.5 |
| CFLJ-5-II | ||||||
| CFLJ-8-I | 800 | 1500-2000 | 1300-1500 | 0.3-2 | 1.2-3.6 | 2.2 |
| CFLJ-8-II | ||||||
| CFLJ-10-I | 1000 | 1500-2000 | 1300-1500 | 0.5-2 | 3-7.2 | 2.2 |
| CFLJ-10-II | ||||||
| CFLJ-12-I | 1200 | 1500-2000 | 1300-1500 | 0.5-2 | 4.8-9.6 | 2.2 |
| CFLJ-12-II |
