30-60 Tph Ore Dressing Equipment Sand Washer Plant

30-60 Tph Ore Dressing Equipment Sand Washer Plant
30-60 Tph Ore Dressing Equipment Sand Washer Plant 30-60 Tph Ore Dressing Equipment Sand Washer Plant 30-60 Tph Ore Dressing Equipment Sand Washer Plant 30-60 Tph Ore Dressing Equipment Sand Washer Plant

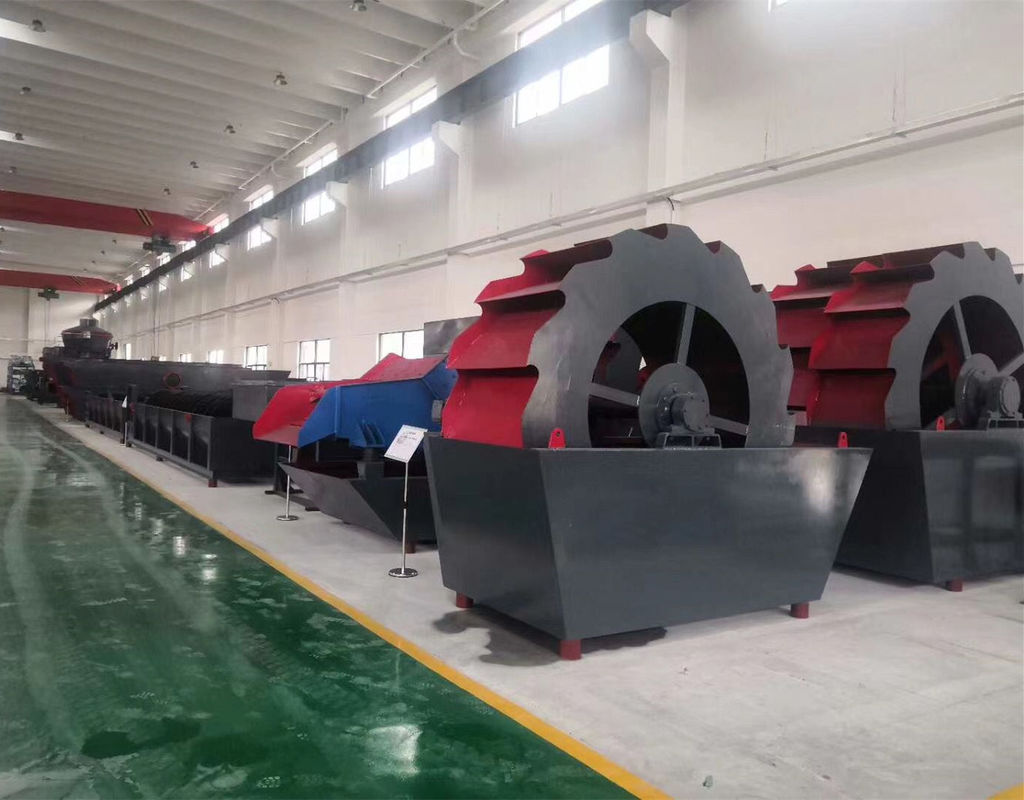

Large Image :  30-60 Tph Ore Dressing Equipment Sand Washer Plant

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Keyword: Sand Washer Impeller (mm): 2600-3600
Feeding Size (mm): ≤10 Capacity (t/h): 30-280
Motor Power (kw): 7.5-30 Weight: According To The Model
High Light:

60 Tph Ore Dressing Equipment

,

60 Tph Sand Washer Plant

,

30TPH Sand Washer Plant

sand washer 30-60 Tph Sand Washer Plant Ore Dressing Equipment



Product Description
Wheel bucket sand washer is one kind of sand washing machine working together with sand making machine, it can clean and separate dust from sand. It's new seal-structure and reliable driving device can make sure the cleaning effective. Bucket sand washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.

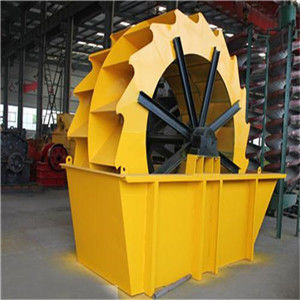

30-60 Tph Ore Dressing Equipment Sand Washer Plant 030-60 Tph Ore Dressing Equipment Sand Washer Plant 1
Working Principle
When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear; Sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, it breaks the water vapor which favors dewatering; At the same time, the strong water flow takes the impurities away and discharged from the overall; The clean sand is taken away by the impellers, when rising, the water drops down to the wash through from the nets, this can both dewater the sand and save waste; Finally, the sand is poured into the discharge chute and finished cleaning.

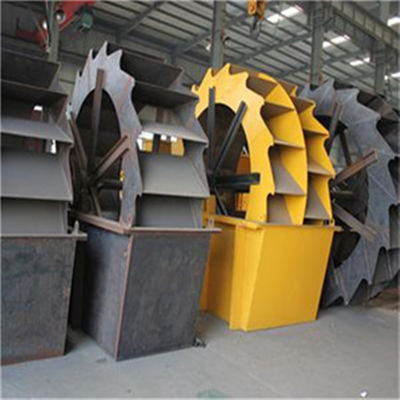

30-60 Tph Ore Dressing Equipment Sand Washer Plant 2
Features
1.Simple structure;
2.The bearing device of impeller drive is separated from water and 1 materials with water, to avoid the damage of the bearing;
3.New sealing structure and reliable transmission device;
4.Reasonable structure;
5.High capacity, low power consumption;
6.Easy structure, stable operation.

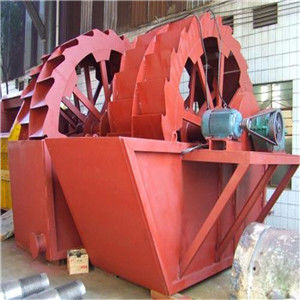

30-60 Tph Ore Dressing Equipment Sand Washer Plant 3

Technical Parameters

Model
Impeller
(mm)
Feeding size
(mm)
Capacity
(t/h)
Motor power
(kw)
XSD2610
2600
≤10
30-60
7.5
XSD2900
2900
50-90
15
XSD3016
3000
80-120
18.5
XSD3220
3000
120-200
22
XSD3620
3600
150-280
30
