0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption

0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption
0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption 0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption 0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption

Large Image :  0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Shaking Table Application: Gravity Separation
Beneficiation Area Of Bed Surface (m2): 0.5-7.6 Length (mm): 1100-4500
Width Of Driving End (mm): 500-1850 Width Of Concentration End (mm): 430-1550
Max. Feed Size (mm): 2 Capacity (t/h): 0.2-1.8
Stroke (mm): 6~30 Motor Power (kW): 1.1
High Light:

1.8 T/H Ore Dressing Equipment Shaking

,

1.8 T/H shaking table mineral processing

,

0.1 T/H shaking table mineral processing

0.1~1.8 t/h low consumption shaking table Ore Dressing Equipment

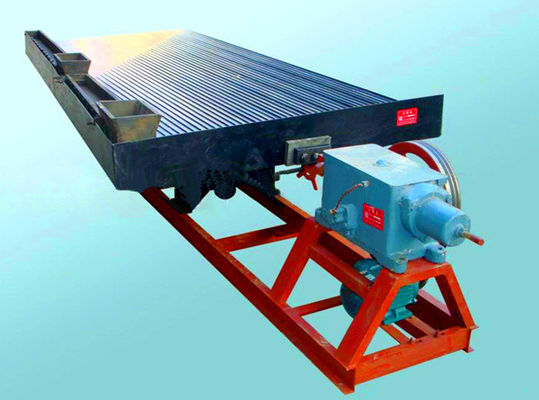

Product Structure

The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption 0

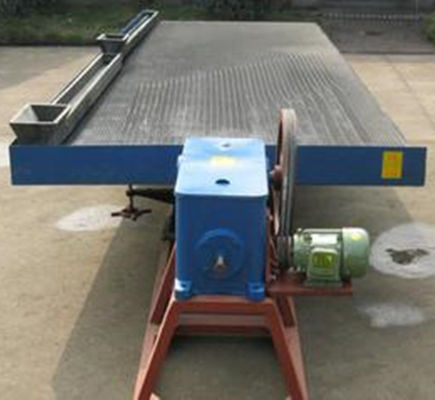

Product Advantages

The large range of transverse slope adjustment (0~10°),adjustable stroke;
Keep the stably operation when change the transverse slope and stroke;
Spring is arranged in the case with compact structure;
Without reagents consumption, little electricity consumption

0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption 1

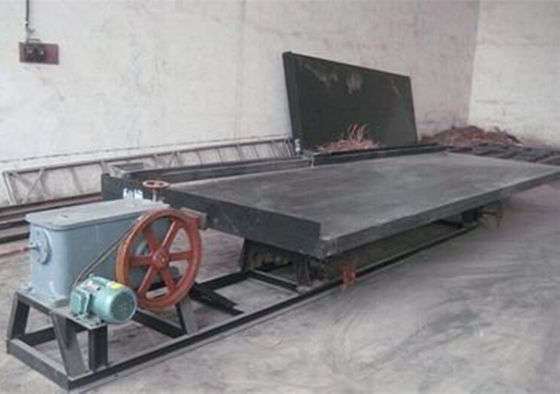

Technical Parameters



Model
XS 7.6
XS 4.08
XS 1.95
XS 0.5
Bed Surface Type
Coarse Sand Bed Surface
Fine Sand Bed Surface
Slurry Bed Surface
3 Kinds Of Bed Surfaces Selectable
Beneficiation Area of Bed Surface (m2)
7.6
7.6
7.6
4.08
1.95
0.5
Bed Surface Dimension
Length (mm)
4500
4500
4500
3000
2100
1100
Width of Driving End (mm)
1850
1850
1850
1320
1050
500
Width of Concentration End (mm)
1550
1550
1550
1100
850
430
Max. Feed Size (mm)
2
0.5
0.074
Ore Sand -2 Slurry -0.1
Ore Sand-2 Slurry -0.074
Ore Sand -2 Slurry -0.074
Capacity (t/h)
1 ~1.8
0.5 ~1
0.3~0.5
0.4~1.5
0.3~0.8
0.05~0.2
Feed Density (%)
20 ~30
18 ~25
15 ~20
10~30
Stroke (mm)
16 ~22
11 ~16
8~16
6~30
12 ~28
9~17
Jig Frequency (r/min)
220
250
280
210~320
250~450
280~460
Water Consumption (t/h)
0.7 ~1
0.4 ~0.7
0.4 ~0.7
0.3~1.5
0.2 ~1
0.1~0.5
Notch Groove Section Shape
Rectangle
Sawtooth Wave
Triangle
Rectangle, Sawtooth Wave and Triangle Selectable
Motor Power (kW)
1.1
1.1
1.1
1.1
1.1
0.55



0.1~1.8 T/H Ore Dressing Equipment Shaking Table Mineral Processing Low Consumption 2
