| Name: | Spiral Classifier | Spiral Diameter (mm): | 500-2400 |
|---|---|---|---|
| Speed Of Spiral(r/min): | 3.64-15.5 | Sand Return (t/h): | 143-2611 |
| Overflow (t/h): | 32-580 | Slope (°): | 12-18 |
| Power(KW): | 3-18.5 | Feature: | Easy Operation |
| Weight (t): | 1.9-26 | Usage: | Beneficiation Process |
| High Light: | 18.5 Kw Ore Dressing Equipment,18.5 Kw Mining Spiral Classifier,3Kw Mining Spiral Classifier |
||
3-18.5 kw Simple structure Easy operation mining Spiral Classifier

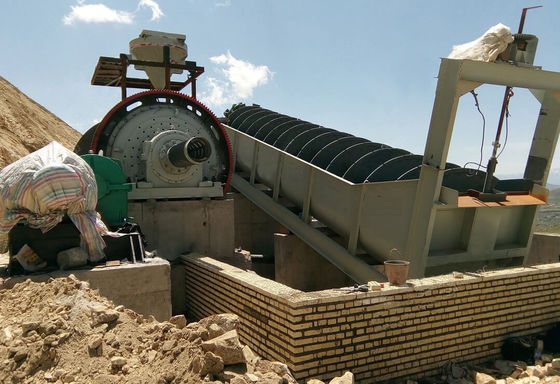

Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process.
Features
1. Simple structure, reliable and convenient operation, etc.
2. Easy operation and replacement of spare parts.
3. Long service life of spare parts.

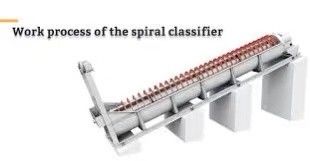

Working Princle
When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.
Parameters
| Model | Spiral diameter (mm) | Speed of Spiral(r/min) | Capacity | Slope (°) | Powe r(KW) | Weight (t) | |
| Sand Return (t/h) | Overflow (t/h) | ||||||
| FL-5 | 500 | 8-15.5 | 143-2611 | 32 | 12-18 | 3 | 1.9 |
| FL-7 | 750 | 4.5-10 | 256-564 | 65 | 12-18 | 3 | 2.7 |
| FL-10 | 1000 | 1.6-7.4 | 473-1026 | 85 | 12-18 | 5.5 | 4.1 |
| FL-12 | 1200 | 5-7 | 1170-1600 | 155 | 12-18 | 5.5 | 7.5 |
| FL-15 | 1500 | 2.5-6 | 70-115 | 235 | 12-18 | 7.5 | 10.5 |
| FL-18 | 1800 | 2.5-6 | 100-190 | 310 | 12-18 | 11 | 17.1 |
| FL-20 | 2000 | 2.5-6 | 160-230 | 400 | 12-18 | 15 | 19.3 |
| FL-24 | 2400 | 3.64 | 160-230 | 580 | 12-18 | 18.5 | 26 |
