Product Details:
Payment & Shipping Terms:
|
| Product Name: | GPY Series Disk Filter | Warranty: | 1 YEAR |
|---|---|---|---|
| Capacity: | 8-36 TPH | Filter Area: | 40-120 M2 |
| Dial Diameter: | 2700mm | Number Of Disk: | 4-12 |
| Feed Size: | Less Than 0.063 Mm Fraction Content Is Not More Than 35-40% | The Material Concentration: | 250-350 G/l |
| Product Water: | 22-24% | Weight: | MIN-5485 KG |
| Dimensions (LxWxH): | MIN-3217x3450x3275mm | Port: | QingDao,ShangHai,TianJin |
| High Light: | 36TPH Rotary Drum Vacuum Filter,8TPH Rotary Drum Vacuum Filter,36TPH continuous rotary disk filter |
||

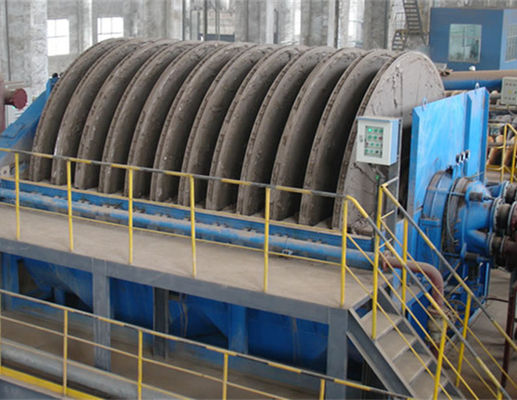

Introduction of Disk Rotary Drum Vacuum Filter:
This rotary drum vacuum filter uses a porous filter medium to trap solid particles in a mixture to achieve solid-liquid separation, widely used in the chemical, petroleum, pharmaceutical, light industry, food, mineral processing, coal and water treatment industries.
Automatic working, large processing capacity, high working efficiency.
Features of Disk Rotary Drum Vacuum Filter:
1, High vacuum degree, low moisture content of the filter cake.
2, The solid content of the filtrate is less than 0.005%. Can be reused, reduce emissions.
3, Compared with traditional filtration equipment, energy consumption is saved by more than 90%, energy consumption is low, and operating cost is low.
4, High automation and reduces labor intensity.
5, Compact structure, small footprint, convenient installation and maintenance.
6, Ceramic disc vacuum filter adopts advanced drainage system and can be used under any working conditions.
Structure of Disk Rotary Drum Vacuum Filter:
| 1 | Slime absorbing zone | Filter plate immersed in the slime while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. |
| 2 | Leaching zone | Filter cake coming out from slime hopper receives spray washing. |
| 3 | Drying zone | Continuous dehydration for filter cake is conducted with the action of high vacuum force. |
| 4 | Discharging Zone | Scraper will automaticly discharge materials once entering the vacuum-free condition. |
| 5 | Back flushing | Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked minihole entoectad. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain the efficient service life of ceramic plate. |

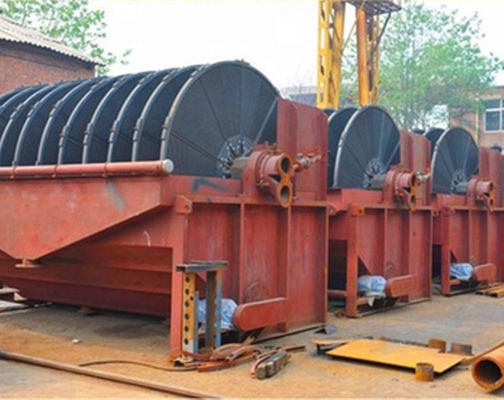

Details of Disk Rotary Drum Vacuum Filter:
CITIC IC began in 1956-The largest mining equipment and cement equipment manufacturers in China. CITIC IC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.
CITICIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.
CITICIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.
Aftersales service
CITIC Heavy Industries is your business partner in the After Market.
CITICIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
