| Name: | Sprial Separator | Production Capacity: | 4-6t/h |
|---|---|---|---|
| Dimension(L*W*H): | 1360*1360*5230mm | Weight: | 600kg |
| Warranty: | 1 YEAR | Model: | 5LL-1200 |
| External Diameter: | 1200mm | Screw Distance: | 900/720/540mm |
| Ratio(scroll Distance/diameter): | 0.75/0.6/0.45 | Transverse Obliqiuty: | 9' |
| Max. Scroll Buckets For Each Manchine: | 4 | Feeding Granularity: | 0.3-0.03mm |
| Feeding Thickness: | 25-55% | Capacity: | 4-6t/h |
| Port: | QingDao,ShangHai,TianJin | ||
| High Light: | 6t/h Gravity Spiral Chute,6t/h Gravity Separator Machine,Chute 6t/h Ore Dressing Equipment |
||

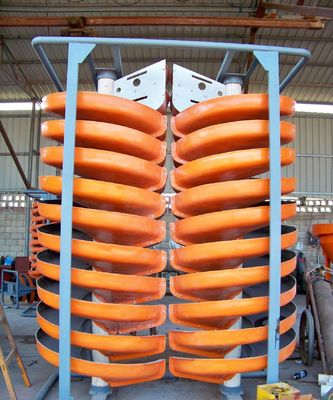

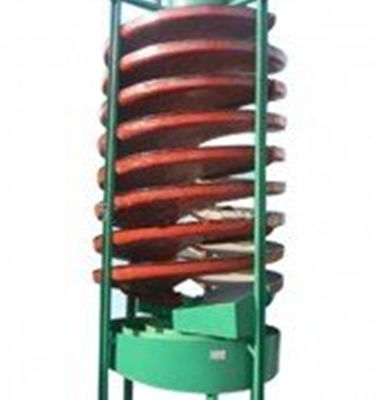

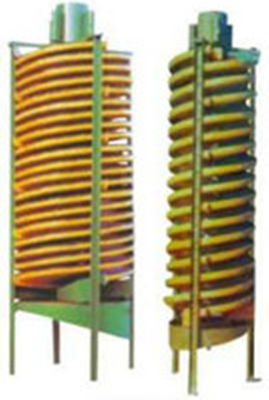

High Quality Spiral Chute / Gravity Separator Machine Spiral Separator
Mineral separation equipment spiral chute separator
How is woks: Ore pulps are uniformly fed into machine and form different layers as they pass across chute. Heavy minerals precipitate to bottom and are moved toward inner edge by the comprehensive action of various forces; light minerals are moved toward outer inner due to the speedy rotation. As a result, mineral particles with different density are divided into three zones---concentrate, middling and tailing.
Spiral concentrator (spiral chute) is a gravity separation equipment of separation different weight mineral by inertial centrifugal force pulp produced in helix turning motion, it widely used in enrichment of particle size 0.3-0.02mm fine minerals like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores, and non-metallic minerals which have a big enough specific gravity difference.
Our spiral concentrator (spiral chute) is made of the fiberglass lined with wear-resistant resin and emery cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion, no noise and non power required.
Product Advantage
1.Less floor space; easy and stable operation; rational configuration; convenient installation
2.High processing capacity and efficiency
3.Moisture proof, antirust, corrosion resistant, adaptive, noiseless
Product Feature
Spiral chute (glass fiber reinforced plastics spiral chute) present advantages as follows: less floor space; easy and stable operation; rational configuration; convenient installation; high processing capacity and efficiency; moisture proof; antirust; corrosion resistant; adaptive and noiseless, etc.
Efficient spiral chute separator
| Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Feeding size(mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
| Feeding density(%) | 20-45 | 25-50 | 25-55 | 25-55 | 25-55 | 25-55 | |
| Capacity(t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.1-0.2 | |
| Size | Length | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
Width | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Height | 6500 | 5230 / 4360 | 5230/4360 | 4000 | 2150 | 1500 | |
| Weight(kg) | 1400 | 800 | 600 | 450 | 350 | 140 | |
| item | description |
| materials | glass, metal, ceramic |
| feeding | 0.02-4mm |
