| Name: | Hydrocyclone | Condition: | New |
|---|---|---|---|
| Warranty: | 1 YEAR | Core Components: | Pump |
| Standard: | LKH--300 | Inner Diameter (mm): | 300 |
| Feeding Caliber (mm): | 64,75 | Overflow Pipe Diameter (mm): | 65,80, 100,120 |
| Sand Setting Caliber (mm): | 20,25,30, 35,40 | Cone Angle: | 20,15 |
| Maximum Feeding Granularity (mm): | 5 | Port: | Qingdao, Tianjin, Shanghai |
| High Light: | Diameter 30mm Hydrocyclone Unit,Diameter 30mm Solid Liquid Cyclone Separator,Hydrocyclone Solid Liquid Cyclone Separator |
||

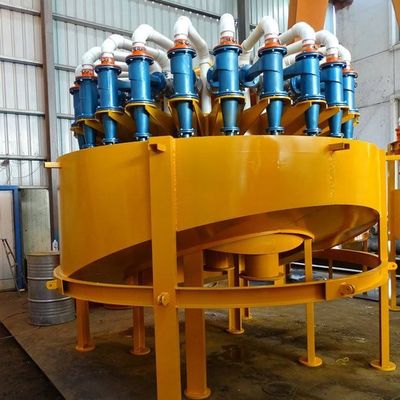

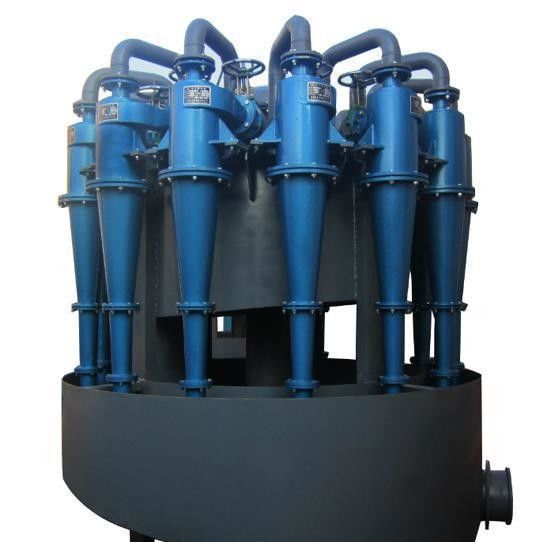

Ore Dressing Equipment Hydrocyclone Unit Solid Liquid Cyclone Separator
Hydrocyclone is used for separating and removing heavy mud and sand of coarse particles and sometimes for dehydration of slurry. The Hydrocyclone separator has two types of pressure type and gravity type made up of either cylindrical structure or metal pipe. Slurry is fed through the top of the structure (or metal pipe) by means of pressure or gravity along the tangent line. Coarse and thick particulate matters are thrown to the wall, rotated down and discharged together with the concentrated liquid formed under the action of centrifugal force. Small particulate matters are discharged together with secondary upward vortex after rotated to some extent.
Our cyclone separator can be used for many mineral grinding,such as gold ore,copper ore,iron ore and zinc ore and so on. When you find xinhai , you find the better mining machinery manufacturers.
|
Features:
1. low equipment cost 2. easy mounting and dismantling 3. convenient maintenance 4. small floor space required 5. low capital expenditure 6. large processing capacity 7. a large fluctuation of process. |
Solid liquid cyclone separator —Advantages
The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification. The rational length proportion of column and cone and reasonable insert depth of vortex finder Wear – resistant rubber as liners prolongs the service life by 2-4 times
