High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher

High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher
High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher

Large Image :  High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Impact Crusher Rotor Spec (mm): 1500*2000
Feed Opening Size (mm): 1315*2040 Max Feeding Size(mm): 700
Capacity (t/h): 300-500 Motor Power(kw): 400-450
Weight(t): 42.8 Overall Dimension(L*W*H)mm: 3890*3560*3220
Applicaton: Mining, Metallurgy, Cement, Building Materials,chemical Industry Keyword: Crushing Equipment
High Light:

50Tph Limestone Crush Machine

,

30Tph Limestone Crush Machine

,

50Tph horizontal shaft impact crusher

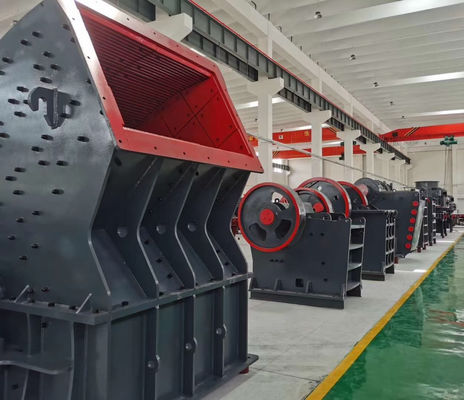

High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 0

Impact crusher is suitable for the mining, metallurgy, cement, building materials,chemical industry, water and electricity, etc. We produces the hard rock impact crusher adopts advanced technology at home and abroad. Equipped with high chromium plate hammer, unique impact plate, row partical size is adjustable, the broken process can be simple, can be used for crushing more hard rock.

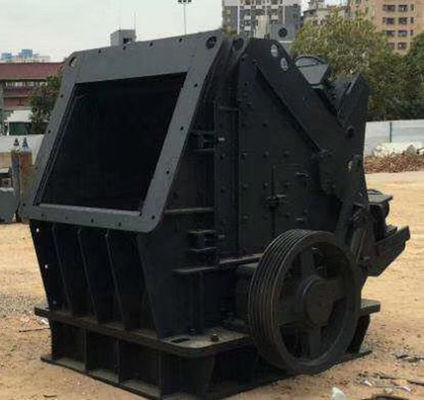

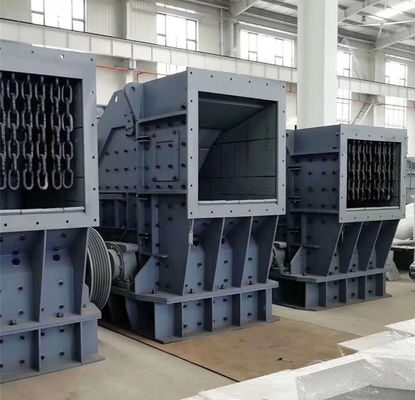

High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 1High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 2

Parameter





Model
Rotor Spec (mm)
Feed opening size (mm)
Max
Feeding size(mm)
Capacity (t/h)
Motor Power(kw)
Weight(t)
Overall Dimension(L*W*H)mm
PF-1007
1000*700
400*730
300
30-50
37-55
9.5
2400×1558×2660
PF-1010
1000*1050
400*1080
350
50-80
55-75
12.2
2400×2250×2620
PF-1210
1250*1050
400*1080
350
70-120
110-132
14.9
2690×2338×2890
PF-1214
1250*1400
400*1430
350
110-180
132-160
18.6
2690×2688×2890
PF-1315
1320*1500
860*1520
500
160-250
180-260
19.3
3096×3273×2667
PF-1320
1320*2000
860*2030
500
160-350
300-375
28
3096×3560×3185
PF-1520
1500*2000
1315*2040
700
300-500
400-450
42.8
3890×3560×3220

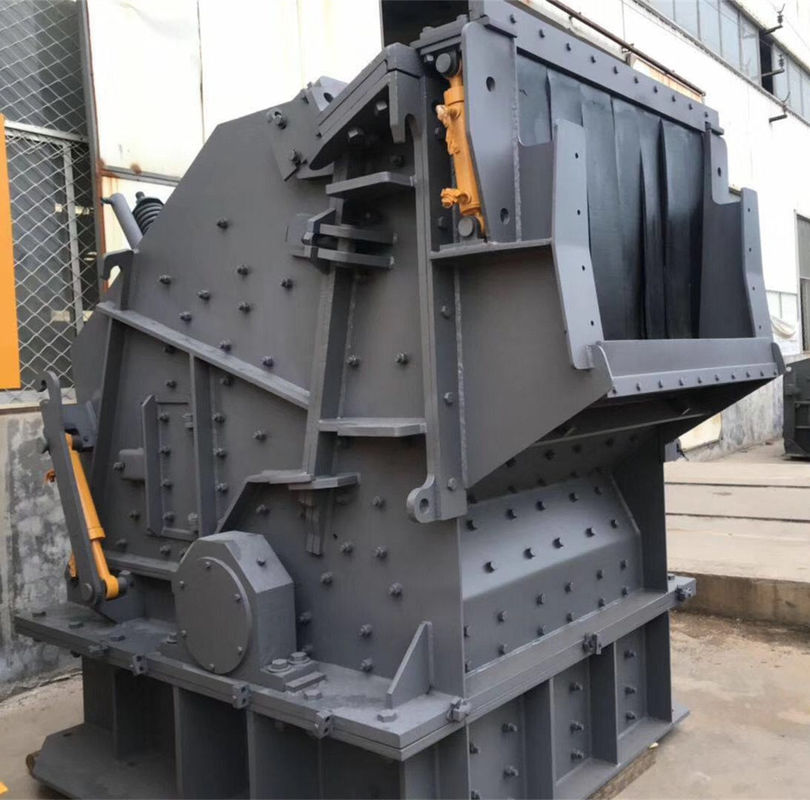

High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 3High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 4High Productivity 30-50 Tph Limestone Crush Machine Impact Crusher 5
