Product Details:
Payment & Shipping Terms:
|
| Features: | Low Energy Consumption | Product Name: | Hammer Crusher |
|---|---|---|---|
| Max Feeding Size (mm): | 350 | Discharge Size (mm): | <15 |
| Capacity (t/h): | 100~150 | Motor Power (kw): | 5.5-480 |
| Overall Size (L*W*H) (mm): | Different Model | Usage: | Powder Processing |
| Quality: | ISO/CE | Advantage: | Longer Service Life |
| High Light: | 150TPH Hammer Stone Crusher Machine,100TPH Hammer Stone Crusher Machine,150TPH hammer mill rock crusher |
||

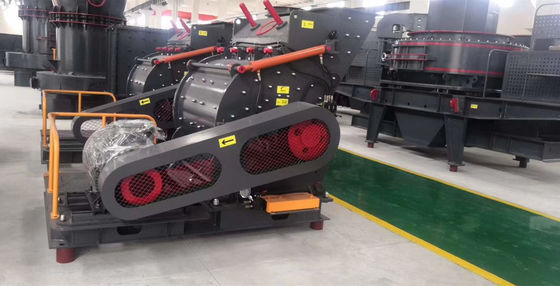

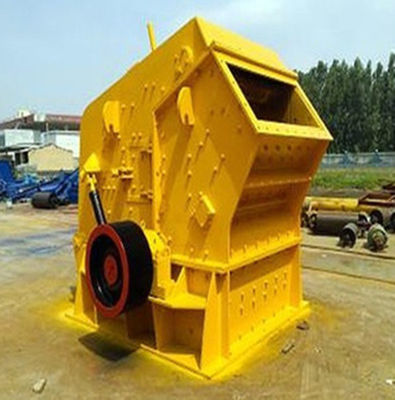

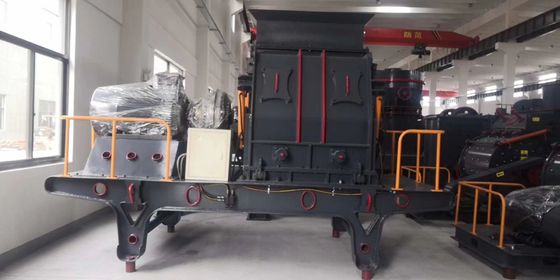

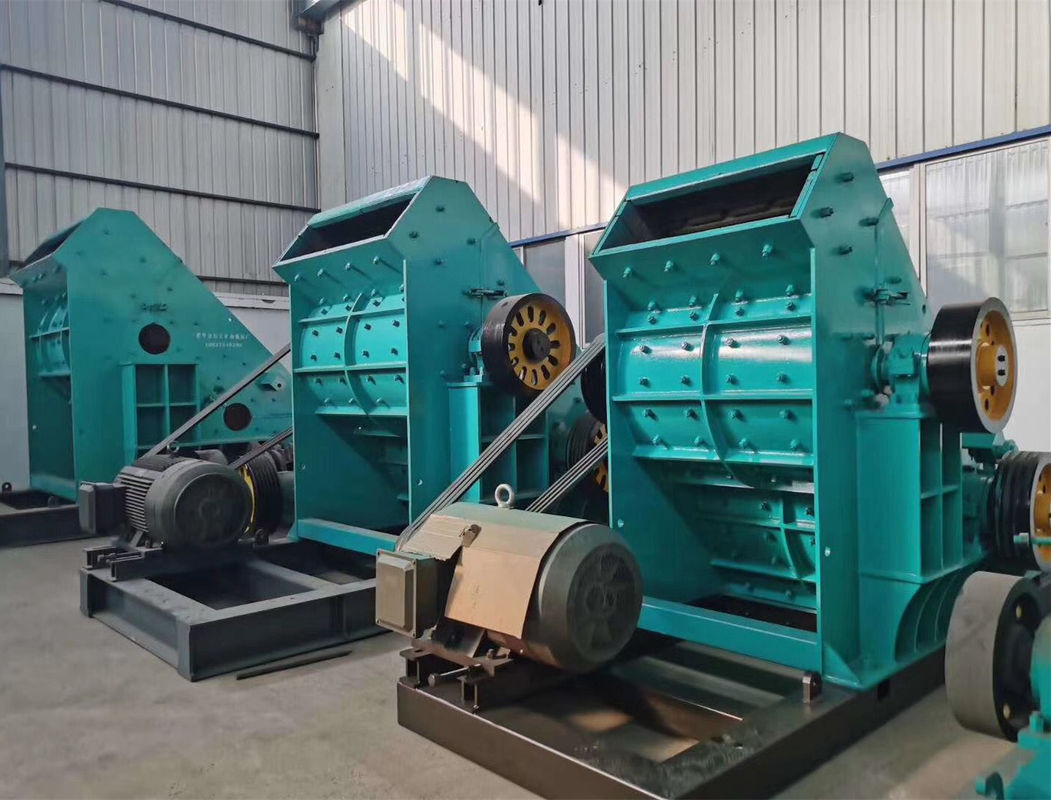

high quality low energy consumption hammer crusher efficency crushing equipment
Features
1. Small cubic measurement , large reduction ration , low energy consumption;
2. Even size. Little exceedingly-crushing powder;
3. Wear resistant hammer heads,longer service life,high capacity and easy adjusting of discharging grid plate;
4. The crushing cavity is deep and no dead area, these structure improve thethroughput;
5. Rotating part with thermal refined structure by CNC, make the rotating part higher toughness.
Technical parameters
| Model | Max feeding size (mm) | Discharge size (mm) | capacity (t/h) | Motor power (kw) | Overall size (L×W×H) (mm) |
| PC-300*200 | 150 | <15 | 1~3 | 5.5 | 800*570*750 |
| PC-400*300 | 200 | <25 | 3~8 | 7.5 | 900*670*860 |
| PC-600*400 | 250 | <30 | 6~15 | 22 | 1200*1050*1200 |
| PC-800*600 | 250 | <35 | 16~35 | 55 | 1310*1180*1310 |
| PC-1000*800 | 350 | <35 | 25~50 | 75 | 1600*1390*1575 |
| PC-1000*1000 | 350 | <35 | 30~55 | 132 | 1800*1590*1775 |
| PC-1250*1250 | 350 | <35 | 35~65 | 180 | 2060*1600*1890 |
| PC-1400*1400 | 350 | <35 | 50~100 | 280 | 2365*1870*2220 |
| PC-1600*1600 | 350 | <35 | 100~150 | 480 |
3050*2850*2800 |
