CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle

CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle
CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle

Large Image :  CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Pieces
Price: $3,000.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 1000.0 Piece/Pieces per Month
Detailed Product Description
Name: Ship Stainless Steel Marine Rudder Pintle Condition: New
Warranty: 1 YEAR Material: Steel
Steel Castings: Below 150t Per Piece Steel Forgings: Below 60t Per Piece
Certificate: CCS.ABS.LRS.BV.GL.DNV.NK Port: QingDao,ShangHai,TianJin
High Light:

ZY Castings And Forgings

,

CCS Marine Rudder Pintle

,

ZY Marine Rudder Pintle

Ship Stainless Steel Marine Rudder Pintle

Product Description

A pintle is a pin or stud that attaches the rudder to the rudder post or rudder arm. Generally made into a cone, according to its position and function, respectively known as the upper pintle, the lower pintle. Rudder pintle is a hull structure consisting of upper rudder pintle and lower rudder pintle. Is a Marine engineering term. During maintenance, the gap of rudder pintle is often too large, which exceeds the requirements of vessel inspection. In fact, the rudder pintle is in good condition, and the rudder pintle bearing is too worn, which leads to the replacement of rudder pintle bearing.



The Marine Rudder Pintle is designed and manufactured for the rudder system of kinds of ships, It suitable for different size rudder stock, from 50mm to 600mm. There are upper rudder pintle and lower rudder pintle.

The diameter and length of the rudder pintle will be decided by the design of the whole rudder system.



Marine Forging and Marine Casting
Steel castings (below 150t per piece) Stern, stern tube,the overall and fission rudder, etc.
Steel forgings ( below 60t per piece) Propeller shaft, couplings, intermediate shaft, rudder stock, rudder pintle , bolt and nut, etc.
Standard DIN,JIS,ASTM,UNI,JB,ISO, etc.
Certificate and classification certificates CCS,ZY,ABS, GL,BV,DNV and LR
Apply to Marine,ship,boat
OEM service offered According to customer’s drawings

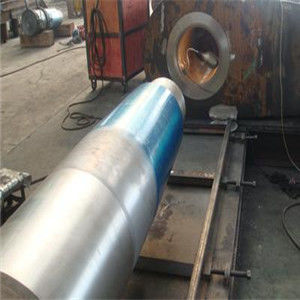

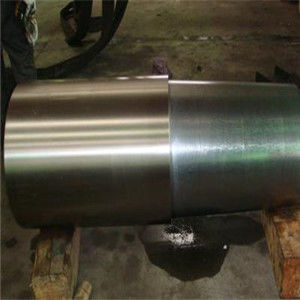

CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle 0CCS ZY Castings And Forgings Ship Stainless Steel Marine Rudder Pintle 1
