fine materials 2-8.5 r/min Spiral Classifier Mining Equipment

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

fine materials 2-8.5 r/min Spiral Classifier Mining Equipment

fine materials 2-8.5 r/min Spiral Classifier Mining Equipment
fine materials 2-8.5 r/min Spiral Classifier Mining Equipment fine materials 2-8.5 r/min Spiral Classifier Mining Equipment fine materials 2-8.5 r/min Spiral Classifier Mining Equipment fine materials 2-8.5 r/min Spiral Classifier Mining Equipment fine materials 2-8.5 r/min Spiral Classifier Mining Equipment

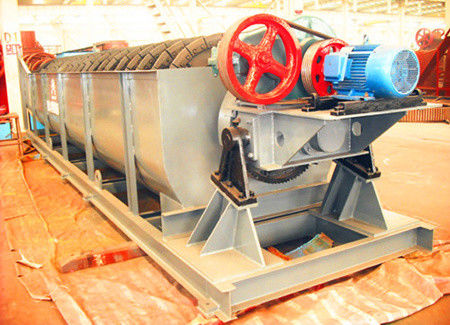

Large Image :  fine materials 2-8.5 r/min Spiral Classifier Mining Equipment

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Spiral Classifier Spiral Diameter (mm): 500-3000
Trough Length (mm): 4500-12500 Spiral Rotate Speed (r/min): 2-8.5
Processing Capacity(t/d)Overflow: 88-890 Sand -return: 143-11650
Motor Power (kw )Driving: 1.1-30 Lifting: 1.5-3*2
Angle Of Inclination (%): 14-18 Usage: Filter Materials
High Light:

8.5 R/Min Spiral Classifier

,

2R/Min Spiral Classifier

,

8.5R/Min screw classifier

high quality Spiral Classifier Mining Equipment Spiral Classifier



Spiral Classifier

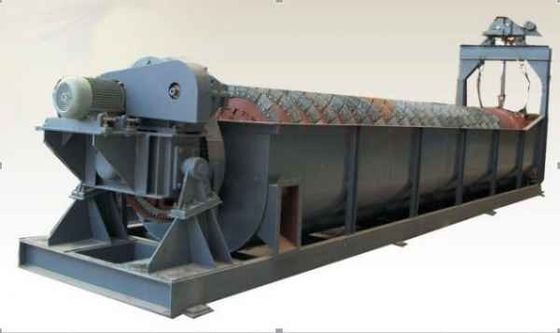

This spiral classifier can filter materials and send coarse materials to the feeding mouth and discharge fine materials from the pipe. The seat of the machine features channel steel material, while the body is armor plated and the spiral axle is made of cast iron for durability. The machine's lifting equipment can be used manually or electronically.



A Spiral Classifier is a machine that is primarily used to classify the slimes (fines) from a coarser, sandy sized material. It has a inclined trough with one or two spirals revolving slowly and free from touching the sides or bottom of the tank. The motion of the spiral creates Pool Hindered Settling in the bottom pool area, where the agitation of the water hinder the fines from settling to the bottom, but the coarser particles do settle and are carried up the slope by the revolving spiral, to the discharge, located at the top of the classifier. Then gravity flow or pumps are used to move the coarse material to the next stage in the process, the fines overflow from the pool area. The pool area normally has an adjustable wier, which will determine the amount of time material is in the pool area, and subsequently the coarseness of the discharge from the pool area, with a shorter residence time the coarser the discharge, along with the fines. Therefore, some control of the classification size can be accomplished by adjusting the weir height up or down, to give more of less residence time in the pool area.

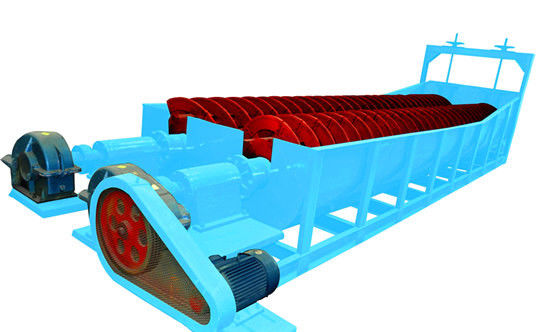

fine materials 2-8.5 r/min Spiral Classifier Mining Equipment 0

Advantages
Heavy duty, rugged construction
Powerful self-contained spiral lifting device
Continuous spiral raking
Optimal particle size range 800 to 75 microns

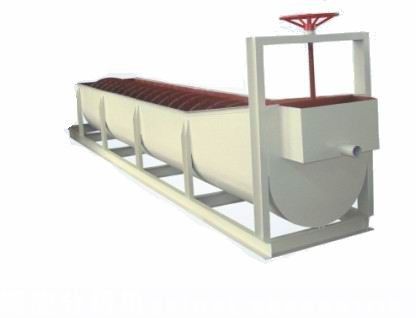

fine materials 2-8.5 r/min Spiral Classifier Mining Equipment 1

technical specifications





Type Model

Spiral

Diameter
(mm)

Trough
Length
(mm)

Spiral rotate
speed

(r/min)

Processing
capacity(t/d)
Motor Power
(kw )

Angle of inclination

(%)

Weight

(t)

Overflow Sand
-return
Driving Lifting

High

weir

single spiral classifier

FLG-5 500 4500 8.5-15.5 22 143-261 1.1 1.5 14-18 1.6
FLG-7 750 5500 4.5-9.9 65 256-564 3 2.2 14-18 2.9
FLG-10 1000 6500 3.6-7.6 85 473-1026 5.5 3 14-18 4.4
FLG-12 1200 6500 6 155 1170-1600 5.5 4 14-18 9.4
FLG-15 1500 8400 2.5-6 235 1140-2740 7.5 4 14-18 11.7
FLG-20 2000 8400 3.6-5.5 400 3890-5940 11/15 15×2 14-18 21.5
FLG-24 2400 10500 3-5 580 6800 22 22×2 14-18 33.5
FLG-30 3000 12500 2-4 890 11650 30 3×2 14-18 37

High

weir

double spiral

2FLG-12 1200 6500 6 310 2340-3200 5.5×2 3×2 14-18 15.8
FLG-15 1500 8400 2.5-6 470 2800-5480 7.5×2 4×2 14-18 22.1
FLG-20 2000 8400 3.6-5.5 800 7780-11880 15×2   14-18 36.4
FLG24 2400 9500 3.67 1160 13600 18.5×2 2.2 14-18 48.9
FLG-30 3000 12500 3.2 1785 23300 30×2 2.2 14-18 73.0
Sunken single spiral FLC-10 1000 8400 6-7.4 75 473-1026 5.5 3 14-18 6.0
FLC-12 1200 8400 5-7 120 1170-1630 7.5 4 14-18 11.0
FLC-15 1500 10500 2.5-6 185 1140-2740 7.5 4 14-18 15.3
FLC-20 2000 11500 3.6-5.5 320 3890-5940 11/15 1.5×2 14-18 29.1
FLC-24 2400 10500 3.64 455 6800 22 2.2×2 14-18 35.3
FLC-30 3000 14300 3.2 705 11650 30 3×2 14-18 43.5
Sunken double helix classifier 2FLC-12 1200 8400 6 240 1770-2800 7.5×2 3×2 14-18 19.6
2FLC-15 1500 10500 2.5-6 370 2280-5480 11×2 4×2 14-18 27.5
2FLC-20 2000 12900 3.6-5.5 800 7780-11880 15×2   14-18 5.0
2FLC-24 2400 11130 3.67 910 13700 37×2   14-18.5 65.3
2FLC-30 3000 14300 3.2 1410 23300 45×2   14-18.5 84.9
