Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification

Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification
Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification

Large Image :  Iron Ore 330r/Min 35TPH Stone Jaw Crusher machine With ISO/CE Certification

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
After-sales Service Provided: Online Service Discharge Opening (mm): 10-400
Feed Opening (mm): 150x250-1600x2100 Rotation Speed Of Eccentric Shaft: 160-330(r/min)
Color: Customizable Max Feeding Size: 200-1020mm
Processed Materials: Iron Ore Quality: Advanced Technology
Motor: Chinese Famous Brand Machines Classification: ISO/CE
High Light:

35TPH Stone Jaw Crusher Machine

,

330r/Min Stone Jaw Crusher Machine

,

330r/Min small portable jaw crusher

jaw crusher high quality stone crusher with ISO/CE certification



Jaw Crusher : PE Series Jaw Crusher



Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation. In recent years, to satisfy the requirement of crushing micro-carbon ferro chrome with high strength and high hardness in the industrial departments of metallurgy, mine and building, our company has specially researched and manufactured powerful jaw crusher.

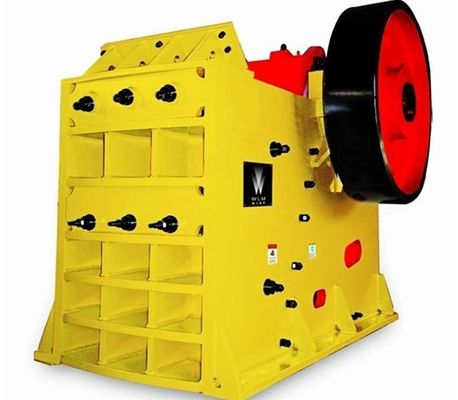

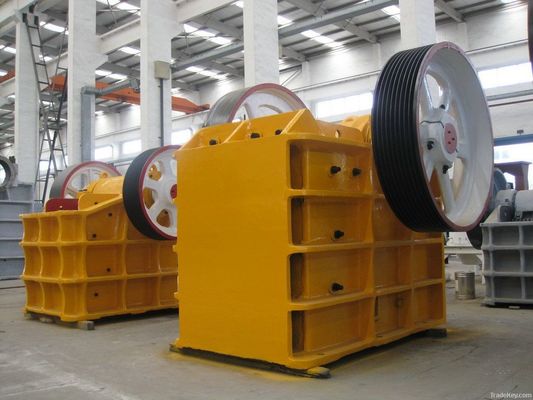

jaw crusher.jpg

Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.

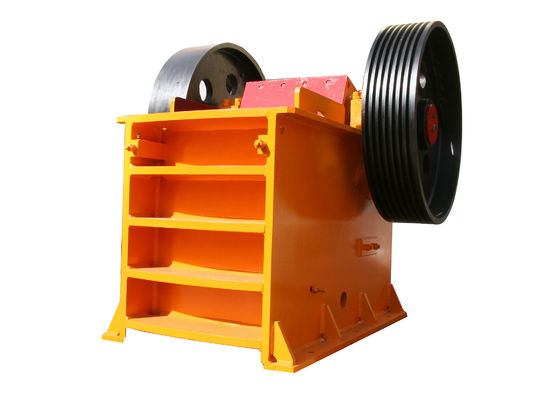

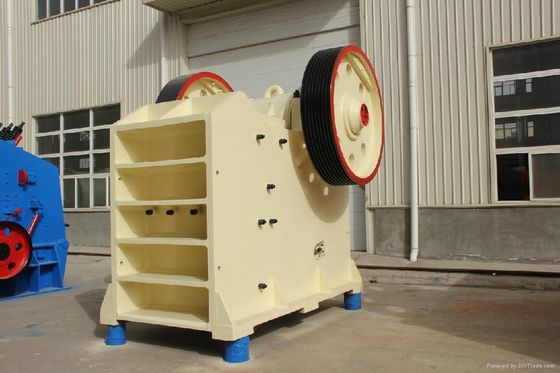

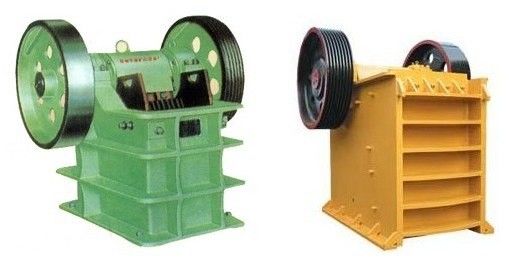

small jaw crusher  (5)small jaw crusher  (3)small jaw crusher  (4)

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
