3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

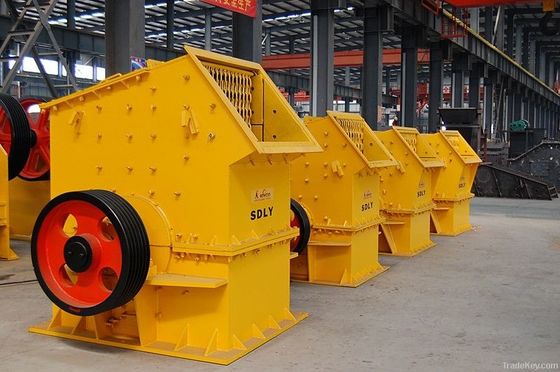

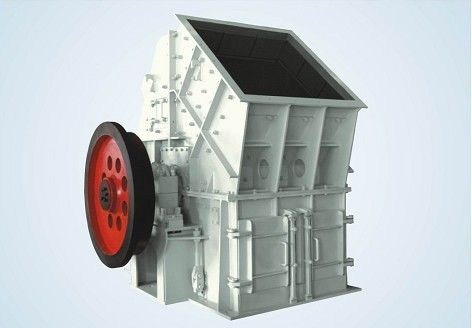

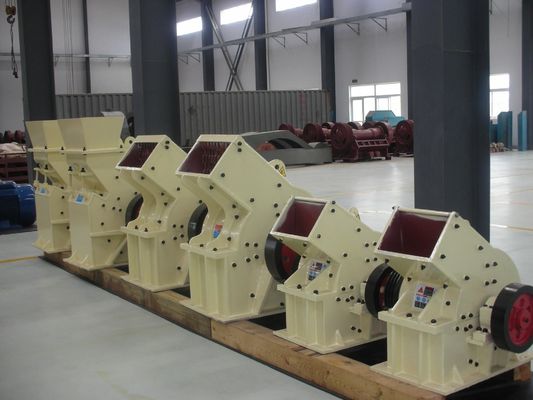

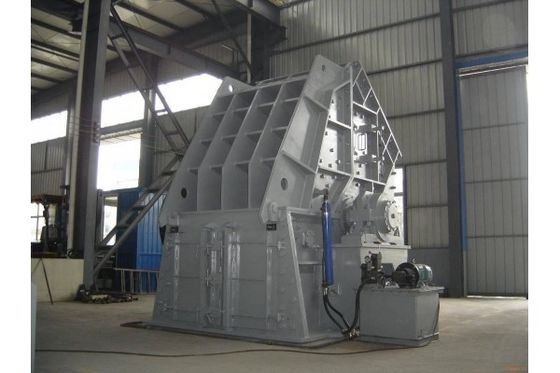

3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing

3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing
3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing 3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing 3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing 3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing 3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing

Large Image :  3-260 Tph Hammer Stone Crusher Machine Small Stone Crusher For Secondary Crushing

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
After-sales Service Provided: Online Support Rotor Length (mm): 400-1600
Material Strength: Less Than 150Mpa Max. Feeding Side Length(mm): 80-350
Discharging Particle Size(mm): ≤25 Material: Cast Steel
Model: Variety Quality: Advanced Technology
Motor: Chinese Famous Brand Raw Material: Motorcycle
High Light:

260 Tph Hammer Stone Crusher Machine

,

3Tph Hammer Stone Crusher Machine

,

260 Tph Small Stone Crusher

3-260 tph hammer stone crusher small stone crusher for secondary crushing

PC series hammer crusher

PC Series Hammer Crusher can be used to break the brittle material whose compression strength is less than 150Mpa such as the secondary and fine crushing of limesone,coke and coal etc.but also be used in processing medium hardness material in metallurgy, chemistry industry, e.g. carbon, limestone, and artificial aggregate.

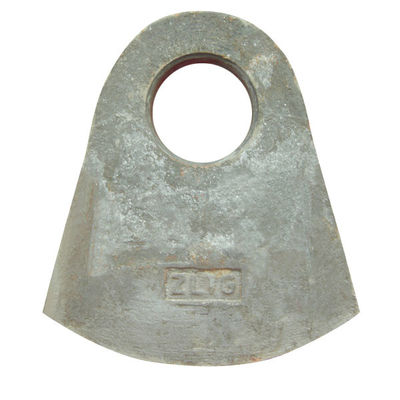

PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.

Specification of hammer crusher



Type Rotor diameter
(mm)
Rotor length
(mm)
Max. Feeding side length(mm) Discharging particle size(mm) Production capacity
(t/h)
Power of motor (KW) Weight
(t)
Outline dimension(mm) Length× width× Height
PC-0404 φ400 400 80 ≤15 3--5 7.5 0.9 1518 1010 630
PC-0604 φ600 400 100 ≤15 6—10 18.5 1.5 1755 1210 785
PC-0606 φ600 600 100 ≤15 10—18 37—45 2.5 2115 1210 785
PC-0808 φ800 800 160 ≤15 18—30 55—75 3.5 2855 1360 1040
PC-1010 φ1000 1000 200 ≤20 35—55 110-132 7.6 3514 1850 1400
PC-1012 φ1000 1200 200 ≤20 45—65 132 8.5 4055 1850 1400
PC-1212 φ1250 1200 200 ≤20 70--110 160-185 14.1 4475 1920 1910
PC-1414 φ1430 1400 250 ≤25 110--160 280 25.6 5467 2465 2260
PC-1616 φ1600 1600 350 ≤25 180--260 500 35.2 5800 3780 2700

Note:
1. This equipment can control the Max. Value of the discharging particle size with screen plate.
2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity.

640 hammer crusher15640 hammer crusher08640 hammer crusher13
