Product Details:
Payment & Shipping Terms:
|
| Product Name: | Jaw Crusher Machine | Feeder Opening Size(mm): | 1500*1800 |
|---|---|---|---|
| Max. Feeding Size (mm): | 1200 | Discharging Opening Size(mm): | 40-360 |
| Capacity (t/h): | 15-1100 | Motor Power (kw): | 30-280 |
| Overall Dimension (mm): | Different Model | Usage: | Primary Or Secondary Crushing |
| Advantage: | High Efficiency | Quality: | ISO CE |
| High Light: | 1100T/H Jaw Rock Crusher,1500*1800 Jaw Rock Crusher,1500*1800 secondary jaw crusher |
||

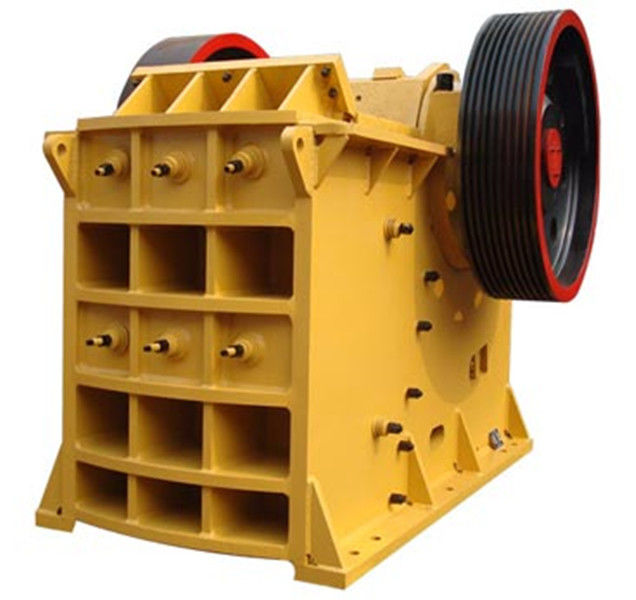

Jaw crusher high Efficiency primary or secondary crushing machine
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
| PE400x600 | 400x600 | 350 | 40-90 | 15-60 | 30 | 1700x1750x1680 |
| PE500x750 | 500x750 | 425 | 50-100 | 40-130 | 45 | 2150x1900x1950 |
| PE600x900 | 600x900 | 500 | 60-125 | 90-180 | 55 | 2500x2010x2350 |
| PE750x1060 | 750x1060 | 630 | 60-150 | 110-380 | 110 | 2630x2310x3110 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 220-450 | 132 | 3720x2850x3250 |
| PE1000x1200 | 1000x1200 | 850 | 200-300 | 280-560 | 160 | 3820x2850x3250 |
| PE1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 220 | 3710x3446x4075 |
| PE1500x1800 | 1500x1800 | 1200 | 210-360 | 520-1100 | 280 | 5100x4700x4300 |
