Product Details:
Payment & Shipping Terms:
|
Certification: | ISO CE | Warranty Of Core Components: | 1 YEAR |
---|---|---|---|
Used For: | First And Secondary Crushing Stages | Installation: | Engineer Guide |
Weight: | Technical Data Displayed | Core Components: | Gear, Motor, Bearing, Gearbox |
Maintenance: | Convenient | Warranty: | 1 Year |
Raw Material: | Stones Rocks Ores | Color: | Customized |
High Light: | 740r/Min Stone Crusher Machine,50TPH Stone Crusher Machine,740r/Min hammer stone crusher |

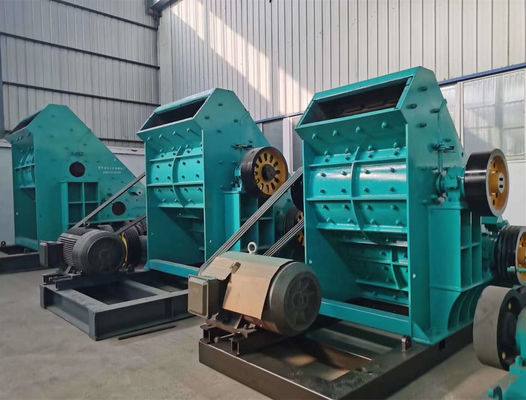

High-efficiency crushing equipment high production capacity Hammer crusher
Product Description
Hammer crusher is a commonly used crushing equipment with large crushing ratio (generally 10-25, high up to 50), high production capacity, uniform product, less powder phenomenon, low energy consumption per unit product, structure Simple, light equipment, easy operation and maintenance, etc. It is suitable for fine crushing of medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highways, and combustion.
Product Parameters
Model | Spindle Speed | Feed Granularity | Production Capacity | Power |
(r/min) | (mm) | (t/h) | (kw) | |
PCD-8010 | 740 | 400 | 30-50 | 55 |
PCD-1010 | 720 | 450 | 50-70 | 75 |
PCD-1210 | 680 | 500 | 60-90 | 90 |
PCD-1214 | 650 | 500 | 80-120 | 110 |
PCD-1416 | 620 | 500 | 100-150 | 132 |
2YPCD-1414 | 580 | 550 | 120-200 | 132-160 |
2YPCD-1514 | 580 | 550 | 150-230 | 200-220 |
2YPCD-1616 | 580 | 550 | 160-260 | 200-250 |
2YPCD-1816 | 580 | 550 | 180-300 | 220-250 |
2YPCD-2018 | 580 | 550 | 200-500 | 132x2 |
