| Keyword: | Vibrating Screen | Layer: | 1-3 |
|---|---|---|---|
| Screen Area M*2: | 2.9-14.4 | Incline Angle °: | 20 |
| Max. Feeding Size Mm: | 100-200 | Capacity Tph: | 60-780 |
| Power: | 5.5-30kw | Weight Kg: | 4265-13583 |
| Advantage: | Easy To Maintain, High Durability | Item: | Grading Machine In Coal Dressing |
| High Light: | 780TPH Ore Dressing Equipment,780TPH Small Vibrating Screen Machine,Dressing Small Vibrating Screen Machine |
||

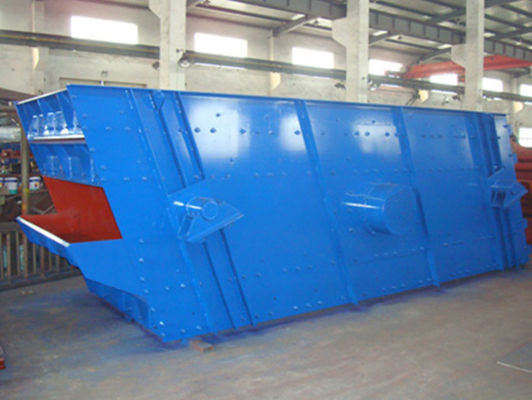

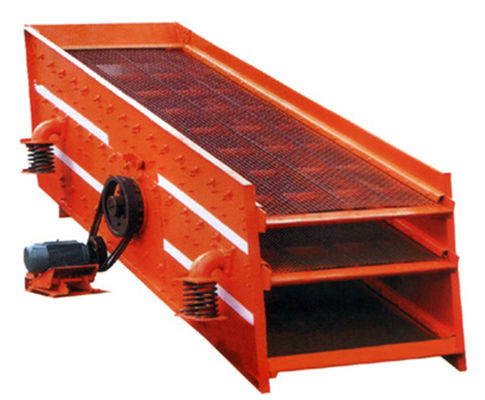

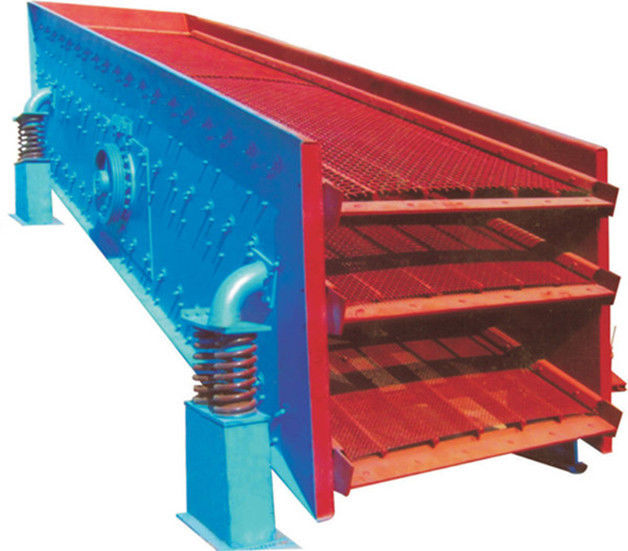

high efficiency ore dressing equipment small virbrating screen machine
Brief introduction of high efficiency small virbrating screen machine
vibrating sieves are used to separate materials into various sizes for further processing or for end use. The material is separated by passing through a vibrating “screen or meshes” which has a number of different sized according to customer’s requirements. The end products can then be used in the building and construction industries. It feature advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.
Application of high efficiency mining samll virbrating screen machine

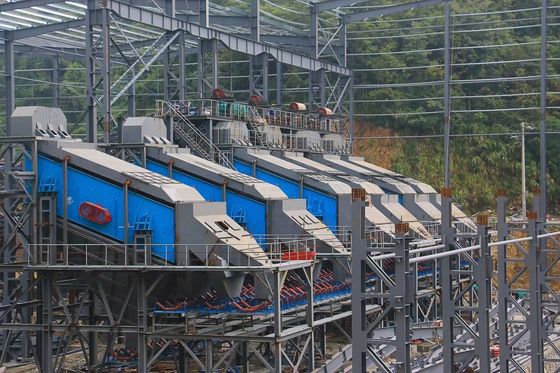

The vibrating screen with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.
Special advantages of high efficiency small vibrating screen machine from others.
A). Reliable quality certified by CE and reaches European standard.
B). Two types of vibrating screen,
C). Unique and advanced design.
D). Powerful vibrating forces, low vibrating noise
E) Easy to maintain, high durability, etc.
Working principle of high efficiency small vibrating screen machine
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
Technical specifications of high efficiency rotary virbrating screen machine
| Model | Screen | Max. Feeding Size mm | Capacity tph | Motor | Weight kg | |||
| Layer | Screen Area m*2 | Incline Angle ° | Model | Power | ||||
| YA1224 | 1 | 2.9 | 20 | 100 | 60~200 | Y132S-4 | 5.5 | 4256 |
| 2YA1224 | 2 | 5160 | ||||||
| 3YA1224 | 3 | 5320 | ||||||
| YA1236 | 1 | 4.3 | 20 | 200 | 80~240 | Y160M-4 | 11 | 4905 |
| 2YA1236 | 2 | 5311 | ||||||
| YA1530 | 1 | 4.5 | 20 | 200 | 80~240 | Y160M-4 | 11 | 4675 |
| YA1536 | 1 | 5.4 | 20 | 200 | 100~350 | Y160M-4 | 11 | 5137 |
| 2YA1536 | 2 | 5.4 | 20 | 400 | 100~350 | Y160L-4 | 15 | 5624 |
| YA1542 | 1 | 6.5 | 20 | 200 | 110~385 | Y160L-4 | 15 | 5515 |
| 2YA1542 | 2 | 6098 | ||||||
| YA1548 | 1 | 7.2 | 20 | 200 | 120~420 | Y160L-4 | 15 | 5918 |
| 2YA1548 | 2 | 6321 | ||||||
| YA1836 | 1 | 6.5 | 20 | 200 | 140~220 | Y160M-4 | 11 | 5205 |
| 2YA1836 | 2 | Y160L-4 | 15 | 5946 | ||||
| YA1842 | 1 | 7.6 | 20 | 200 | 140~490 | Y160L-4 | 15 | 5829 |
| 2YA1842 | 2 | 6437 | ||||||
| YA1848 | 1 | 8.6 | 20 | 200 | 150~525 | Y160L-4 | 15 | 6289 |
| 2YA1848 | 2 | 6624 | ||||||
| YA2148 | 1 | 10 | 20 | 210 | 180~630 | Y180M-4 | 18.5 | 9033 |
| 2YA2148 | 2 | Y180L-4 | 22 | 10532 | ||||
| YA2160 | 1 | 12.6 | 20 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 |
| 2YA2160 | 2 | Y180L-4 | 22 | 11249 | ||||
| YA2448 | 1 | 11.5 | 20 | 200 | 200~700 | Y180M-4 | 18.5 | 9834 |
| YA2460 | 1 | 14.4 | 20 | 200 | 260~780 | Y200L-4 | 30 | 12240 |
| 2YA2460 | 2 | 13583 | ||||||
