Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm

Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm
Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm

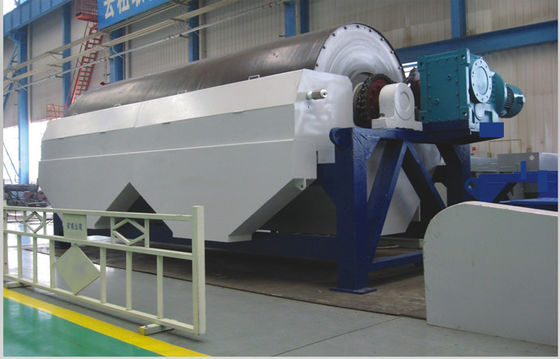

Large Image :  Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: Magnetic Separator Usage: Screening The Magnetic And Non-magnetic Material
Application: Coal, Foundry Sand, Refractory, And Other Industries Diameter(mm): 600-750
Length Of Drum(mm): 1200-1800 Granularity(mm): 1200-1800
Feed Density(%): 20-25 Power(kw): 2.2-3
Weight(kg): 1200-2045 Overall Dimensions(mm): 3350*1780*1600
High Light:

Large Handling Ore Dressing Equipment

,

Large Handling Wet Magnetic Separator

,

3mm Wet Magnetic Separator

Product Description
Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic rigidities.It is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp.The magnetic system of a magnetic separator is a compound of fine ferrite material and rare earth magnets.The average magnetic induction intensity of the surface of the cylinder is 100~600mT.

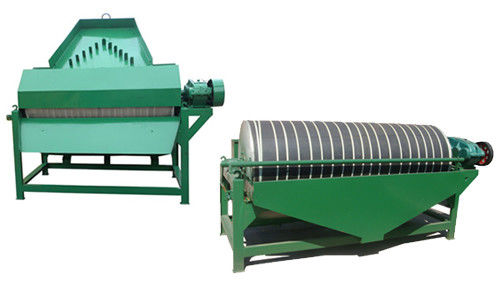

Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm 0
Main Type Sand Application of Magnetic Separator

Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore,and building material.



The permanent magnetic force tumbler is suitable for:
After medium and fine crushing, the magnetic pulley is used for eliminating the wall rock in the iron ore to improve the fineness.
To the un-deoxidized ore and send back for re-agglomeration.
To eliminate iron in the ceramic industry for improving the ceramic quality.
To eliminate iron in coal, foundry sand, refractory, and other industries.

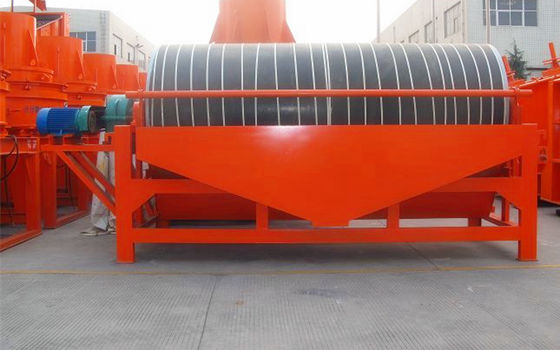

Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm 1

Features
1.simple structure;

2.Easy-open structure gives a convenient cleaning;

3.large handling;

4.easy to operate;

6.The number of axial magnetic can be adjusted in accordance with material characteristics.

7.easy to maintain.

8.This magnetic separator is suitable for processing various bulk materials and will not be blocked for its compact structure;

9.Low power;

10.It also has a disaggregating function for sticky and poor-fluidity powders;

11.A stainless steel machine and full-closed operation enable an easy clean;

12.This high gradient magnetic separator has an optimized magnetic circuit,which offers a high-intensity magnetic field for a better separating effect;

13.Magnetic separator working under high temperature.

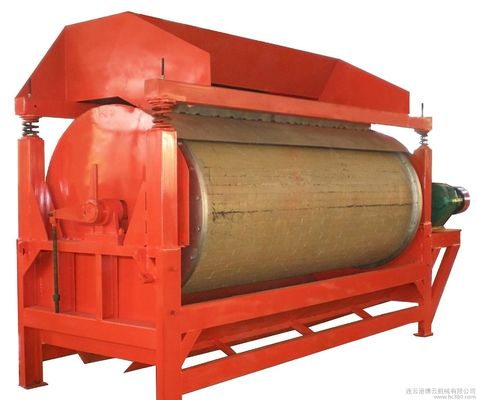

Large Handling Ore Dressing Equipment Wet Magnetic Separator Materials Below 3mm 2

Technical Parameters



Model

CTB612

CTB618

CTB712

CTB718

Diameter(mm)

Φ600

Φ600

Φ750

Φ750

Length of drum(mm)

1200

1800

1200

1800

Granularity(mm)

0-0.4

0-0.5

Feed density(%)

20-25

Capacity

Dry ore(t/h)

10-15

15-20

30-35

Pulp(m³/h)

10-15

15-20

30-35

Power(kw)

2.2

3

Weight(kg)

1200

1500

1830

2045

Overall dimensions(mm)

2550*1300*1250

3150*1300*1250

2770*1780*1600

3350*1780*1600
