| Product Name: | Shaking Table | Max.feeding Size: | 0.15-2mm |
|---|---|---|---|
| Feeding Amount: | 10-60t/d | Feeding Thickness: | 15-30% |
| Journey: | 8-22mm | Frequency: | 15-57F |
| Water Quantity: | 10-150t/d | Portrait Obliquity: | 0.92-1.4% |
| Concentrating Square: | 7.6 | Motor Power: | 1.1kw |
| High Light: | 60t/D Shaking Table Mineral Separation,57F Shaking Table Mineral Separation,60t/D Mineral Separation Equipment |
||
Product Introduction

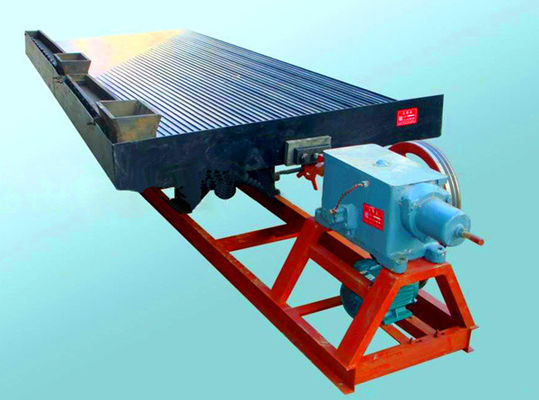

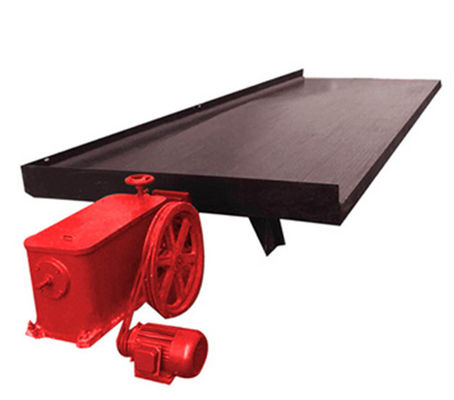

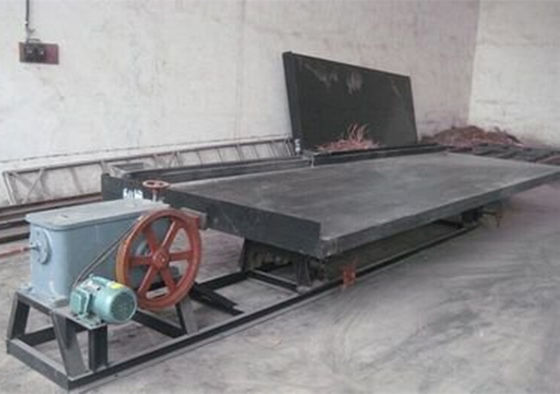

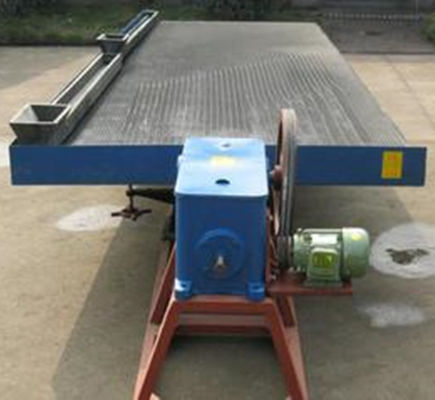

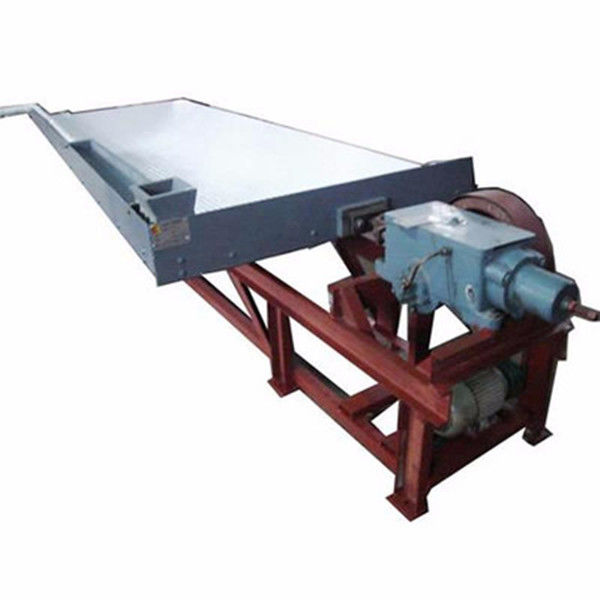

The shaking table is a gravity dressing machine used for separating fine particles. They are mainly used for various metals such as gold, silver, zinc, tungsten, iron, manganese, lead and coal and heavy metal materials. It is suitable for different grades of materials such as 2-0.5mm, coarse sand of 0.5-0.074mm, fine sand, and slime of 0.074mm. When the beneficiation shaker processes tungsten or tin metal ore materials, the effective recovery range of the equipment is 2-0.22 mm.
Features
1. High concentrating ratio, high beneficiation efficiency.
2. Simple operation. It can realize the final concentrating and final tailing only for once.
3. Compared with traditional technology, without reagent.
4. Low energy consumption; high performance.
Working principle
1.Mineral separating shaking table is Joint action of an inclined surface of bed with the aid of mechanical flagstone symmetrical reciprocal motion and thin layer incline current of water and so on.
2.It makes the ore grain on the surface of bed the loose lamination, thus enables the mineral separation according to the density different.
Technical parameters
| Name | Unit | Grit concentrator table | Fine sand concentrator table | Sludge concentrator table | |
| Dimensions | Length | MM | 4450 | 4450 | 4450 |
| Driving part width | MM | 1855 | 1855 | 1855 | |
| Concentrate part width | MM | 1546 | 1546 | 1546 | |
| Max.feeding size | MM | 2 | 0.5 | 0.15 | |
| Feeding amount | T/d | 30-60 | 44489 | 15-25 | |
| Feeding thickness | % | 25-30 | 20-25 | 15-25 | |
| Journey | MM | 16-22 | 44516 | 44424 | |
| Frequency | F | 15-48 | 48-53 | 50-57 | |
| Water quantity | T/d | 80-150 | 30-60 | 44486 | |
| Horizontal obliquity | Degree | 2.5-4.5 | 1.5-3.5 | 44198 | |
| Portrait obliquity | % | 1.4 | 0.92 | ---- | |
| Table board corner | Degree | 32-42 | 40 | 42 | |
| Concentrating square | ---- | 7.6 | 7.6 | 7.6 | |
| Table board length ratio | ---- | 2.6 | 2.6 | 2.6 | |
| Motor power | KW | 1.1 | 1.1 | 1.1 |
