Product Details:
Payment & Shipping Terms:
|
| Type: | Jaw Crusher | Application: | Rock Crusher And Stone Crusher |
|---|---|---|---|
| Motor Type: | AC Motor | Capacity(t/h): | 5-21T/h |
| Dimension(L*W*H): | PE Jaw Crusher | Weight: | 2.6T |
| Feeding Size: | 250*400mm | Maximum Feed Size: | 210mm |
| Adjusting Range Of Dischaiging Opening: | 20-80mm | Rotation Speed Of Eccentric Shaft: | 300r/min |
| Power: | 150kw | Boundary Dimension: | 1450*1315*1296mm |
| Warranty: | 12 Month | Port: | QingDao,ShangHai,TianJian |
| High Light: | 300r/Min Mini Stone Crusher Machine,21T/h Mini Stone Crusher Machine,300r/Min Stone Rock Jaw Crusher |
||
Energy Saving Factory Price Mini Small Stone Rock Jaw Crusher For Sale

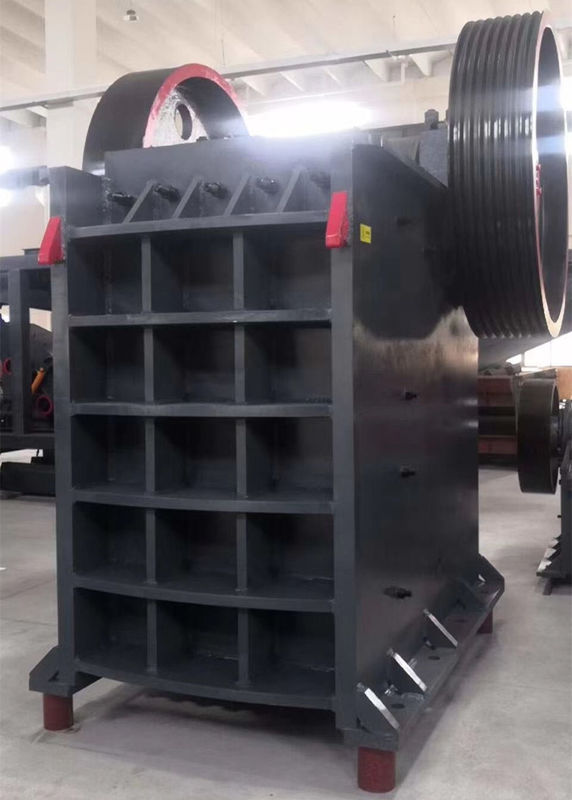

Jaw Crusher : PE Series Jaw Crusher
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.
We provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation. In recent years, to satisfy the requirement of crushing micro-carbon ferro chrome with high strength and high hardness in the industrial departments of metallurgy, mine and building, our company has specially researched and manufactured powerful jaw crusher.
Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.
| Model | Feeding size(mm) | Max feeding size(mm) | Discharging Range size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 30 | 6.5 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 55 | 10.6 |
| PE-600*900 | 600*900 | 500 | 65-180 | 80-180 | 55-75 | 15.5 |
| PE-750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 90-110 | 28 |
| PE-800*1060 | 800*1060 | 680 | 100-200 | 140-340 | 90-110 | 30 |
| PE-870*1060 | 870*1060 | 750 | 170-270 | 180-360 | 90-110 | 30.5 |
| PE-900*1060 | 900*1060 | 780 | 200-290 | 200-380 | 90-110 | 31 |
| PE-900*1200 | 900*1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
| PE-1000*1200 | 1000*1200 | 850 | 195-280 | 280-550 | 110-132 | 51 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.5 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 22 | 4.9 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 37 | 7.7 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 25-95 | 75 | 11 |
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.
