Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification

Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification
Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification

Large Image :  Multi Layer 20TPH 400MM Circular Vibrating Screen mining building Classification

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: Vibration Screen Application: Product Classification
Layer: 1-3 Max Particle Size: <400
Sieve Size(mm): 1--25 Amplitude: 2--7
Capacity: Capacity Angle(°): 15--25
Power(kw): 2.2-30 Dimension: Different Model
High Light:

400MM Circular Vibrating Screen

,

20TPH Circular Vibrating Screen

,

20TPH round vibrating screen

high-efficiency multi-layer circular vibrating screen mining classification



Vibration screen Introduction:
The circular vibrating screen causes the motion trajectory to approximate a circle, so it is simply referred to as a circular vibrating screen. The circular vibrating screen is a multi-layer, high-efficiency new vibrating screen.
The circular vibrating screen adopts the simplified eccentric shaft exciter and the eccentric block to adjust the amplitude. The material sieve has a long line and many screening specifications. It is widely used in product classification of mining, building materials, transportation, energy, chemical and other industries.

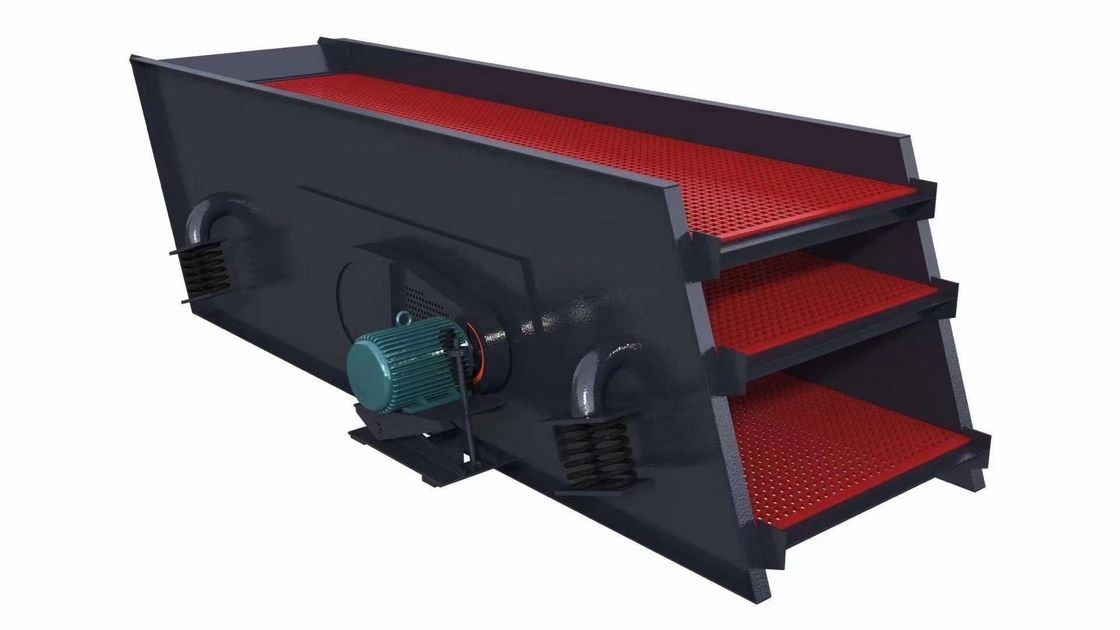

Vibrating screen 4.jpg
Performance characteristics of our vibrating screen :


The material sieve line length is long, and the screening specifications are many.
The block eccentricity is used as the exciting force, and the exciting force is strong.
The sieve beam and the screen box are connected by high-strength bolts without welding.



Model(mm) layer max particle size sieve size(mm) amplitude capacity angle(°) motor power(kw) dimension
model L*W*H
SZZ2600*1200 1 40 1--25   10--20 15--25 Y112L1-4 2.2 1370*890*330
SZZ2600*1200 2 40 1--25 6 10--20 15--25 Y112L1-4 2.2 1370*890*430
SZZ900*1800 1 40 1--25 6 20--25 15--25 Y112L1-4 2.2 2150*1358*575
SZZ2900*1800 2 40 1--25 6 20--30 15--25 Y112L2-4 3 2489*1358*770
SZZ1250*2500 1 100 5--40 2--7 150 15--20 Y1321S1-4 5.5 2762*1714*680
SZZ21250*2500 2 150 5--40 2--7 150 15--20 Y1321S1-4 5.5 2762*1714*740
SZZ1500*300 1 100 1--40 8 220 15--25 Y132M1-4 7.5 3320*1449*787
2YA1848 2 <400 5--80 8 50--260 20 Y180M-4 18.5 5120*2950*3060
3YA1860 3 <400 5--80 8 50--350 20 Y180L-4 22 6260*2990*3960
3YA2160 3 <400 5--100 6--8 100--500 20 Y200L-4 30 6270*3470*4100

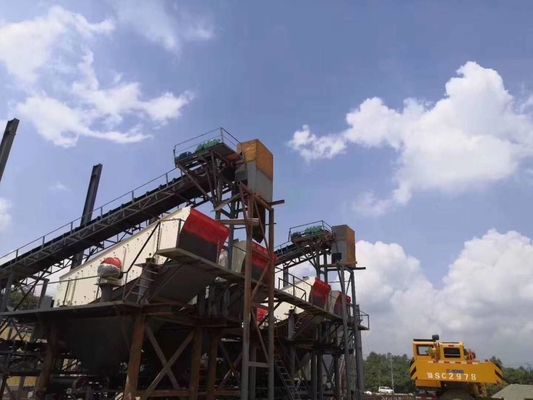

Vibrating screen 5.jpg

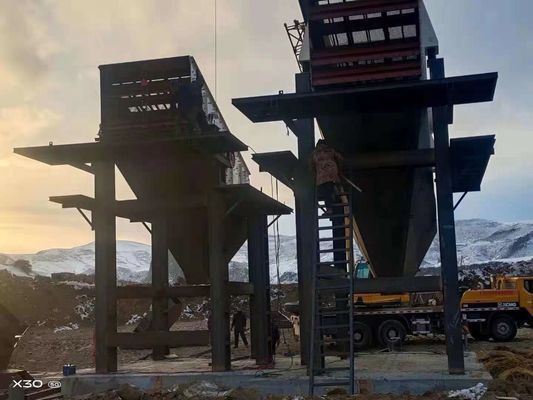

Vibrating screen 7.jpg

Vibrating screen 6.jpg
