3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment

3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment
3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment

Large Image :  3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Usage: Secondary And Fine Crushing Function: High Speed Rotation Hammer Colliding Materials
Work Rotor Diameter / Length(mm): Ф1600/1800 Rotor Speed (r/min): 1000
Inlet Size (mm): 145×270 Max. Feeding Size(mm): 50-350
Discharge Size (mm): 3-20 Capacity (t/h): 0.5-280
Motor Power (kw): 5.5-500 Weight (t): 0.5-32.4
High Light:

260Tph Hammer Stone Crusher Machine

,

3Tph Hammer Stone Crusher Machine

,

260Tph secondary jaw crusher

3-260 tph hammer crusher Secondary and fine crushing equipment

PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.

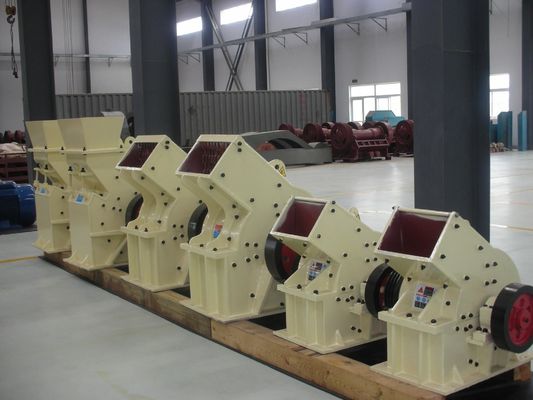

3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 0

Specification of hammer crusher

Model Work rotor diameter / length(mm) Rotor Speed (r/min) Inlet Size (mm) Max. feeding size(mm) Discharge size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Dimensions (mm)
PC-41 Ф400/175 1000 145×270 50 3 0.5 5.5 0.5 812×1056×1315
PC-44 Ф400/400 1500 145×450 100 10 5~8 7.5 0.9 744×942×878
PC-64 Ф600/400 1000 295×450 100 15 10~12 18.5 1.03 1054×972×1117
PC-66 Ф600/600 1000 295×570 100 10 12~18 45 2.14 1315×840×1501
PC-86 Ф800/600 1000 350×570 200 10 20-25 55 2.45 1515×2586×1040
PC-88 Ф800/800 1000 350×850 200 15 35-45 55 3.05 1515×2831×1040
PC-108 Ф1000/800 1000 580×850 200 13 25-40 110 6.5 3206×2210×1515
PC-1010 Ф1000/1000 1000 580×1060 200 15 40-60 132 7.59 3514×2230×1516
PC-1010 Ф1000/1000 1000 580×1060 200 10 30-50 160 7.59 3514×2230×1518
PC-1010 Ф1000/1000 1000 580×1060 200 8 25-35 185 7.59 3514×2230×1518
PC-1212 Ф1250/1250 750 650×1330 200 20 90-110 185 19.1 4475×3162×2250
PC-1414 Ф1400/1400 750 1050×1540 250 20 120-170 280 17.2 2790×2800×2310
PC-1618 Ф1600/1800 590 1200×1740 350 20 220-280 500 32.4 6256×3620×2700

Note:
1. This equipment can control the Max. Value of the discharging particle size with screen plate.
2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity

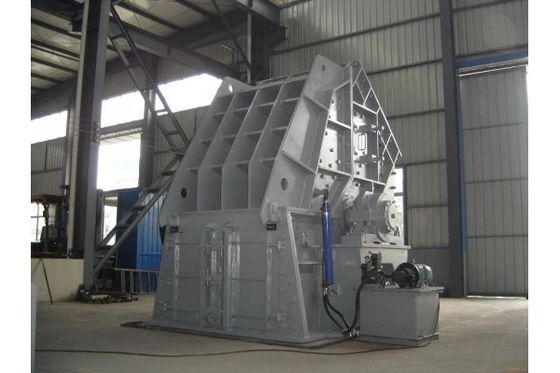

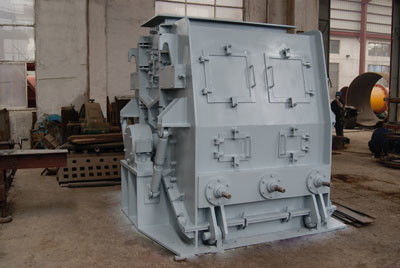

3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 13-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 2

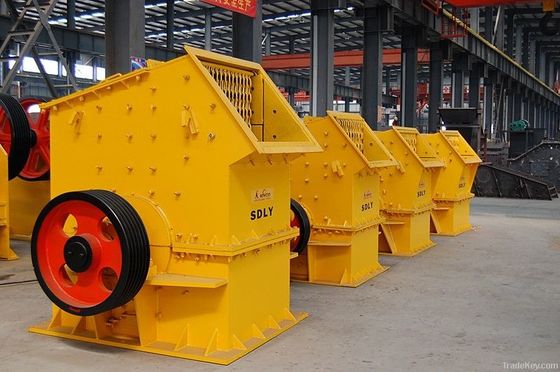

3-260 Tph Hammer Stone Crusher Machine Secondary And Fine Crushing Equipment 3
