Product Details:
Payment & Shipping Terms:
|
| Material: | Mn13Cr2, Mn18Cr2 | Heat Treatment: | Anneal, Quenching, Tempering |
|---|---|---|---|
| Testing: | Hardness, Flaw Detector Test | Usage: | Crushing |
| Color: | Required For Fixed Jaw Plate | Working Process: | Casting For Jaw Plate |
| Appearance: | Smooth | Application: | Jaw Crusher |
| Advantage: | High Impact Toughness And Wear Resistance | Product Name: | Jaw Plate |
| High Light: | Mn13Cr2 Swing Jaw Plate,Mn18Cr2 Swing Jaw Plate,Mn13Cr2 Jaw Crusher Wear Plates |
||
| High manganese jaw plate | |
| Name | Jaw plate, swing jaw plate, fixed jaw plate, toggle plate,movable jaw,fixed jaw,jaw crusher jaw |
| Material | Mn13Cr2( M1 equivalent grades),Mn18Cr2(M2 equivalent grades) |
| Control | Spectrometer chemical analysis and control while producing |
| Molding Process | Water-glass sand casting or lost form casting |
| Melting facility | Medium frequency electric furnace |
| Heat Treatment | Anneal, quenching, tempering |
| Quality Guarantee | One year against manufacturing defeat |
| Testing | Hardness, flaw detector test |
| Certificate | ISO9001~2008 Passed; BUREAU VERITAS |
| Application | Cement firms, coal fired power plant ,mining firms ,metallurgy ,quarry firms |
| Material | Chemical Composition(%) | Mechanical Property | ||||
| C | Si | Mn | Cr | Ak/cm | HB | |
| Mn13Cr2 | 1.1~1.4 | 1.7~2.2 | 12~15 | 1.7~2.2 | >140 | ≤220 |
| Mn18Cr2 | 1.1~1.4 | 1.7~2.2 | 17~19 | 1.8~2.2 | >140 | ≤230 |

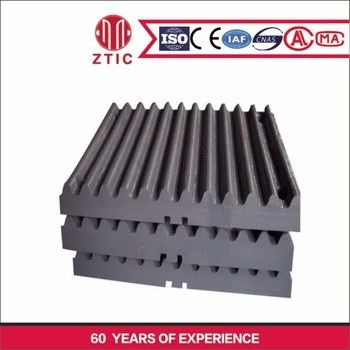

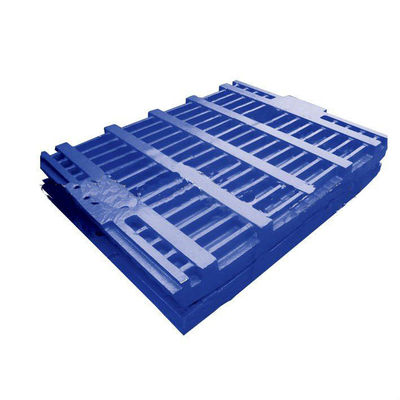

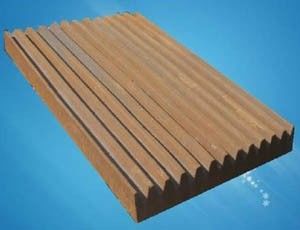

Description of jaw crusher fixed Jaw Plate
| Type | size(mm*mm*mm) | weight(kg) | tooth number |
| 100*600(swing plate) | 595*305*40 | 38 | 23 |
| 100*600(fixed plate) | 636*267*44 | 40 | 24 |
| 150*750(swing plate) | 750*480*72 | 115 | 24 |
| 150*750(fixed plate) | 805*430*60 | 100 | 25 |
| 250*1000(swing plate) | 1000*790*95 | 350 | 24 |
| 250*1000(fixed plate) | 1055*700*95 | 312 | 25 |
| 250*1200(swing plate) | 1200*790*95 | 420 | 29 |
| 250*1200(fixed plate) | 1255*700*95 | 375 | 30 |
| 150*250(swing plate) | 445*250*40 | 25 | 9 |
| 150*250(fixed plate) | 425*300*40 | 25 | 8 |
| 250*400(swing plate) | 725*400*60 | 100 | 10 |
| 250*400(fixed plate) | 635*460*70 | 80 | 11 |
| 400*600(swing plate) | 1000*600*75 | 228 | 11 |
| 400*600(fixed plate) | 960*660*75 | 216 | 12 |
| 500*750(swing plate) | 1330*750*130 | 540 | 8 |
| 500*750(fixed plate) | 1170*820*110 | 780 | 7 |
| 600*900(fixed plate) | 1240*960*150 | 735 | 9 or12 |
