30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency

30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency
30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency

Large Image :  30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Specifications (mm): 1800*2000 Feed Opening (mm): 1260*2040
Max.feeding Side Length (mm): 300-700 Capacity (t/h): 30-800
Power (kw): 37-710kw Total Weight (t): 12-83.21
Dimensions: Different Model Advantage: High-efficiency
Keyword: Crushing Machine Product Name: Impact Crusher
High Light:

800 Tph Stone Crusher Machine

,

30Tph Stone Crusher Machine

,

800Tph impact stone crusher

30-800 tph high-efficiency low cost crushing machine Impact crusher

Impact crusher is a new type of high-efficiency crushing machine with the features of small size, simple structure, large crushing ratio.

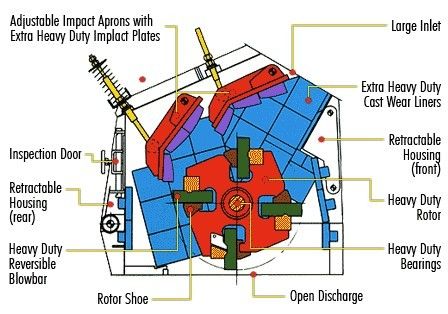

30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 0

Features
Seamless link, easy repair, low cost, reliable operation.
High impact resistance, wear resistance, big impact force.
Low wear rate, high comprehensive benefits.

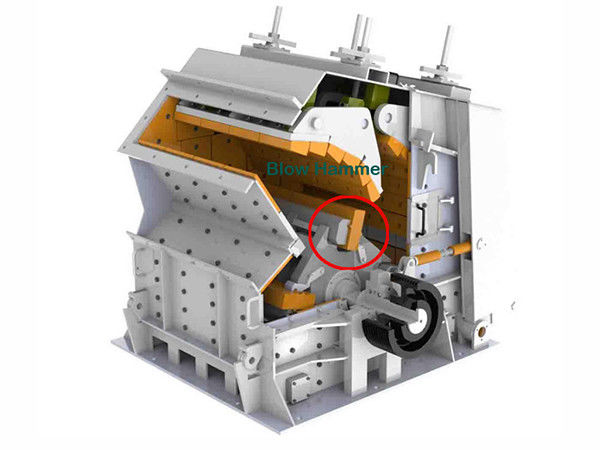

30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 1

Technical Parameters

Model Specifications
(mm)
Feed opening
(mm)
Max.feeding side length
(mm)
Capacity
(t/h)
Power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180×2720×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 700 600-800 630-710 83.21 4400×3866×4009

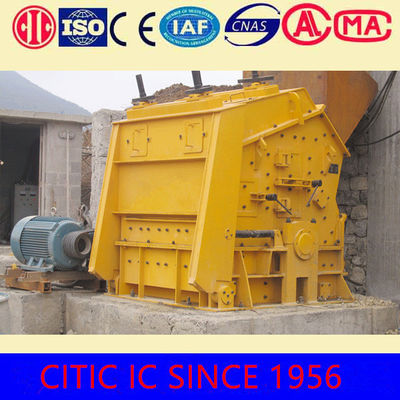

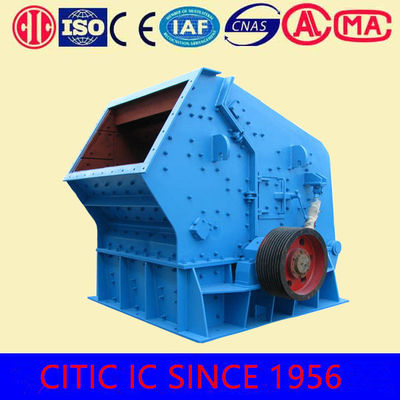

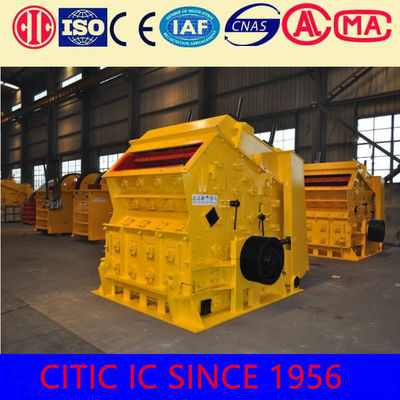

30-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 230-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 330-800 Tph Stone Crusher Machine Impact Crusher High Efficiency 4
