110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption

110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption
110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption

Large Image :  110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: C Jaw Crusher Keyword: Jaw Crusher
Inlet Size (mm): 1800*1500 Discharge Gap CSS (mm): 62-300
Throughput (t/h): 185-1300 Power (kW): 110-250
Weight (t): 23-90 Advantage: High Throughput
Crushing Material: Mining Ore The Machines Classification: Crushing Equipment
High Light:

250 Tph C Series Jaw Crusher

,

110Tph C Series Jaw Crusher

,

250Tph jaw crusher plant

110-250 tph high throughput low energy consumption C series Jaw Crusher

C series Jaw Crusher

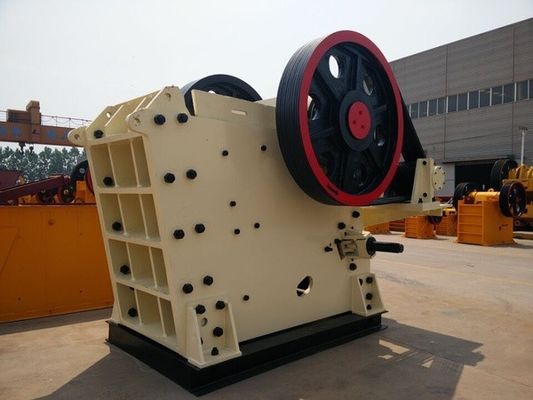

C series Jaw Crusher is is a jaw crusher with high throughput, low energy consumption, reliable structure and easy maintenance which is a preferred primary crusher for various rocks.

110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 0

Technical Feature



1. This is new technology has the features of excellent motion characteristics, special chamber design which saves more than 10% energy consumption and has more than 15% bigger throughput.

2. Unique crushing chamber design makes the availability of jaw plate much higher. Jaw plate can be switched four times that achieves evenly attrition. This advances the material availability and prolongs service life.

3. The teeth on jaw plate in crushing chamber faces to faces (swing jaw plate and fixed jaw plate), which is good for crushing hard materials.

4. The structure design of adjustable transmission angle makes higher capacity in the condition of same discharge outlet.

5. Fixed jaw plate and swing jaw plate can be changed for each other. This design will save user’s spare consuption and the assembly is more convenient.

6. The hydraulic adjustment of double-jack for discharge outlet is convenient and labor saving.

7. Swing jaw and main frame can be disassembled easily which is convenient for transportation.

110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 1110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 2110-250 Tph C Series Jaw Crusher High Throughput Low Energy Consumption 3

Model

Number

Inlet Size

(mm)

Discharge Gap CSS

(mm)

Throughput

(t/h)

Power

(kW)

Weight

(t)

C1008 1020×800 65-250 185-500 110 23
C1210 1200×1050 75-300 270-810 132 33
C1412 1400×1200 95-300 390-950 160 55
C1615 1610×1500 115-300 520-1150 220 84
C1815 1800×1500 125-300 630-1300 250 90
