120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

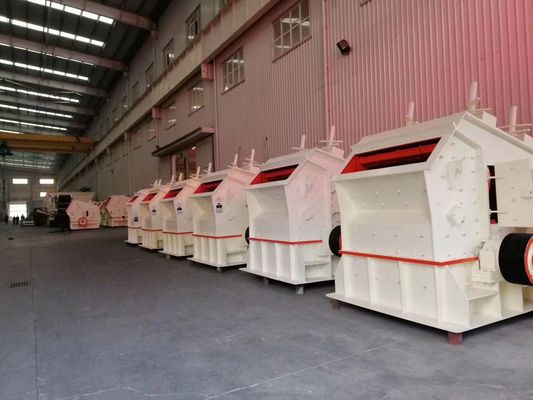

120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing

120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing
120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing 120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing 120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing

Large Image :  120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing

Product Details:
Place of Origin: Henan, China
Brand Name: CITICIC
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: $5,000.00 - $100,000.00 / Piece
Packaging Details: simple package for CITICIC 30-550TPH PFQ Series Vortex Strong Impact Crusher
Supply Ability: 2000 Piece/Pieces per Year
Detailed Product Description
Name: Impact Crusher Model: PF1315
Max Input Size (mm): 350 Capacity (t/h): 120-250
Power (Kw): 200 Condition: New
Motor Type: AC Motor Warranty: 12 Months
High Light:

250 T/H Impact Rock Crusher

,

120T/H Impact Rock Crusher

,

250T/H secondary impact crusher

High Capacity Construction Quarry Stone Impact Crusher For Ore Limestone Crushing



Product Description

Impact crusher is an important equipment for secondary crushing. It is widely used in mining, transportation, construction and chemical industry. PF series impact crusher can crushing many different kinds of materials strength less than 360 Mpa, such as limestone, gypsum, concrete, etc.

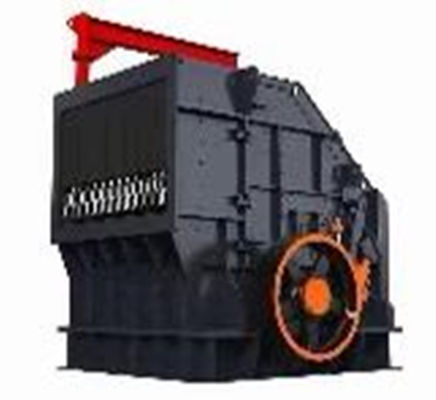

120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing 0

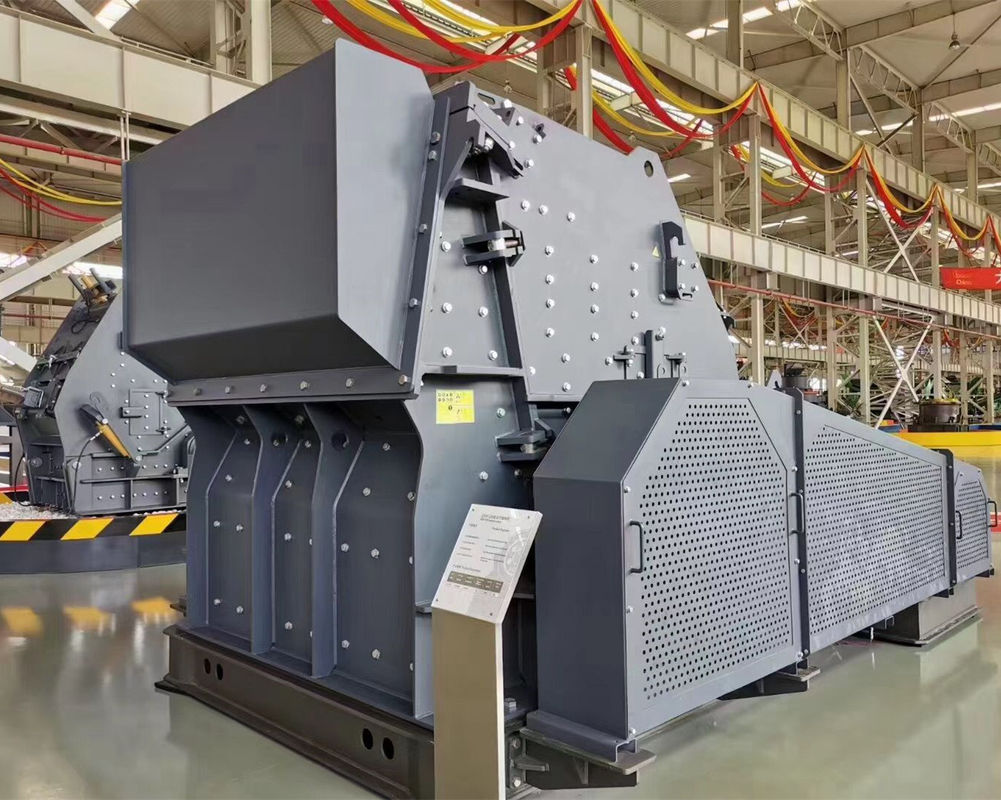

120-250 T/H Quarry Stone Impact Rock Crusher Secondary Crushing 1

Model
Rotor size
(mm)
Feed opening
(mm)
Max Input size (mm)
Capacity
(t/h)
Power
(Kw)
Weight
(Ton)
Dimension
L*W*H(mm)
PF0807
Φ850*700
400*730
200
15-30
45
8.13
2210*1490*2670
PF1007
Φ1000*700
400*730
250
15-60
55
9.8
2440*1580*2672
PF1010
Φ1000*1050
400*1080
300
50-90
75
12.8
2650*2150*2900
PF1210
Φ1250*1050
400*1080
300
70-130
110
17
2800*2150*2900
PF1214
Φ1250*1400
400*1430
300
90-180
132
20.8
2850*2400*2900
PF1315
Φ1320*1500
860*1520
350
120-250
200
24.8
3100*2800*3160
PF1318
Φ1320*1500
880*2000
350
150-260
250
26.8
3100*3210*2613
PF1320
Φ1320*2000
860*2030
500
160-350
280
34
3320*3218*2613
PF1520
Φ1512*2000
1315*2040
750
350-450
450
44
4138*3422*3649
PF1620
Φ1612*2000
1315*2040
750
400-600
500
47
4236*3572*3735
PF1820
Φ1800*2000
1620*2040
750
550-800
630
66
4471*3250*4008

Working principle


When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor
where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly.
Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
